Plan Number: 86706

  • 26337 Total Living Area
  • 6800 Lower Level
  • 5477 Main Level
  • 6062 Upper Level
  • 15 Bedrooms
  • 13 Full Bath(s)
  • 5 Car Garage
  • 180' Wide x 192' Deep
Available Foundation Types:
  • Basement

Order Code: 00WEB

  • PDF File: $2,495.00
  • 5 Sets: $2,395.00
  • 5 Sets plus PDF File: $2,645.00
  • CAD File: $2,495.00
  • CAD File: $3,195.00
    Unlimited Build License issued on CAD File orders.
  • Right Reading (True) Reverse: $195.00
    All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
  • Additional Sets: $165.00

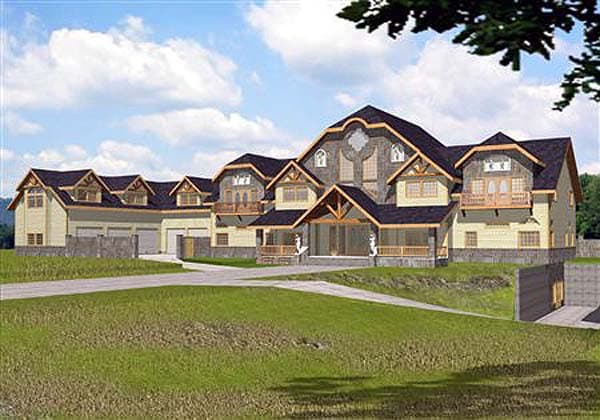

Plan Number 86706 | Order Code: 00WEB | Elevation

Reverse Plan

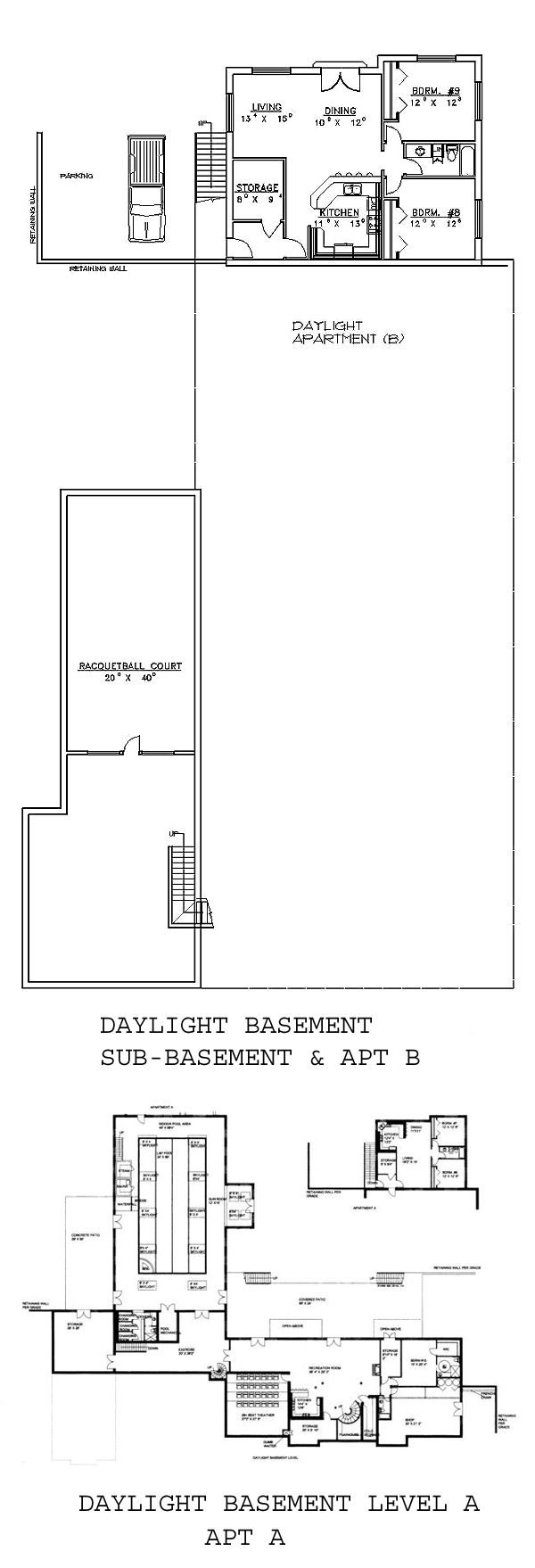

Plan Number 86706 | Order Code: 00WEB | Lower Floor Plan

Reverse Plan

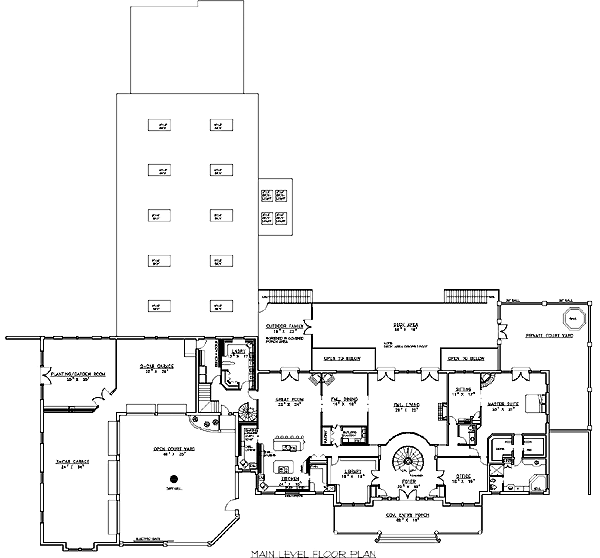

Plan Number 86706 | Order Code: 00WEB | First Floor Plan

Reverse Plan


Plan Number 86706 | Order Code: 00WEB | Second Floor Plan

Reverse Plan

Plan Number 86706 Specifications:

  • Total Living Area: 26337
  • Lower Living Area: 6800
  • Main Living Area: 5477
  • Upper Living Area: 6062
  • Garage Area: 2852
  • Garage Type: Attached
  • Garage Bays: 5
  • House Width: 180'
  • House Depth: 192'
  • Number of Stories: 2
  • Bedrooms: 15
  • Full Baths: 13
  • Primary Roof Pitch: 0
  • Roof Framing: Unknown
  • Porch: 1036 sq ft
  • Formal Dining Room: Yes
  • FirePlace: Yes
  • 1st Floor Master: Yes

Available Foundation Types:

  • Basement

Plan Number 86706 Plan Pricing:

  • PDF File: $2,495.00
  • 5 Sets: $2,395.00
  • 5 Sets plus PDF File: $2,645.00
  • PDF File Unlimited Build: $3,195.00
  • CAD File: $2,495.00
  • CAD File: $3,195.00
    Unlimited Build License issued on CAD File orders.
  • Right Reading (True) Reverse: $195.00
    All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
  • Additional Sets: $165.00

Main Level 5477 Sq. Ft.
Live-in/Upper Level 6062 Sq. Ft.
Daylight/Raquetball 6800 Sq. Ft.
Pool Area 5647 Sq. Ft.
Apartment A And B 2351 Sq. Ft.
Main Garage/Shop 2852 Sq. Ft.
Lower Shop 828 Sq. Ft.
