Plan Number: 100874

  • 2 Car Garage
  • 38'0" Wide x 40'0" Deep
Available Foundation Types:
  • Slab

Order Code: 00WEB

  • PDF File: $615.00
  • 1 Set: $240.00
  • 5 Sets plus PDF File: $405.00
  • CAD File: $695.00
  • CAD File: $770.00
    Unlimited Build License issued on CAD File orders.
  • Right Reading (True) Reverse: $50.00
    All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
  • Additional Sets: $20.00

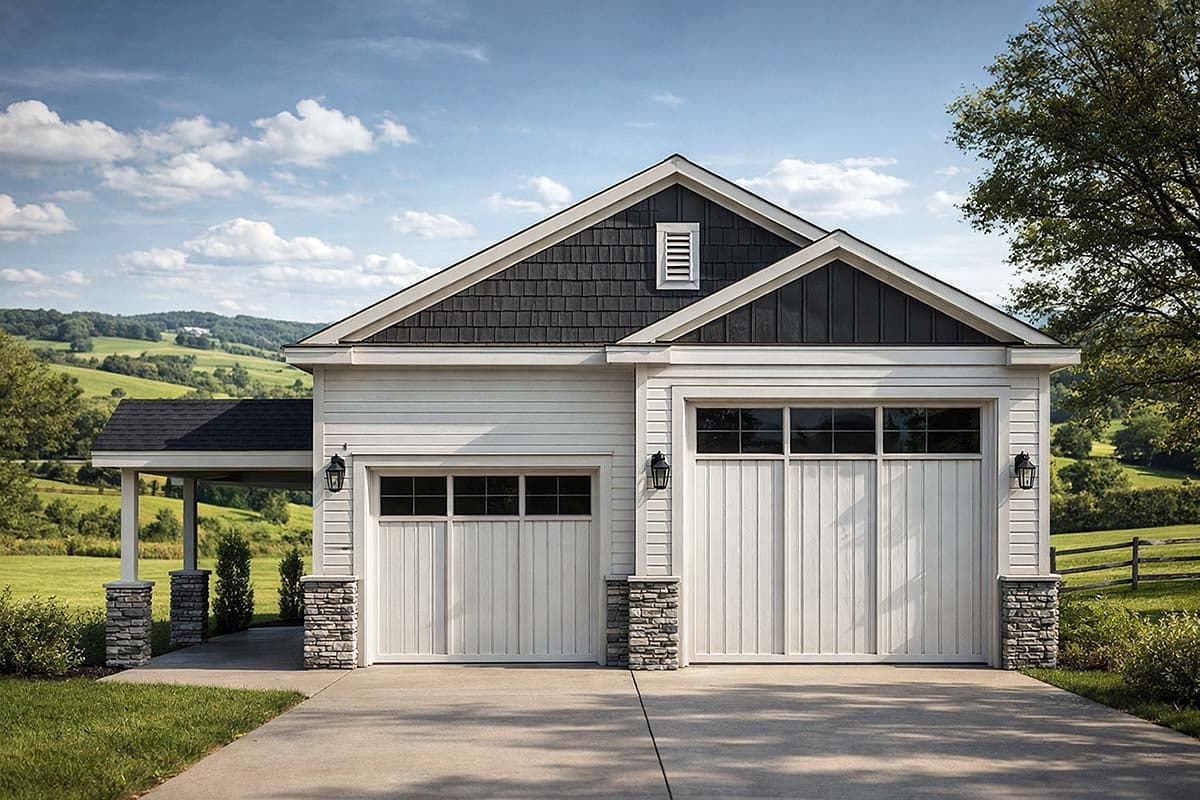

Plan Number 100874 | Order Code: 00WEB | Elevation

Reverse Plan


Plan Number 100874 | Order Code: 00WEB | First Floor Plan

Reverse Plan

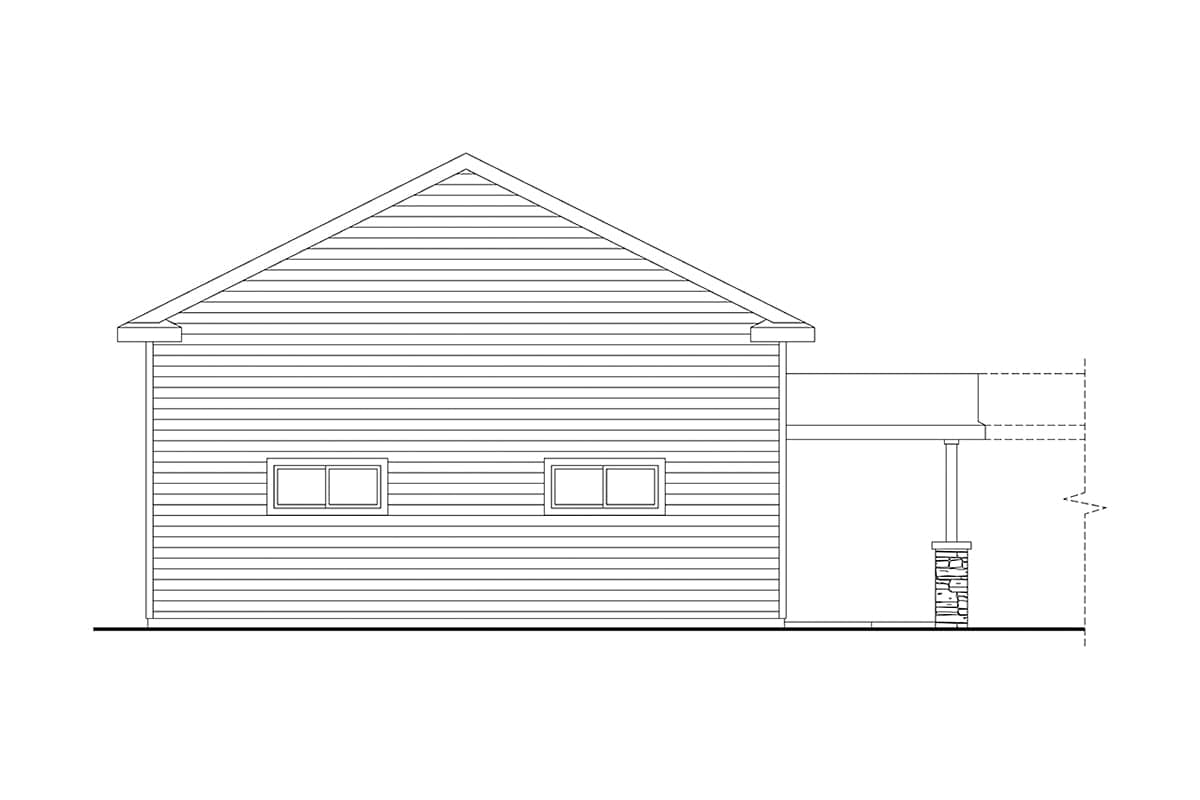

Plan Number 100874 | Order Code: 00WEB | Rear Elevation

Plan Number 100874 Specifications:

  • Garage Area: 1158
  • Garage Type: Detached
  • Garage Bays: 2
  • House Width: 38'0"
  • House Depth: 40'0"
  • Number of Stories: 1
  • Max Ridge Height: 22'4" from Front Door Floor Level
  • Primary Roof Pitch: 6:12
  • Roof Load: 30 psf
  • Roof Framing: Truss
  • Porch: 56 sq ft
  • Main Ceiling Height: 14'

Available Foundation Types:

  • Slab

Plan Number 100874 Plan Pricing:

  • PDF File: $615.00
  • 1 Set: $240.00 **
  • 5 Sets plus PDF File: $405.00
  • CAD File: $695.00
  • CAD File: $770.00
    Unlimited Build License issued on CAD File orders.
  • Right Reading (True) Reverse: $50.00
    All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
  • Additional Sets: $20.00

** 1 Set order does not include a License-To-Build. For bidding purposes only. Customer can upgrade order within 90 days.

*Garage doors are 9' wide x 9' tall & 12' wide x 12' tall

Plan Number 100874 | Order Code: 00WEB | Specifications and Pricing
COOLhouseplans.com
800-482-0464

Plan Modifications

Receive a FREE modification estimate:

1) Please Email Us your changes. (Itemized list of changes with details)

Plan Number 100874 | Order Code: 00WEB | Specifications and Pricing
COOLhouseplans.com
800-482-0464

COPYRIGHT NOTICE. It is illegal to build this plan without a legally obtained set of plans. It is illegal to copy or redraw these plans. Violation of U.S. copyright laws are punishable with fines of up to $200,000. After the purchase of plans, changes may be made by a qualified professional.
