Plan Number: 43248

  • 5100 Total Living Area
  • 1348 Lower Level
  • 2468 Main Level
  • 1286 Upper Level
  • 4 Bedrooms
  • 4 Full Bath(s)
  • 2 Half Bath(s)
  • 3 Car Garage
  • 89'6" Wide x 76'6" Deep
Available Foundation Types:
  • Basement

Order Code: 00WEB

  • PDF File: $4,325.00
  • CAD File: $4,670.00
  • Right Reading (True) Reverse: $875.00
    All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.

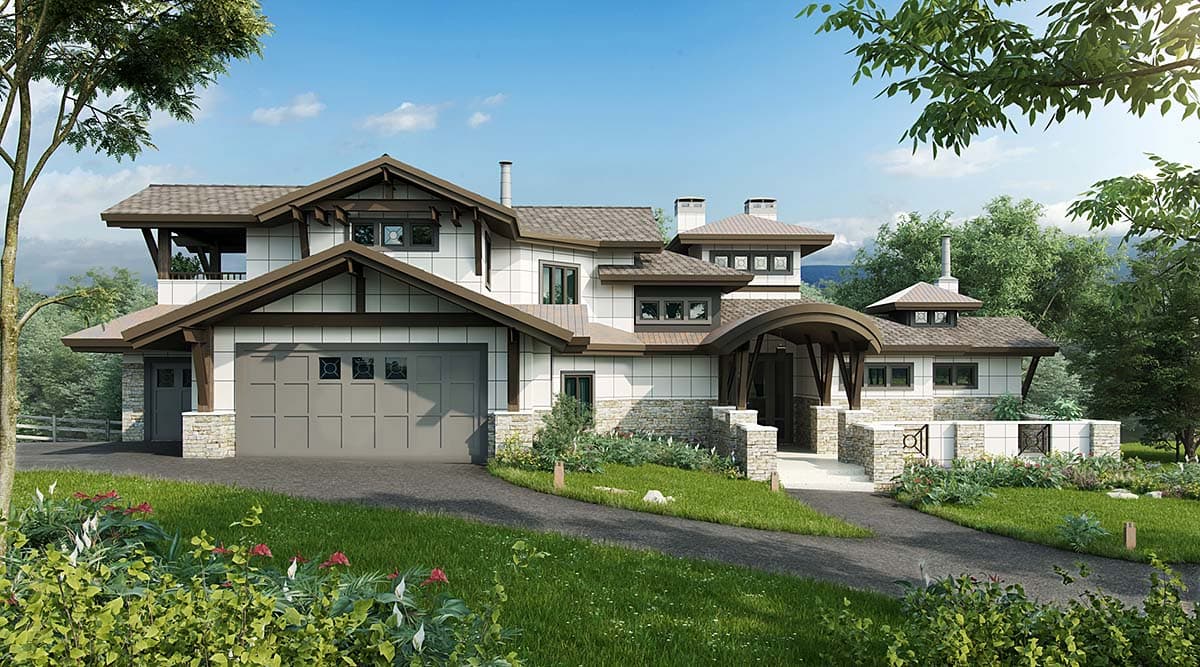

Plan Number 43248 | Order Code: 00WEB | Elevation

Reverse Plan


Plan Number 43248 | Order Code: 00WEB | Lower Floor Plan

Reverse Plan

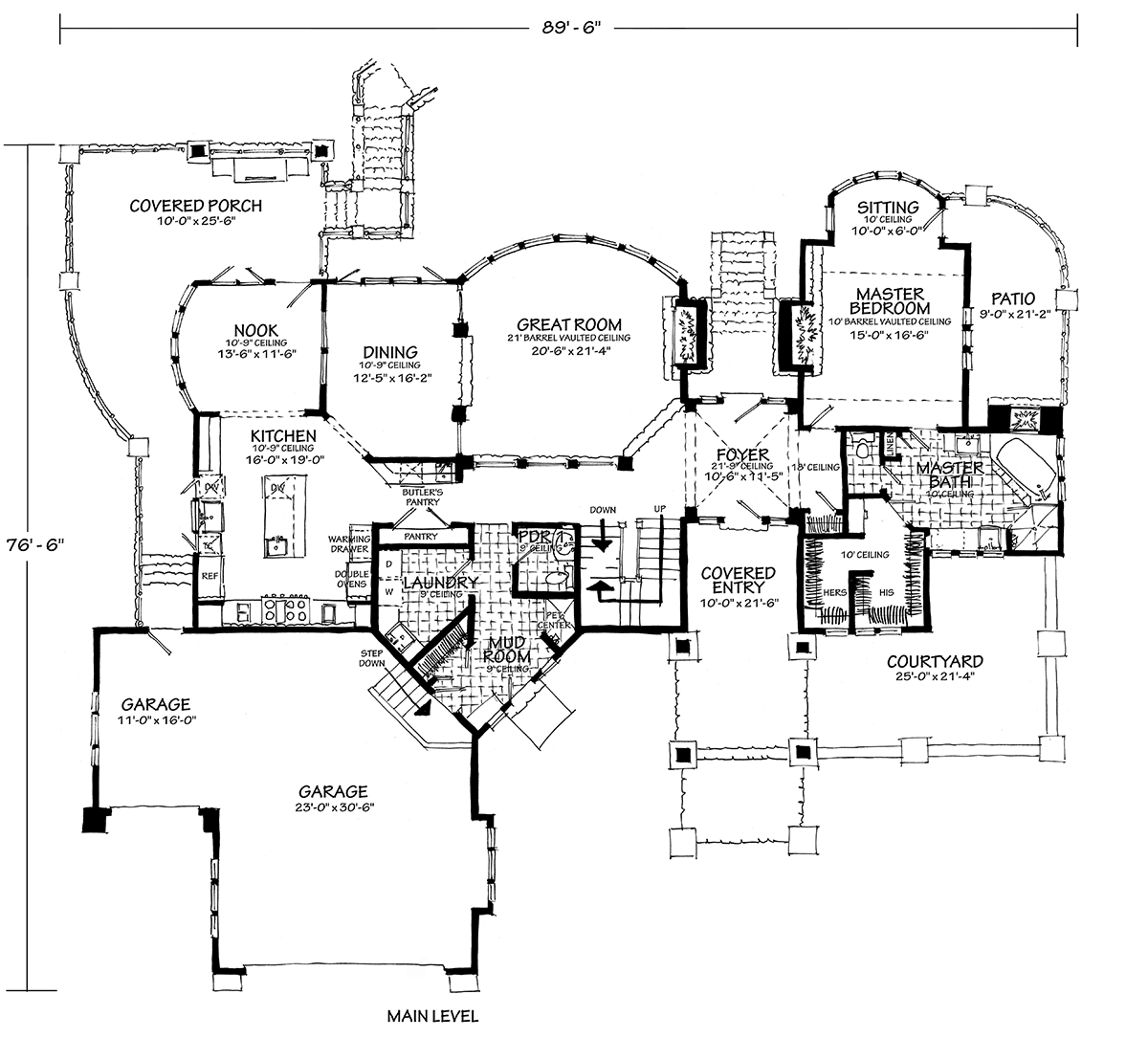

Plan Number 43248 | Order Code: 00WEB | First Floor Plan

Reverse Plan


Plan Number 43248 | Order Code: 00WEB | Second Floor Plan

Reverse Plan


Plan Number 43248 | Order Code: 00WEB | Rear Elevation

Plan Number 43248 Specifications:

  • Total Living Area: 5100
  • Lower Living Area: 1348
  • Main Living Area: 2468
  • Upper Living Area: 1286
  • Garage Area: 885
  • Garage Type: Attached
  • Garage Bays: 3
  • House Width: 89'6"
  • House Depth: 76'6"
  • Number of Stories: 2
  • Bedrooms: 4
  • Full Baths: 4
  • Half Baths: 2
  • Max Ridge Height: 26'9" from Front Door Floor Level
  • Primary Roof Pitch: 0
  • Roof Framing: Truss and/or Stick
  • Porch: 460 sq ft
  • Formal Dining Room: Yes
  • FirePlace: Yes
  • 1st Floor Master: Yes
  • Main Ceiling Height: 10'

Available Foundation Types:

  • Basement

Plan Number 43248 Plan Pricing:

  • PDF File: $4,325.00
  • CAD File: $4,670.00
  • Right Reading (True) Reverse: $875.00
    All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.

If making plan modifications, the AutoCAD or DWG file has to be purchased.

Plan Number 43248 | Order Code: 00WEB | Specifications and Pricing
COOLhouseplans.com
800-482-0464

Plan Modifications

Receive a FREE modification estimate in one of 3 ways. Our modification team is ready to help you adjust any plan to fit your needs. The ReDesign process is simple and estimates are free!

1. Complete this On-Line Request Form

2. Print, complete and fax this PDF Form to us at 1-800-675-4916.

3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.

Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.

We Work Fast!

When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!

We look forward to hearing from you!

Start today planning for tomorrow!

Plan Number 43248 | Order Code: 00WEB | Specifications and Pricing
COOLhouseplans.com
800-482-0464

COPYRIGHT NOTICE. It is illegal to build this plan without a legally obtained set of plans. It is illegal to copy or redraw these plans. Violation of U.S. copyright laws are punishable with fines of up to $200,000. After the purchase of plans, changes may be made by a qualified professional.
