Plan Number: 43704

  • 4320 Total Living Area
  • 906 Main Level
  • 1932 Upper Level
  • 10 Bedrooms
  • 10 Full Bath(s)
  • 2 Car Garage
  • 40'0 Wide x 54'8 Deep
Available Foundation Types:
  • Crawlspace

Order Code: 00WEB

  • 1 Set: $1,925.00
  • 5 Sets plus PDF File: $2,875.00
  • CAD File: $5,350.00
    Unlimited Build License issued on CAD File orders.
  • Right Reading (True) Reverse: $525.00
    All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
  • Additional Sets: $80.00

Plan Number 43704 | Order Code: 00WEB | Elevation

Reverse Plan


Plan Number 43704 | Order Code: 00WEB | First Floor Plan

Reverse Plan


Plan Number 43704 | Order Code: 00WEB | Second Floor Plan

Reverse Plan

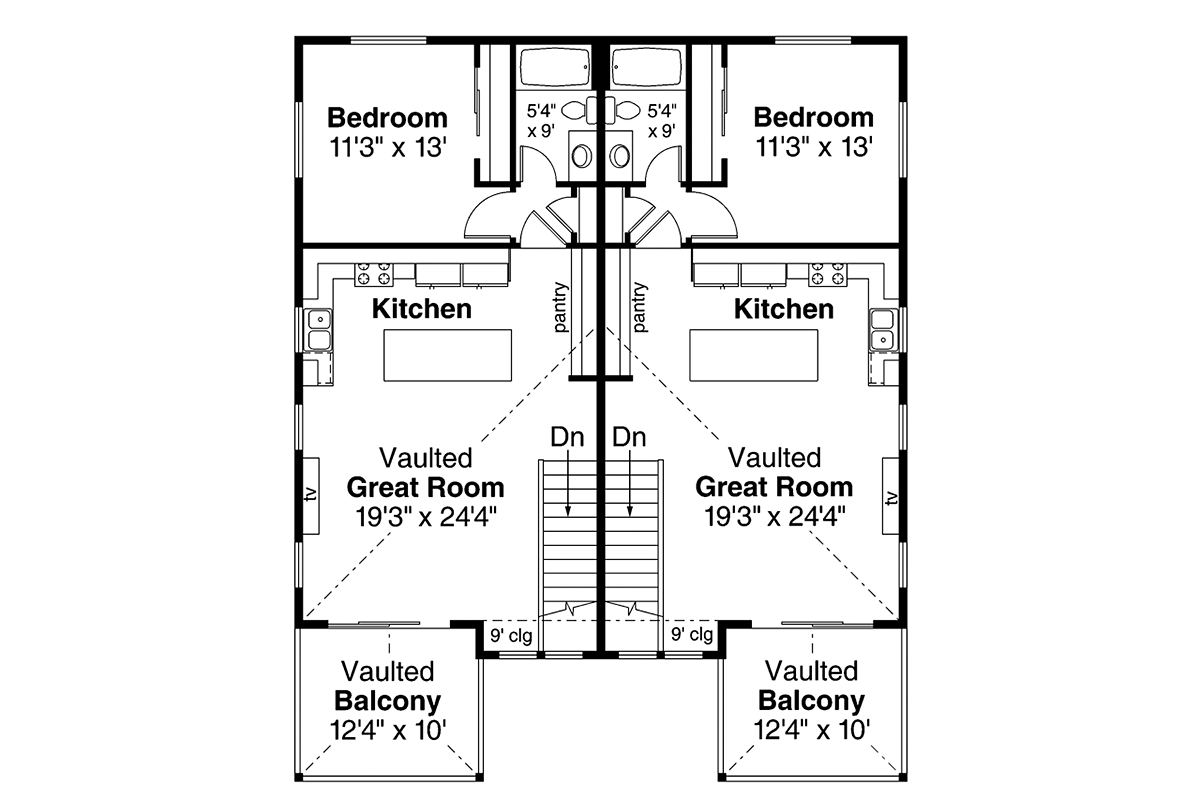

Plan Number 43704 | Order Code: 00WEB | Third Floor Plan

Reverse Plan

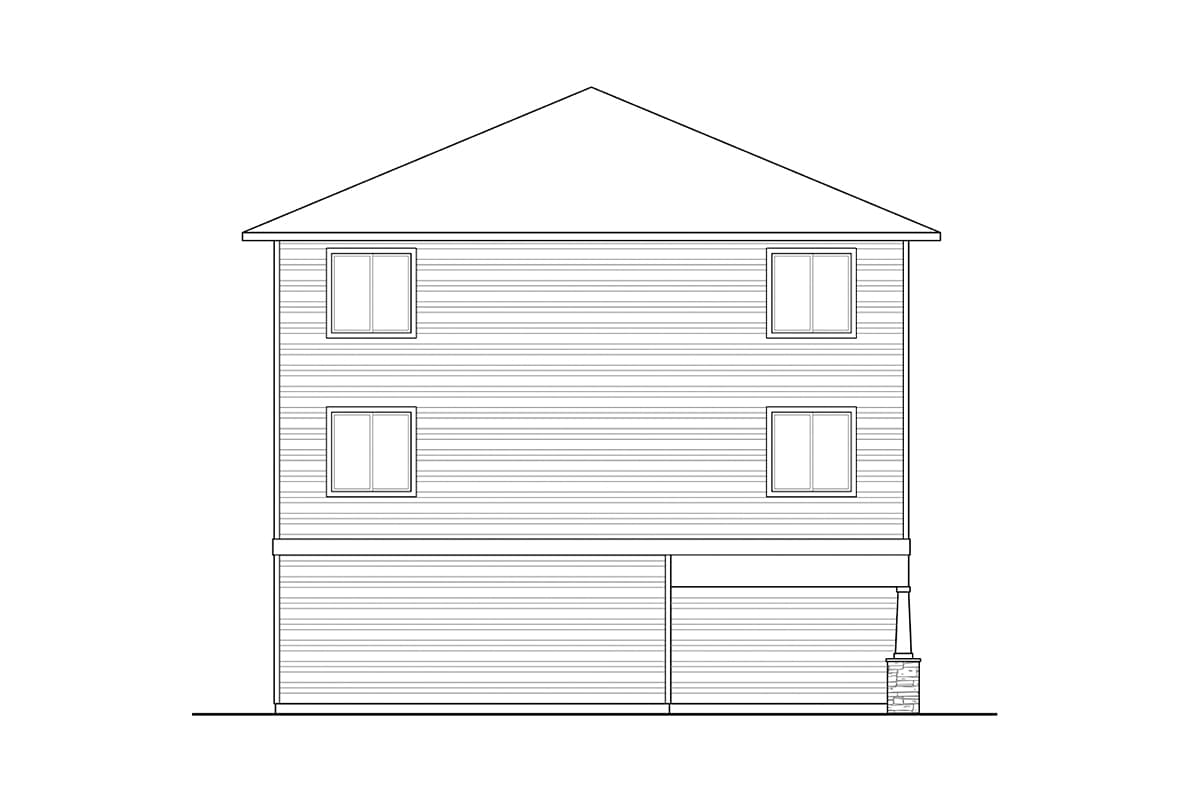

Plan Number 43704 | Order Code: 00WEB | Rear Elevation

Plan Number 43704 Specifications:

  • Total Living Area: 4320
  • Main Living Area: 906
  • Upper Living Area: 1932
  • Garage Area: 600
  • Garage Type: Attached
  • Garage Bays: 2
  • House Width: 40'0
  • House Depth: 54'8
  • Number of Stories: 3
  • Bedrooms: 10
  • Full Baths: 10
  • Max Ridge Height: 39'7 from Front Door Floor Level
  • Primary Roof Pitch: 5:12
  • Roof Load: 25 psf
  • Roof Framing: Truss and/or Stick
  • Main Ceiling Height: 9'
  • Upper Ceiling Height: 9'

Available Foundation Types:

  • Crawlspace

Plan Number 43704 Plan Pricing:

  • 1 Set: $1,925.00 **
  • 5 Sets plus PDF File: $2,875.00
  • PDF File Unlimited Build: $4,850.00
  • CAD File: $5,350.00
    Unlimited Build License issued on CAD File orders.
  • Right Reading (True) Reverse: $525.00
    All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
  • Additional Sets: $80.00

** 1 Set order does not include a License-To-Build. For bidding purposes only. Customer can upgrade order within 90 days.

Unit A
1st Floor: 453 sq ft
2nd Floor: 966 sq ft
3rd Floor: 741 sq ft
Garage: 300 sq ft
Bedrooms: 5
Full Baths: 5
Garage Bays: 1

Unit B
1st Floor: 453 sq ft
2nd Floor: 966 sq ft
3rd Floor: 741 sq ft
Garage: 300 sq ft
Bedrooms: 5
Full Baths: 5
Garage Bays: 1

Plan Number 43704 | Order Code: 00WEB | Specifications and Pricing
