Family Home Plans - Better Living By Good Design

Plan Number 45121 | Order Code: 00WEB

COOLhouseplans.com
800-482-0464


Plan Number: 45121

  • 881 Total Living Area
  • 139 Main Level
  • 742 Upper Level
  • 2 Bedrooms
  • 1 Full Bath(s)
  • 2 Car Garage
  • 34'8 Wide x 32' Deep
Available Foundation Types:
  • Stem Wall Slab

Order Code: 00WEB

  • 5 Sets: $450.00
  • 8 Sets: $505.00
  • PDF File: $500.00
  • CAD File: $600.00
  • Materials List: $70.00
  • Right Reading (True) Reverse: $75.00
    All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
  • Additional Sets: $25.00

Plan Number 45121 | Order Code: 00WEB | Elevation

Reverse Plan


Plan Number 45121 | Order Code: 00WEB | First Floor Plan

Reverse Plan

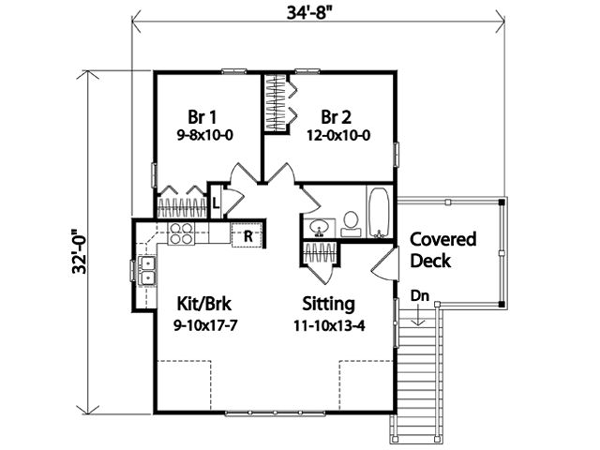

Plan Number 45121 | Order Code: 00WEB | Second Floor Plan

Reverse Plan

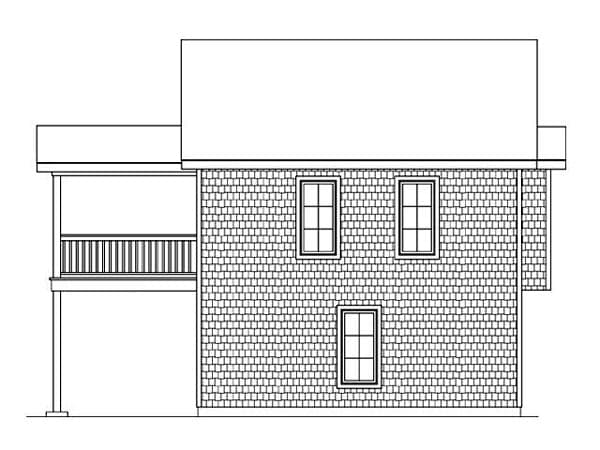

Plan Number 45121 | Order Code: 00WEB | Rear Elevation

Plan Number 45121 Specifications:

  • Total Living Area: 881
  • Main Living Area: 139
  • Upper Living Area: 742
  • Garage Area: 585
  • Garage Type: Detached
  • Garage Bays: 2
  • House Width: 34'8
  • House Depth: 32'
  • Number of Stories: 2
  • Bedrooms: 2
  • Full Baths: 1
  • Max Ridge Height: 26' from Front Door Floor Level
  • Primary Roof Pitch: 5:12
  • Roof Load: 40 psf
  • Roof Framing: Truss
  • Porch: 105 sq ft
  • Main Ceiling Height: 8'
  • Upper Ceiling Height: 8'

Available Foundation Types:

  • Stem Wall Slab

Plan Number 45121 Plan Pricing:

  • 5 Sets: $450.00
  • 8 Sets: $505.00
  • PDF File: $500.00
  • CAD File: $600.00
  • Materials List: $70.00
  • Right Reading (True) Reverse: $75.00
    All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
  • Additional Sets: $25.00

1- 16x7 Overhead Door

Plan Number 45121 | Order Code: 00WEB | Specifications and Pricing
COOLhouseplans.com
800-482-0464

Plan Modifications

Receive a FREE modification estimate in one of 3 ways. Our modification team is ready to help you adjust any plan to fit your needs. The ReDesign process is simple and estimates are free!

1. Complete this On-Line Request Form

2. Print, complete and fax this PDF Form to us at 1-800-675-4916.

3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.

Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.

We Work Fast!

When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!

We look forward to hearing from you!

Start today planning for tomorrow!

Plan Number 45121 | Order Code: 00WEB | Specifications and Pricing
COOLhouseplans.com
800-482-0464

COPYRIGHT NOTICE. It is illegal to build this plan without a legally obtained set of plans. It is illegal to copy or redraw these plans. Violation of U.S. copyright laws are punishable with fines of up to $200,000. After the purchase of plans, changes may be made by a qualified professional.
