Plan Number: 52042

  • 2804 Total Living Area
  • 2045 Main Level
  • 759 Upper Level
  • 3 Bedrooms
  • 3 Full Bath(s)
  • 1 Half Bath(s)
  • 3 Car Garage
  • 108'0 Wide x 64'4 Deep
Available Foundation Types:
  • Walkout Basement

Order Code: 00WEB

  • PDF File: $1,495.00
  • CAD File: $1,695.00
  • Right Reading (True) Reverse: $200.00
    All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.

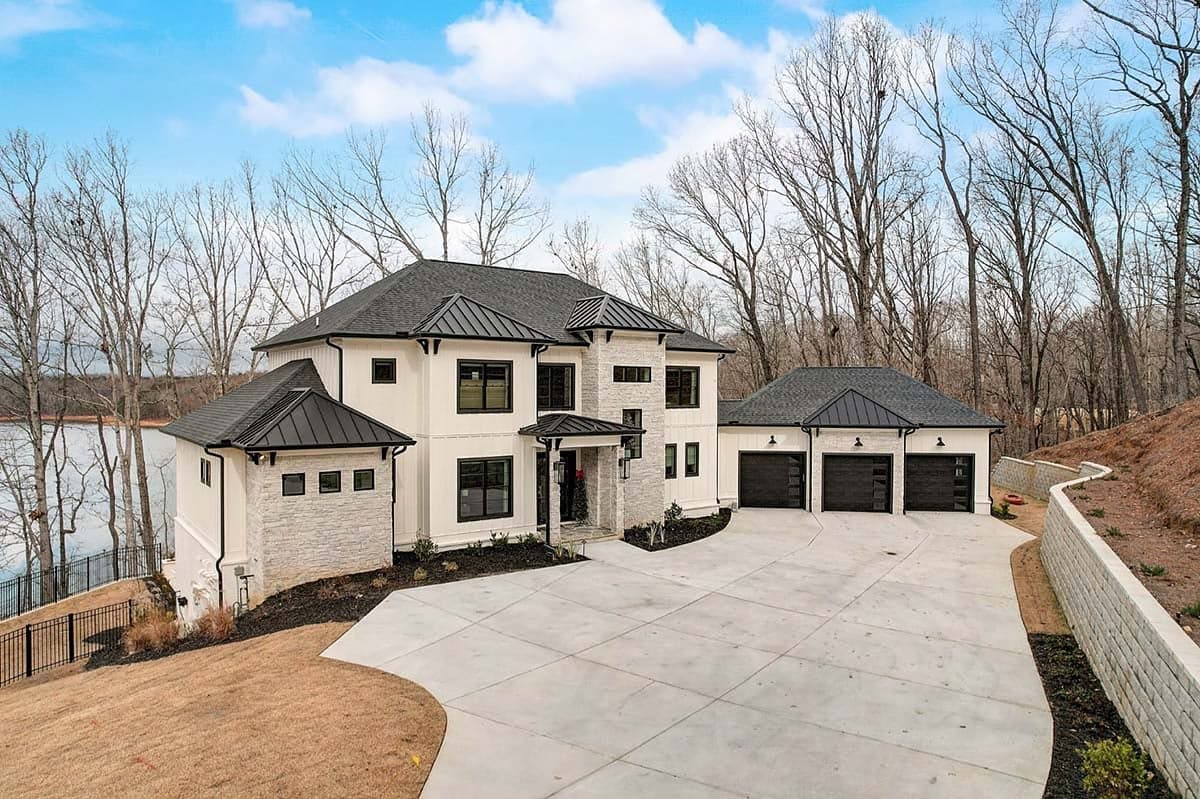

Plan Number 52042 | Order Code: 00WEB | Elevation

Reverse Plan

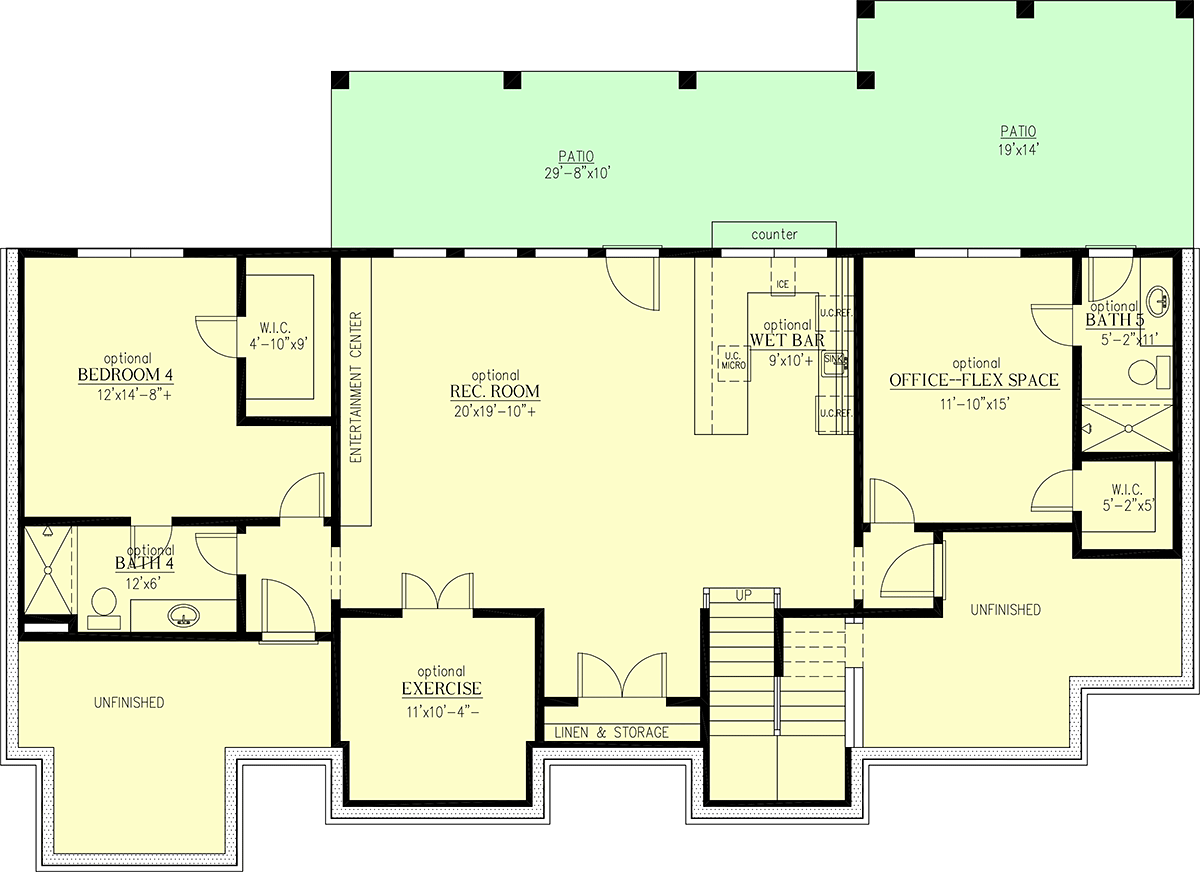

Plan Number 52042 | Order Code: 00WEB | Lower Floor Plan

Reverse Plan

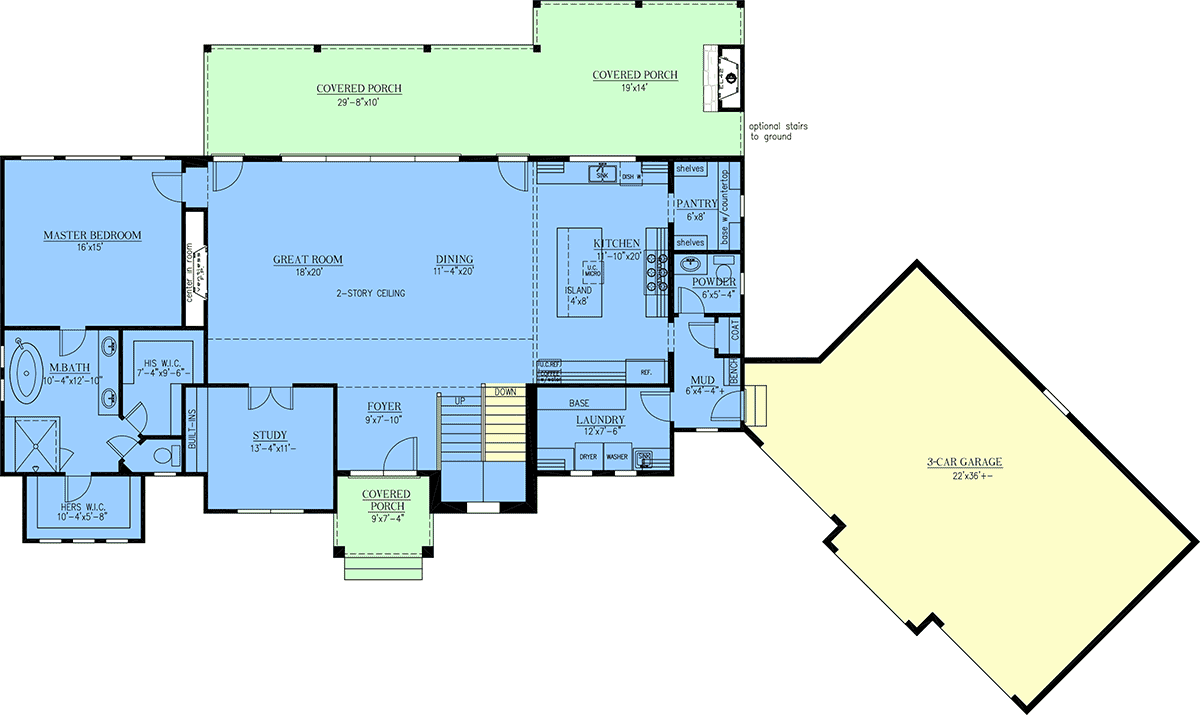

Plan Number 52042 | Order Code: 00WEB | First Floor Plan

Reverse Plan

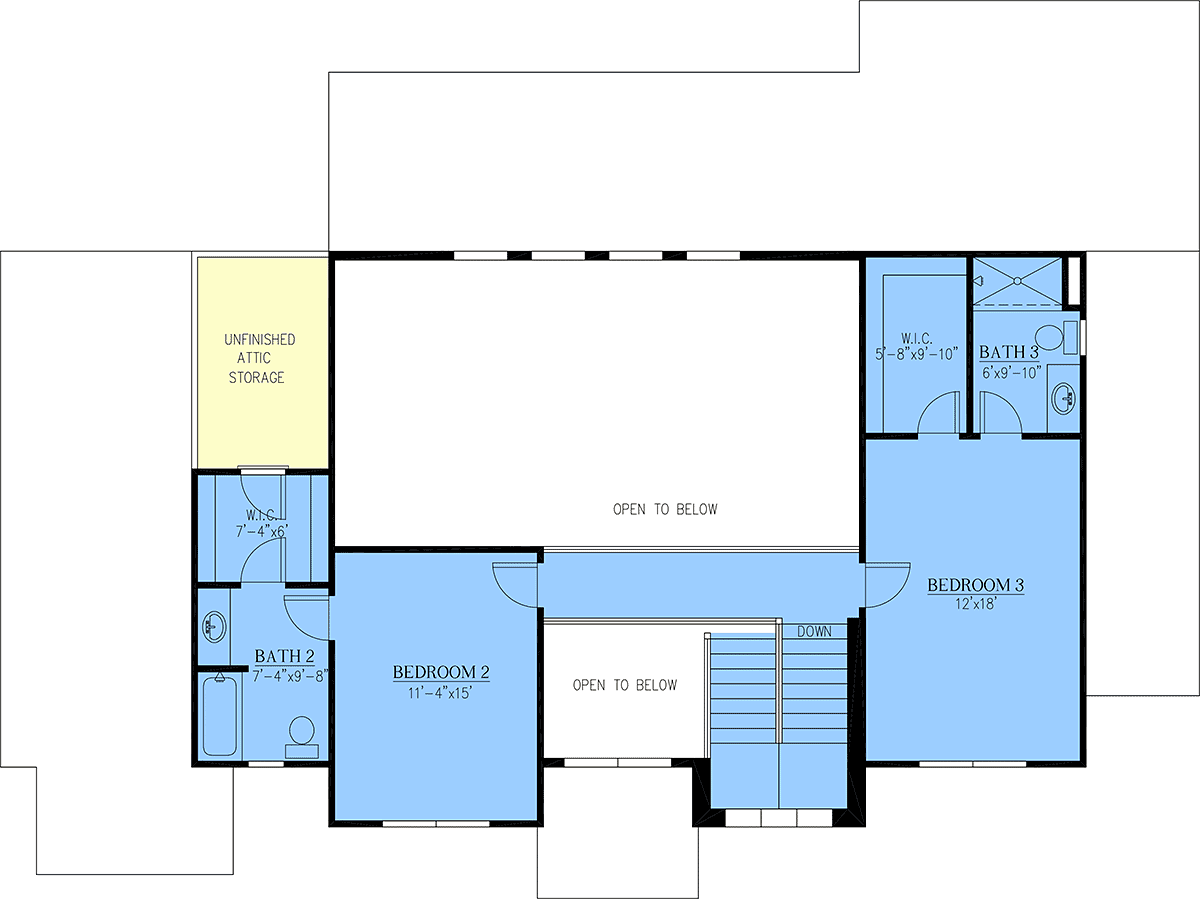

Plan Number 52042 | Order Code: 00WEB | Second Floor Plan

Reverse Plan

Plan Number 52042 Specifications:

  • Total Living Area: 2804
  • Main Living Area: 2045
  • Upper Living Area: 759
  • Unfinished Basement Area: 2045
  • Garage Area: 838
  • Garage Type: Attached
  • Garage Bays: 3
  • House Width: 108'0
  • House Depth: 64'4
  • Number of Stories: 2
  • Bedrooms: 3
  • Full Baths: 3
  • Half Baths: 1
  • Max Ridge Height: 30'3 from Front Door Floor Level
  • Primary Roof Pitch: 8:12
  • Roof Framing: Stick
  • Porch: 627 sq ft
  • FirePlace: Yes
  • 1st Floor Master: Yes
  • Main Ceiling Height: 10'
  • Upper Ceiling Height: 9'

Available Foundation Types:

  • Walkout Basement

Plan Number 52042 Plan Pricing:

  • PDF File: $1,495.00
  • CAD File: $1,695.00
  • Right Reading (True) Reverse: $200.00
    All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.

Unfinished Attic Storage: 93 sq. ft.
2-Story ceiling in great room: 20 ft.

Sorry, but this plan cannot be sold in the following zip codes: 30041, 30501, 30504, 30506, 30542, or 30566.
