Plan Number: 54642

  • 2993 Total Living Area
  • 2993 Main Level
  • 4 Bedrooms
  • 3 Full Bath(s)
  • 3 Car Garage
  • 107' Wide x 67' Deep
Available Foundation Types:
  • Slab

Order Code: 00WEB

  • PDF File: $1,500.00
  • CAD File: $2,995.00
  • Right Reading (True) Reverse: $150.00
    All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.

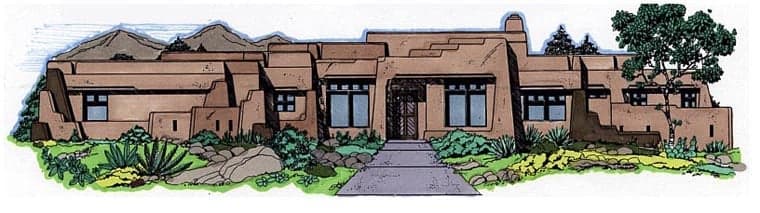

Plan Number 54642 | Order Code: 00WEB | Elevation

Reverse Plan

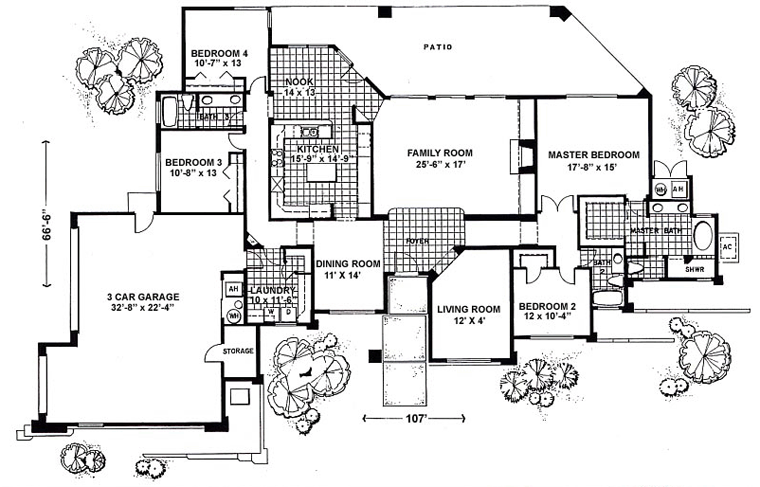

Plan Number 54642 | Order Code: 00WEB | First Floor Plan

Reverse Plan

Plan Number 54642 Specifications:

  • Total Living Area: 2993
  • Main Living Area: 2993
  • Garage Type: Attached
  • Garage Bays: 3
  • House Width: 107'
  • House Depth: 67'
  • Number of Stories: 1
  • Bedrooms: 4
  • Full Baths: 3
  • Max Ridge Height: 17' from Front Door Floor Level
  • Primary Roof Pitch: 0
  • Roof Framing: Unknown
  • FirePlace: Yes
  • 1st Floor Master: Yes

Available Foundation Types:

  • Slab

Plan Number 54642 Plan Pricing:

  • PDF File: $1,500.00
  • CAD File: $2,995.00
  • Right Reading (True) Reverse: $150.00
    All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.

Living Room 12' X 4'
Dining Room 11' X 14'
Family Room 25’-6" x 17’
Master Bedroom 17’-8" x 15’
Kitchen 15’-9" x 14’-9"
Nook 14 x 13
Bedroom 2 12 x 10’-4"
Bedroom 3 10’-8" x 13
Bedroom 4 10’-7" x 13
Laundry 10 x 11’-6"
Garage 32’-8" x 22’-4"
