Family Home Plans - Better Living By Good Design

Plan Number 58567 | Order Code: 00WEB

COOLhouseplans.com
U.S. customers call 1-800-482-0464 | Canadian customers call 1-800-361-7526


Plan Number: 58567

  • 434 Total Living Area
  • 434 Upper Level
  • 1 Bedrooms
  • 1 Full Bath(s)
  • 2 Car Garage
  • 28' Wide x 23' Deep
Available Foundation Types:
  • Slab

Order Code: 00WEB

  • 1 Set: $550.00
  • 5 Sets: $750.00
  • 8 Sets: $850.00
  • Reproducible Set: $850.00
  • PDF File: $650.00
  • CAD File: $1,300.00
  • Materials List: $85.00
  • Right Reading (True) Reverse: $175.00
    All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
  • Additional Sets: $60.00

Plan Number 58567 | Order Code: 00WEB | Elevation

Reverse Plan


Plan Number 58567 | Order Code: 00WEB | First Floor Plan

Reverse Plan

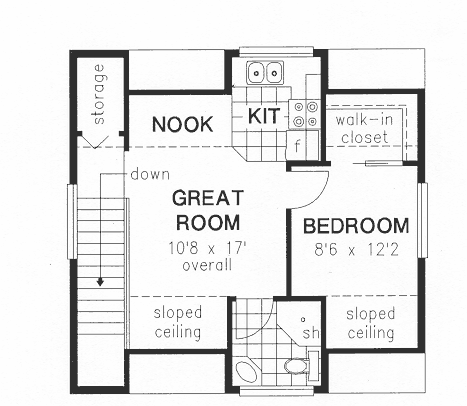

Plan Number 58567 | Order Code: 00WEB | Second Floor Plan

Reverse Plan

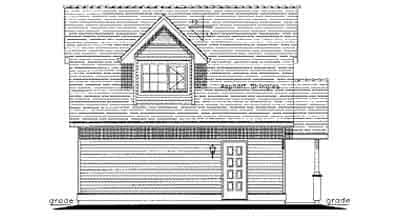

Plan Number 58567 | Order Code: 00WEB | Rear Elevation

Plan Number 58567 Specifications:

  • Total Living Area: 434
  • Upper Living Area: 434
  • Garage Area: 552
  • Garage Type: Detached
  • Garage Bays: 2
  • House Width: 28'
  • House Depth: 23'
  • Number of Stories: 2
  • Bedrooms: 1
  • Full Baths: 1
  • Max Ridge Height: 23' from Front Door Floor Level
  • Primary Roof Pitch: 12:12
  • Roof Framing: Truss and/or Stick
  • Main Ceiling Height: 8'
  • Upper Ceiling Height: 8'

Available Foundation Types:

  • Slab

Plan Number 58567 Plan Pricing:

  • 1 Set: $550.00 **
  • 5 Sets: $750.00
  • 8 Sets: $850.00
  • Reproducible Set: $850.00
  • PDF File: $650.00
  • CAD File: $1,300.00
  • Materials List: $85.00
  • Right Reading (True) Reverse: $175.00
    All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
  • Additional Sets: $60.00

** 1 Set order does not include a License-To-Build. For bidding purposes only. Customer can upgrade order within 90 days.

Plan Number 58567 | Order Code: 00WEB | Specifications and Pricing
COOLhouseplans.com
U.S. customers call 1-800-482-0464 | Canadian customers call 1-800-361-7526

Plan Modifications

Receive a FREE modification estimate in one of 3 ways. Our modification team is ready to help you adjust any plan to fit your needs. The ReDesign process is simple and estimates are free!

1. Complete this On-Line Request Form

2. Print, complete and fax this PDF Form to us at 1-800-675-4916.

3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.

Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.

We Work Fast!

When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!

We look forward to hearing from you!

Start today planning for tomorrow!

Plan Number 58567 | Order Code: 00WEB | Specifications and Pricing
COOLhouseplans.com
U.S. customers call 1-800-482-0464 | Canadian customers call 1-800-361-7526

COPYRIGHT NOTICE. It is illegal to build this plan without a legally obtained set of plans. It is illegal to copy or redraw these plans. Violation of U.S. copyright laws are punishable with fines of up to $200,000. After the purchase of plans, changes may be made by a qualified professional.
