Plan Number: 65254

  • 1760 Total Living Area
  • 880 Main Level
  • 880 Upper Level
  • 3 Bedrooms
  • 2 Full Bath(s)
  • 1 Half Bath(s)
  • 1 Car Garage
  • 42' Wide x 40' Deep
Available Foundation Types:
  • Basement
  • Crawlspace - * $395.00
  • Slab - * $395.00
  • Stem Wall Slab - * $395.00

* May require additional drawing time.

Order Code: 00WEB

  • PDF File: $1,555.00
  • 3 Sets: $1,690.00
  • CAD File: $2,555.00
  • Right Reading (True) Reverse: $225.00
    All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
  • Additional Sets: $65.00

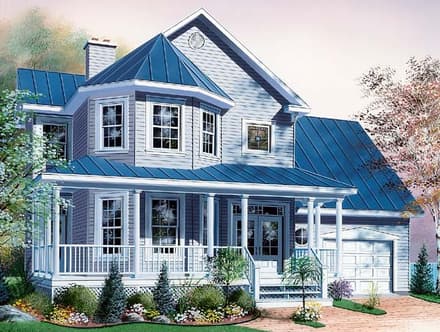

Plan Number 65254 | Order Code: 00WEB | Elevation

Reverse Plan

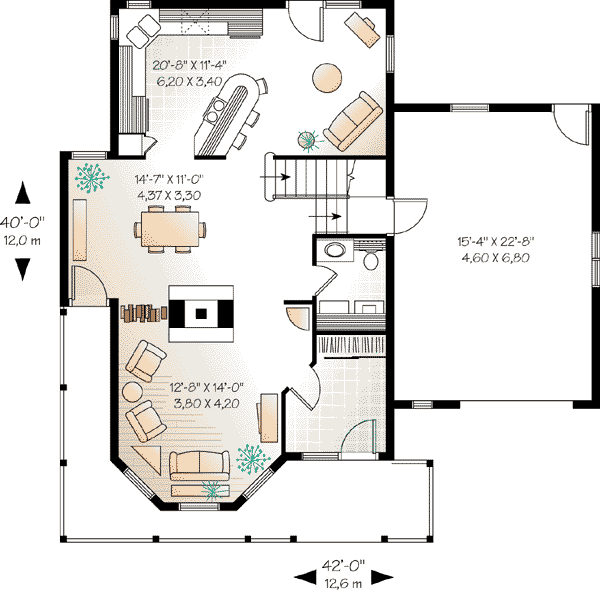

Plan Number 65254 | Order Code: 00WEB | First Floor Plan

Reverse Plan


Plan Number 65254 | Order Code: 00WEB | Second Floor Plan

Reverse Plan


Plan Number 65254 | Order Code: 00WEB | Rear Elevation

Plan Number 65254 Specifications:

  • Total Living Area: 1760
  • Main Living Area: 880
  • Upper Living Area: 880
  • Bonus Area: 256
  • Unfinished Basement Area: 880
  • Garage Area: 384
  • Garage Type: Attached
  • Garage Bays: 1
  • House Width: 42'
  • House Depth: 40'
  • Number of Stories: 2
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: 1
  • Max Ridge Height: 27'10 from Front Door Floor Level
  • Primary Roof Pitch: 8:12
  • Roof Load: 60 psf
  • Roof Framing: Truss
  • Porch: 194 sq ft
  • FirePlace: Yes
  • Main Ceiling Height: 9'
  • Upper Ceiling Height: 8'

Available Foundation Types:

  • Basement
  • Crawlspace - $395.00
  • Slab - $395.00
  • Stem Wall Slab - $395.00

Plan Number 65254 Plan Pricing:

  • PDF File: $1,555.00
  • 3 Sets: $1,690.00
  • CAD File: $2,555.00
  • Right Reading (True) Reverse: $225.00
    All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
  • Additional Sets: $65.00

** Please note that a PDF File is included with a 3 Set Order**



**All plans by this designer are being updated to IRC 2015 starting on March 13, 2023. This plan may be delayed by 4 business days before shipping.**

Plan Number 65254 | Order Code: 00WEB | Specifications and Pricing
COOLhouseplans.com
800-482-0464

Plan Modifications

Receive a FREE modification estimate in one of 3 ways. Our modification team is ready to help you adjust any plan to fit your needs. The ReDesign process is simple and estimates are free!

1. Complete this On-Line Request Form

2. Print, complete and fax this PDF Form to us at 1-800-675-4916.

3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.

Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.

We Work Fast!

When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!

We look forward to hearing from you!
