Family Home Plans - Better Living By Good Design

Plan Number 65473 | Order Code: 00WEB

COOLhouseplans.com
800-482-0464

Plan Number: 65473

  • 2329 Total Living Area
  • 1299 Main Level
  • 1030 Upper Level
  • 3 Bedrooms
  • 2 Full Bath(s)
  • 1 Half Bath(s)
  • 3 Car Garage
  • 55' Wide x 42' Deep
Available Foundation Types:
  • Basement
  • Crawlspace - * $395.00
  • Slab - * $395.00
  • Stem Wall Slab - * $395.00

* May require additional drawing time.

Order Code: 00WEB

  • PDF File: $1,260.00
  • 5 Sets plus PDF File: $1,385.00
  • Reproducible Set: $1,260.00
  • CAD File: $1,860.00
  • Right Reading (True) Reverse: $150.00
    All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
  • Additional Sets: $50.00

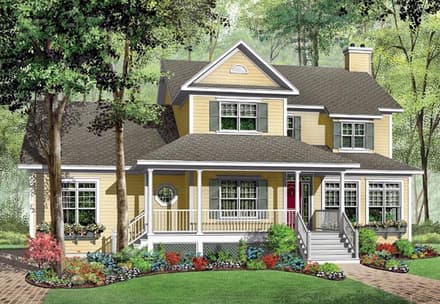

Plan Number 65473 | Order Code: 00WEB | Elevation

Reverse Plan

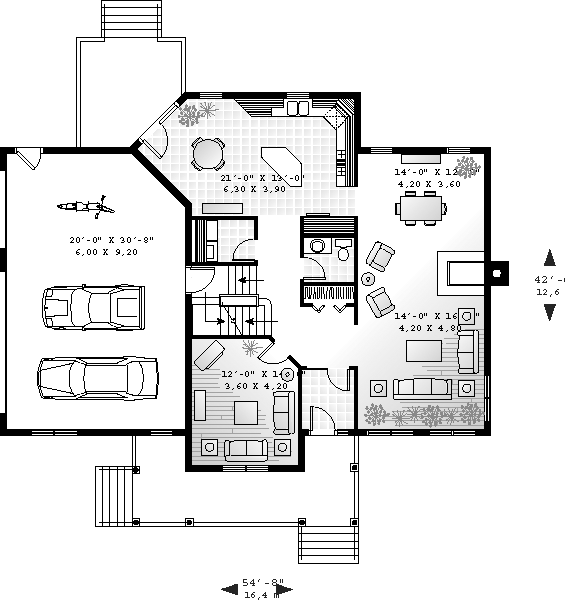

Plan Number 65473 | Order Code: 00WEB | First Floor Plan

Reverse Plan

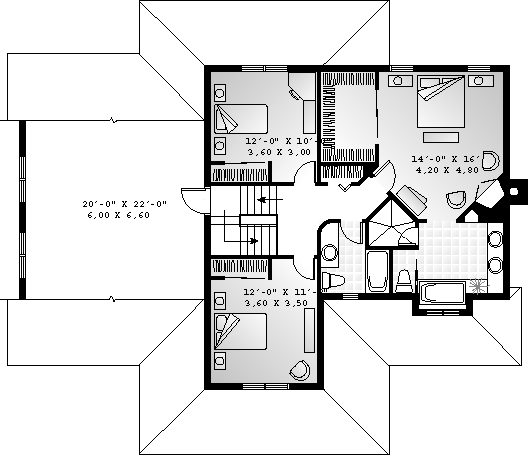

Plan Number 65473 | Order Code: 00WEB | Second Floor Plan

Reverse Plan


Plan Number 65473 | Order Code: 00WEB | Rear Elevation

Plan Number 65473 Specifications:

  • Total Living Area: 2329
  • Main Living Area: 1299
  • Upper Living Area: 1030
  • Bonus Area: 468
  • Garage Type: Attached
  • Garage Bays: 3
  • House Width: 55'
  • House Depth: 42'
  • Number of Stories: 2
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: 1
  • Max Ridge Height: 32' from Front Door Floor Level
  • Primary Roof Pitch: 8:12
  • Roof Load: 40 psf
  • Roof Framing: Truss
  • Porch: 198 sq ft
  • FirePlace: Yes
  • Main Ceiling Height: 9'

Available Foundation Types:

  • Basement
  • Crawlspace - $395.00
  • Slab - $395.00
  • Stem Wall Slab - $395.00

Plan Number 65473 Plan Pricing:

  • PDF File: $1,260.00
  • Reproducible Set: $1,260.00
  • 5 Sets plus PDF File: $1,385.00
  • CAD File: $1,860.00
  • Right Reading (True) Reverse: $150.00
    All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
  • Additional Sets: $50.00

Width & Depth does NOT include porches or steps. ADD 6ft in depth for each porch
The basement covers the house, except for the garage area. There is one bearing wall going from front to back betweeen the family/living room and the kitchen/powder/foyer area. There is no mechanical room to this plan.

Plan Number 65473 | Order Code: 00WEB | Specifications and Pricing
COOLhouseplans.com
800-482-0464

Plan Modifications

Receive a FREE modification estimate in one of 3 ways. Our modification team is ready to help you adjust any plan to fit your needs. The ReDesign process is simple and estimates are free!

1. Complete this On-Line Request Form

2. Print, complete and fax this PDF Form to us at 1-800-675-4916.

3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.

Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.

We Work Fast!

When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!

We look forward to hearing from you!

Start today planning for tomorrow!

Plan Number 65473 | Order Code: 00WEB | Specifications and Pricing
COOLhouseplans.com
800-482-0464

COPYRIGHT NOTICE. It is illegal to build this plan without a legally obtained set of plans. It is illegal to copy or redraw these plans. Violation of U.S. copyright laws are punishable with fines of up to $200,000. After the purchase of plans, changes may be made by a qualified professional.
