Plan Number: 69642

  • 1852 Total Living Area
  • 940 Main Level
  • 912 Upper Level
  • 4 Bedrooms
  • 2 Full Bath(s)
  • 2 Half Bath(s)
  • 2 Car Garage
  • 54' Wide x 40' Deep
Available Foundation Types:
  • Basement - * $460.00
  • Crawlspace

Order Code: 00WEB

  • PDF File: $2,565.00
  • 1 Set: $1,025.00
  • 5 Sets plus PDF File: $1,535.00
  • CAD File: $2,790.00
  • CAD File: $3,070.00
    Unlimited Build License issued on CAD File orders.
  • Right Reading (True) Reverse: $285.00
    All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
  • Additional Sets: $50.00

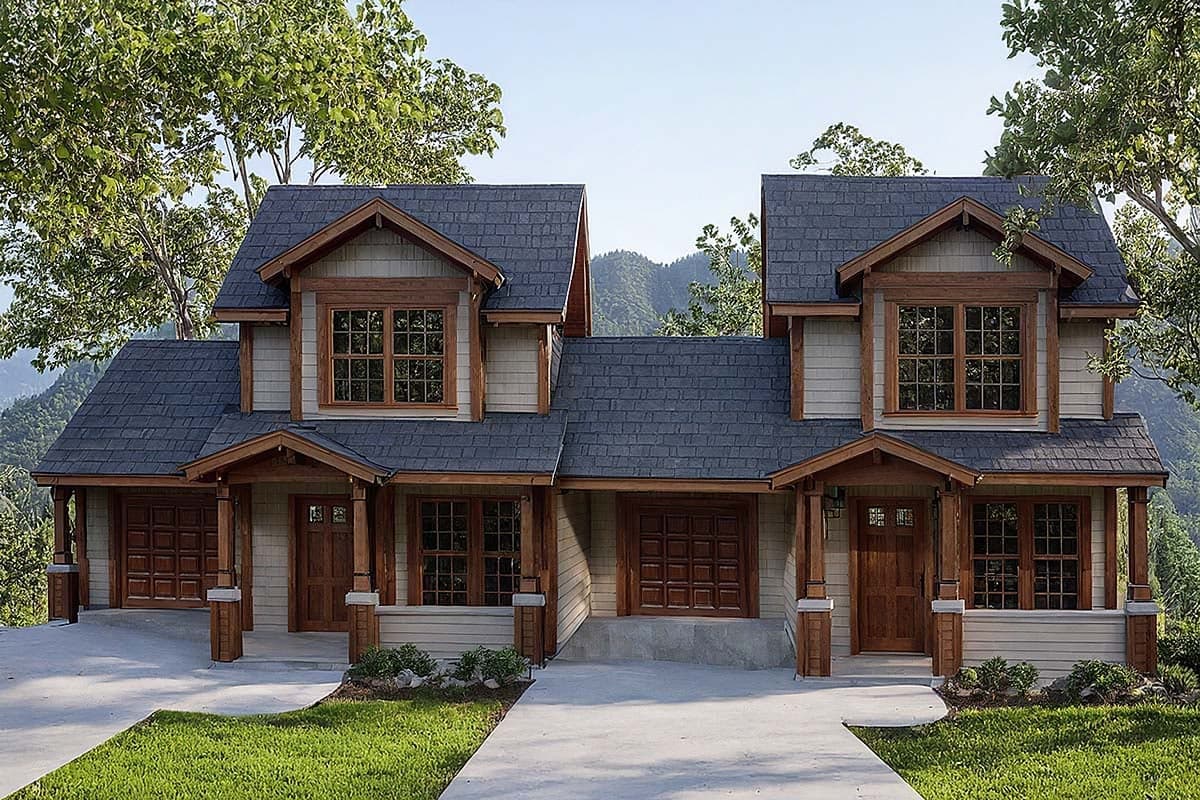

Plan Number 69642 | Order Code: 00WEB | Elevation

Reverse Plan

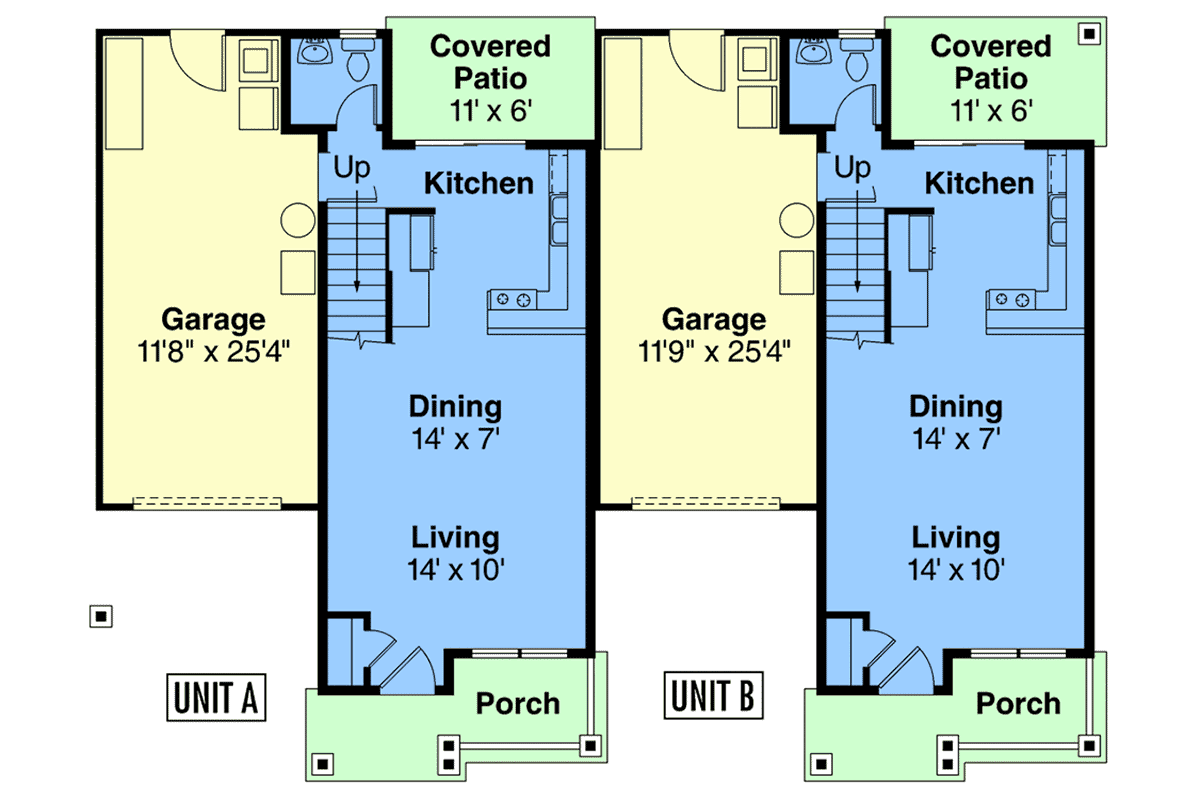

Plan Number 69642 | Order Code: 00WEB | First Floor Plan

Reverse Plan

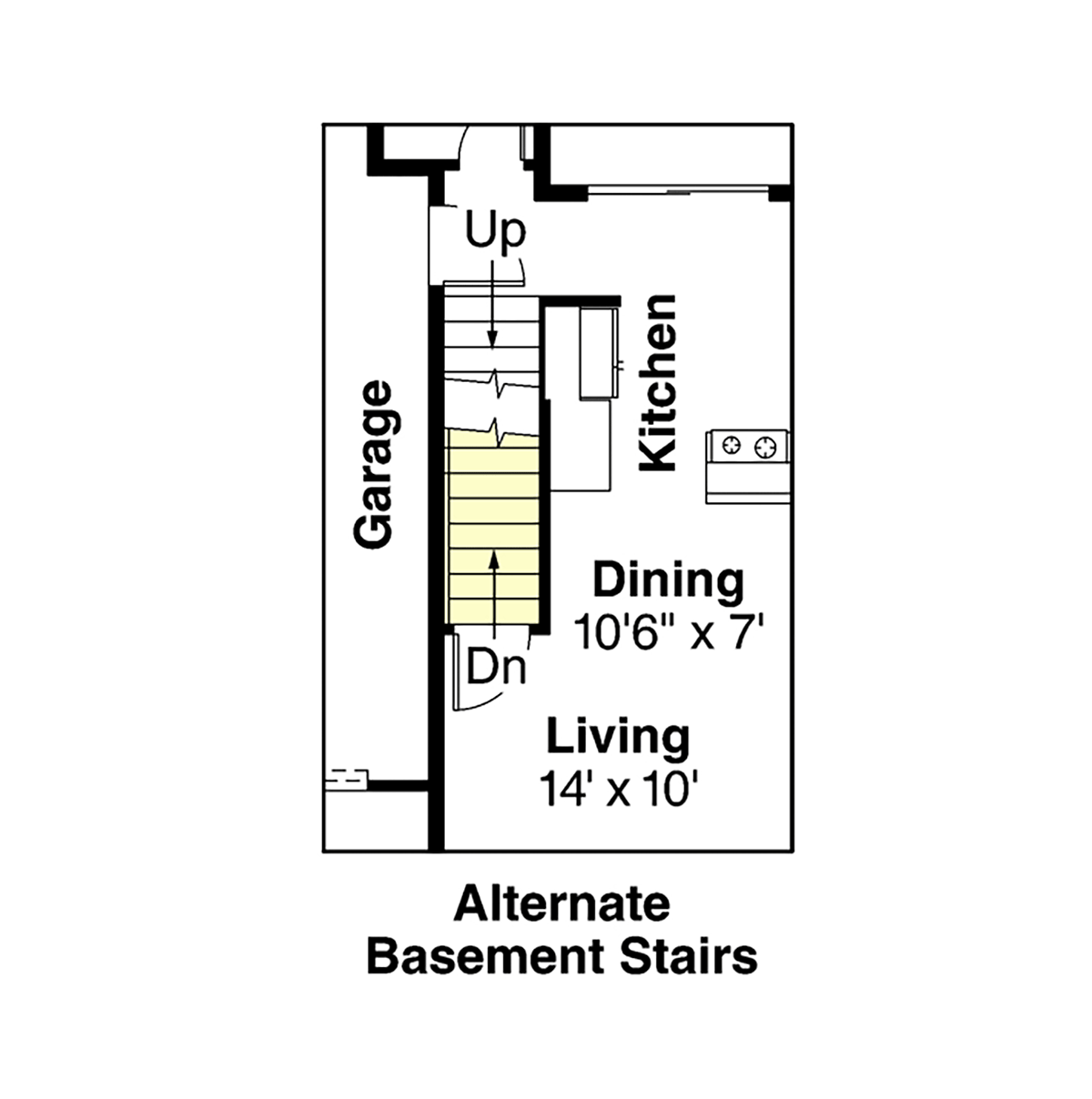

Plan Number 69642 | Order Code: 00WEB | Alternate Level One

Reverse Plan


Plan Number 69642 | Order Code: 00WEB | Second Floor Plan

Reverse Plan

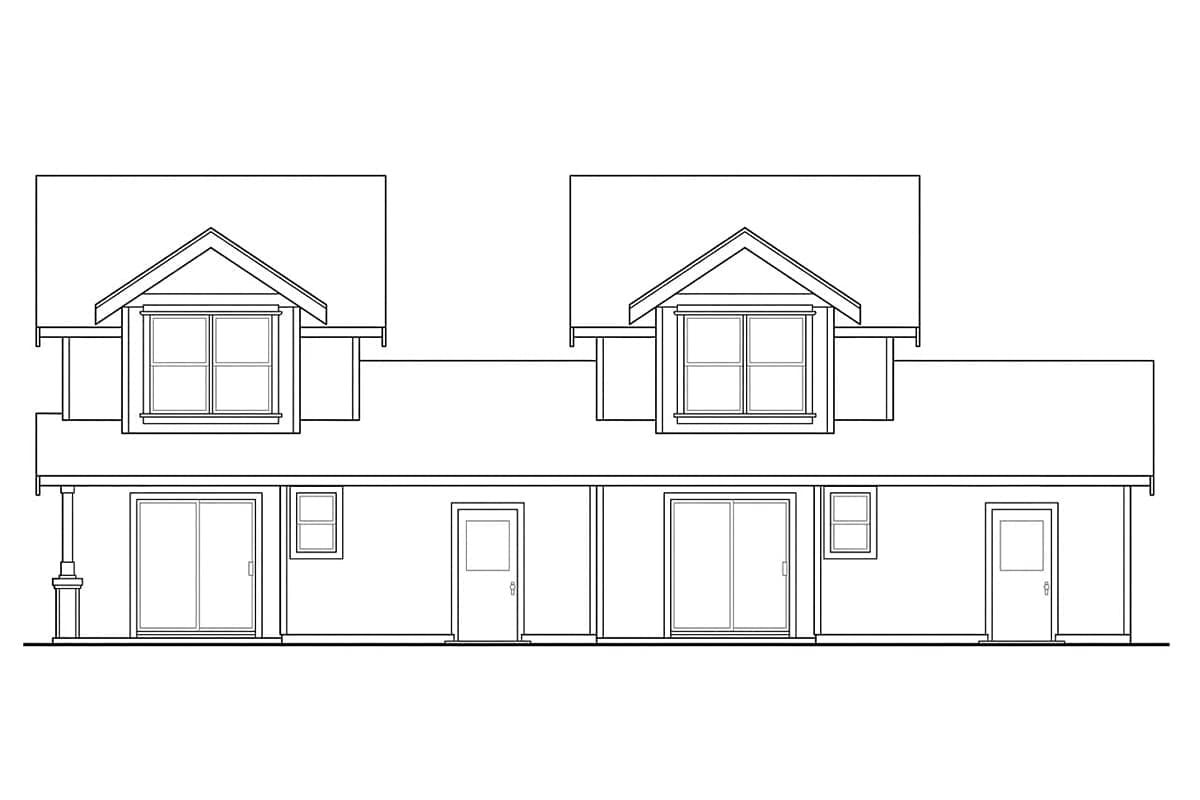

Plan Number 69642 | Order Code: 00WEB | Rear Elevation

Plan Number 69642 Specifications:

  • Total Living Area: 1852
  • Main Living Area: 940
  • Upper Living Area: 912
  • Garage Area: 602
  • Garage Type: Attached
  • Garage Bays: 2
  • House Width: 54'
  • House Depth: 40'
  • Number of Stories: 2
  • Bedrooms: 4
  • Full Baths: 2
  • Half Baths: 2
  • Max Ridge Height: 23'9" from Front Door Floor Level
  • Primary Roof Pitch: 6:12
  • Roof Load: 25 psf
  • Roof Framing: Truss
  • Porch: 156 sq ft
  • Main Ceiling Height: 8'

Available Foundation Types:

  • Basement - $460.00 Total Living Area may increase with Basement Foundation option - please call to confirm before ordering.
  • Crawlspace

Plan Number 69642 Plan Pricing:

  • PDF File: $2,565.00
  • 1 Set: $1,025.00 **
  • 5 Sets plus PDF File: $1,535.00
  • CAD File: $2,790.00
  • CAD File: $3,070.00
    Unlimited Build License issued on CAD File orders.
  • Right Reading (True) Reverse: $285.00
    All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
  • Additional Sets: $50.00

** 1 Set order does not include a License-To-Build. For bidding purposes only. Customer can upgrade order within 90 days.
