Plan Number: 75249

  • 5157 Total Living Area
  • 2446 Main Level
  • 2711 Upper Level
  • 6 Bedrooms
  • 4 Full Bath(s)
  • 1 Half Bath(s)
  • 3 Car Garage
  • 73'8 Wide x 75'8 Deep
Available Foundation Types:
  • Basement
  • Crawlspace
  • Slab

Order Code: 00WEB

  • PDF File: $2,836.35
  • 5 Sets: $2,165.94
  • 8 Sets: $2,269.08
  • Reproducible Set: $2,836.35
  • CAD File: $4,538.16
  • Right Reading (True) Reverse: $335.00
    All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
  • Additional Sets: $65.00

Plan Number 75249 | Order Code: 00WEB | Elevation

Reverse Plan

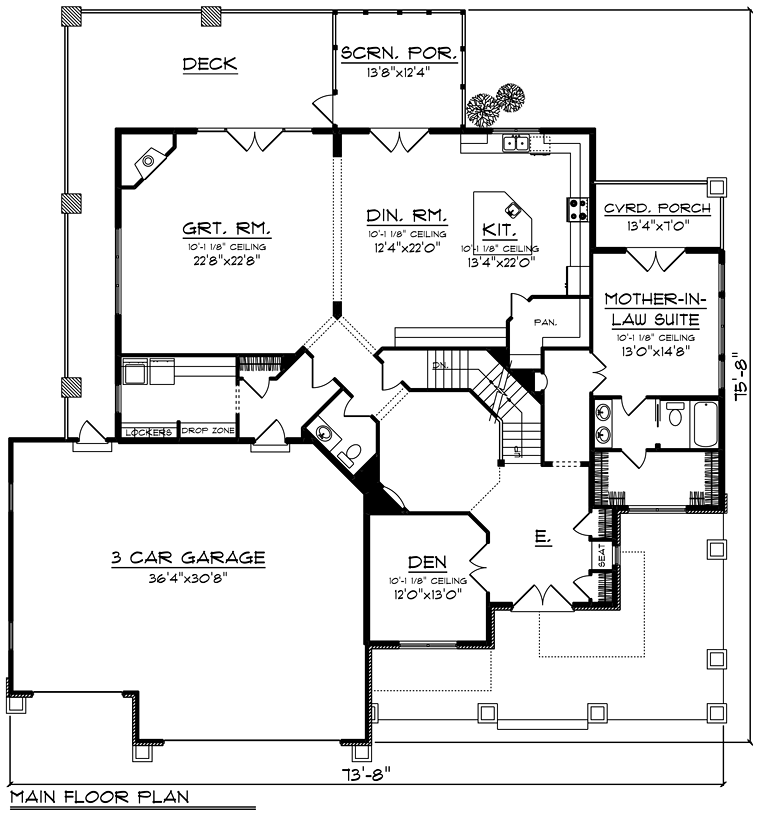

Plan Number 75249 | Order Code: 00WEB | First Floor Plan

Reverse Plan


Plan Number 75249 | Order Code: 00WEB | Second Floor Plan

Reverse Plan

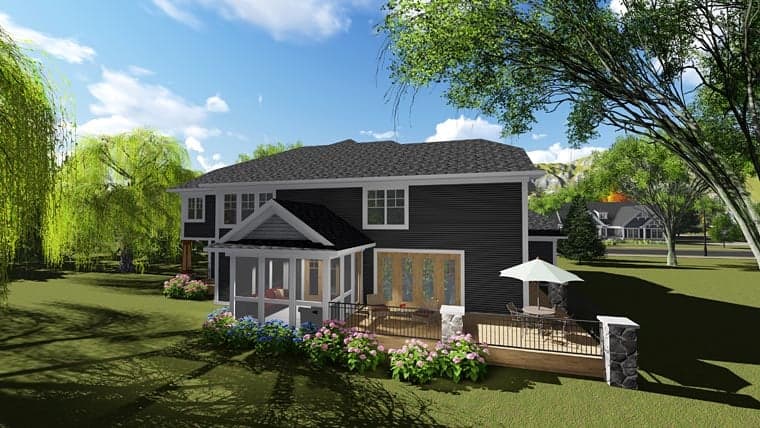

Plan Number 75249 | Order Code: 00WEB | Rear Elevation

Plan Number 75249 Specifications:

  • Total Living Area: 5157
  • Main Living Area: 2446
  • Upper Living Area: 2711
  • Garage Area: 1114
  • Garage Type: Attached
  • Garage Bays: 3
  • House Width: 73'8
  • House Depth: 75'8
  • Number of Stories: 2
  • Bedrooms: 6
  • Full Baths: 4
  • Half Baths: 1
  • Max Ridge Height: 32'7 from Front Door Floor Level
  • Primary Roof Pitch: 8:12
  • Roof Load: 47 psf
  • Roof Framing: Truss
  • Porch: 748 sq ft
  • FirePlace: Yes
  • 2nd Floor Laundry: Yes
  • Main Ceiling Height: 10'0
  • Upper Ceiling Height: 9'0

Available Foundation Types:

  • Basement
  • Crawlspace
  • Slab

Plan Number 75249 Plan Pricing:

  • PDF File: $2,836.35
  • 5 Sets: $2,165.94
  • 8 Sets: $2,269.08
  • Reproducible Set: $2,836.35
  • CAD File: $4,538.16
  • Right Reading (True) Reverse: $335.00
    All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
  • Additional Sets: $65.00
Plan Number 75249 | Order Code: 00WEB | Specifications and Pricing
COOLhouseplans.com
800-482-0464

Plan Modifications

Receive a FREE modification estimate in one of 3 ways. Our modification team is ready to help you adjust any plan to fit your needs. The ReDesign process is simple and estimates are free!

1. Complete this On-Line Request Form

2. Print, complete and fax this PDF Form to us at 1-800-675-4916.

3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.

Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.

We Work Fast!

When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!

We look forward to hearing from you!

Start today planning for tomorrow!
