Plan Number: 77548

  • 4356 Total Living Area
  • 290 Main Level
  • 2611 Upper Level
  • 4 Bedrooms
  • 5 Full Bath(s)
  • 1 Half Bath(s)
  • 4 Car Garage
  • 50'4 Wide x 74'8 Deep
Available Foundation Types:
  • Slab

Order Code: 00WEB

  • PDF File: $3,920.00
  • CAD File: $3,920.00
  • CAD File: $5,250.00
    Unlimited Build License issued on CAD File orders.
  • Right Reading (True) Reverse: $437.50
    All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.

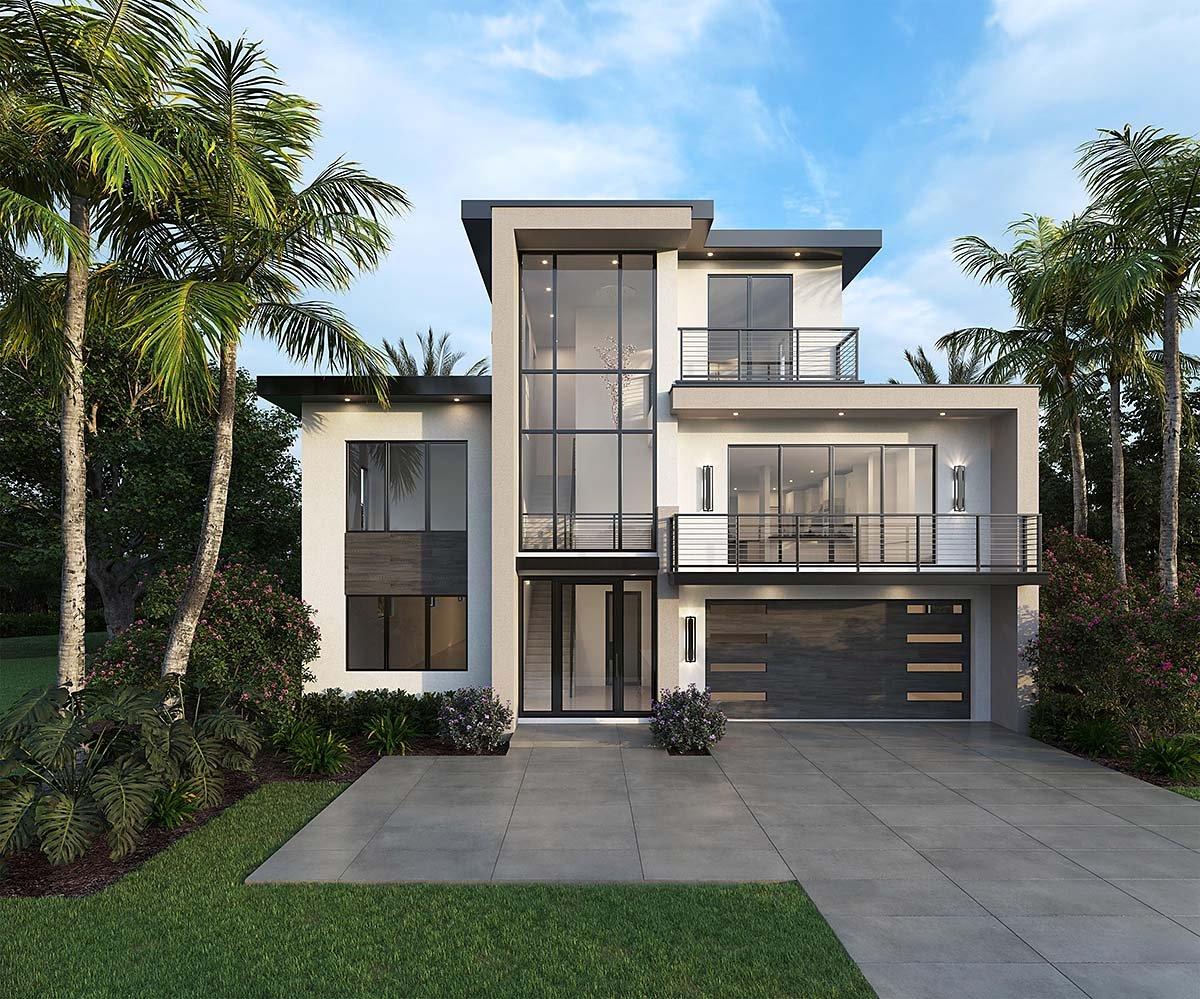

Plan Number 77548 | Order Code: 00WEB | Elevation

Reverse Plan

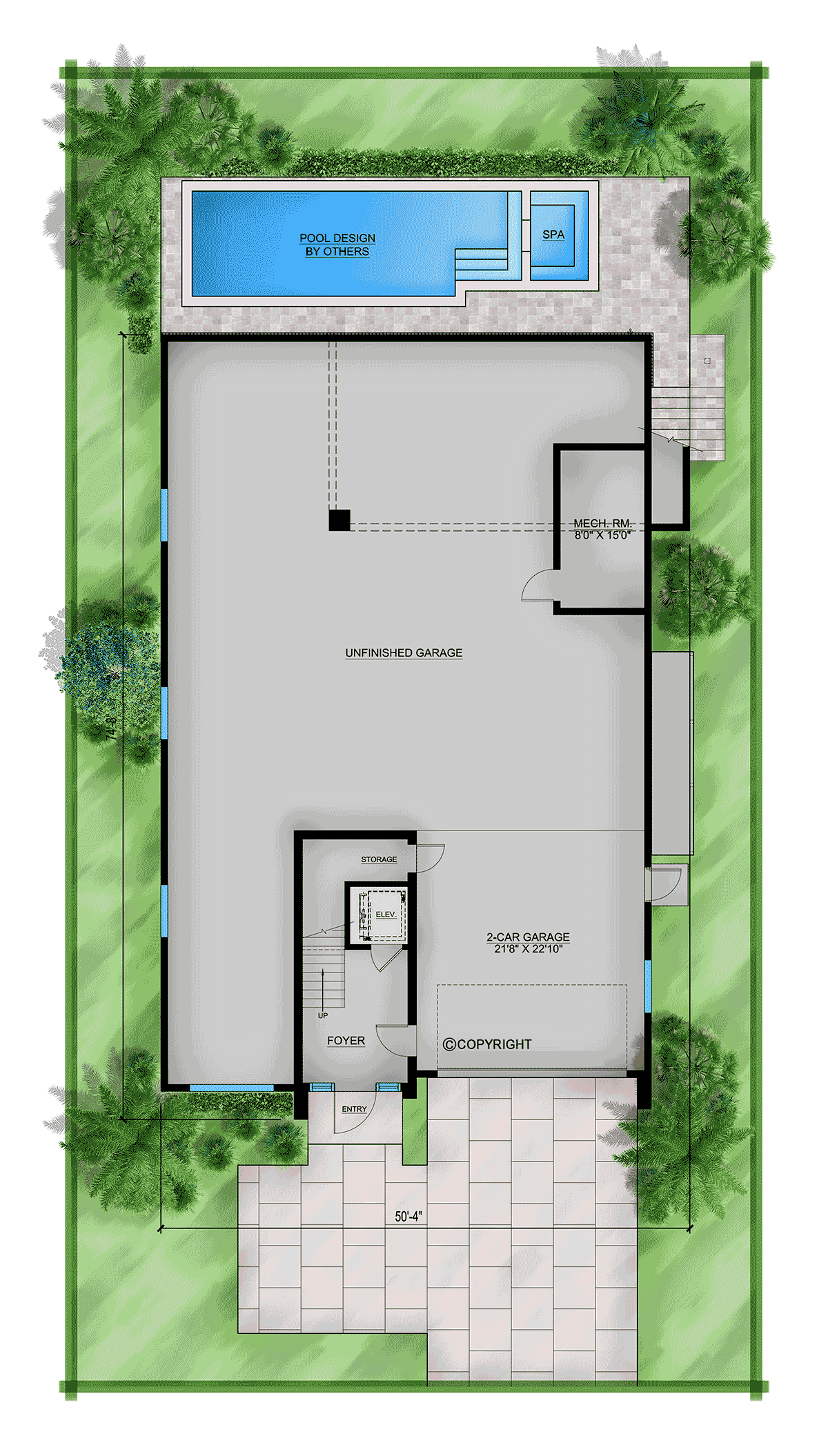

Plan Number 77548 | Order Code: 00WEB | First Floor Plan

Reverse Plan

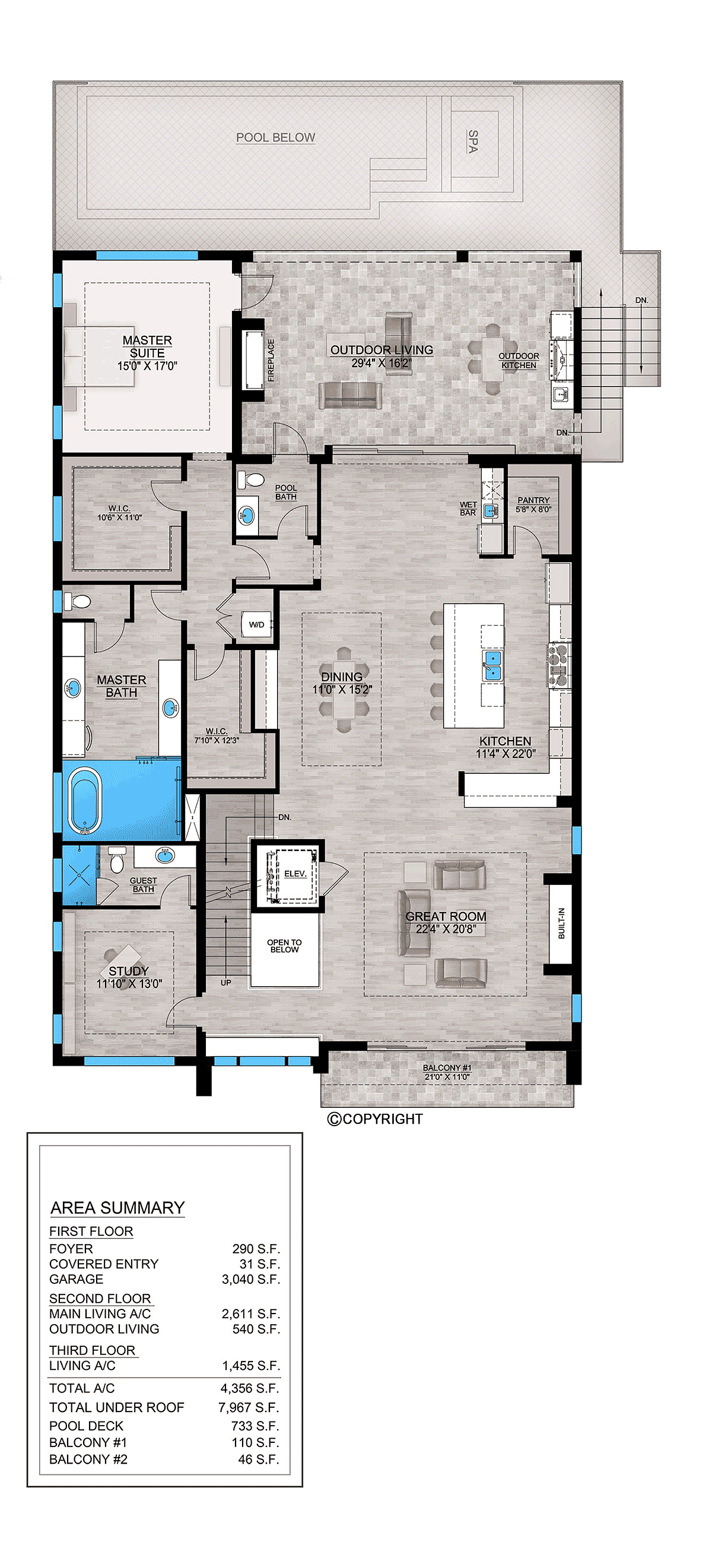

Plan Number 77548 | Order Code: 00WEB | Second Floor Plan

Reverse Plan

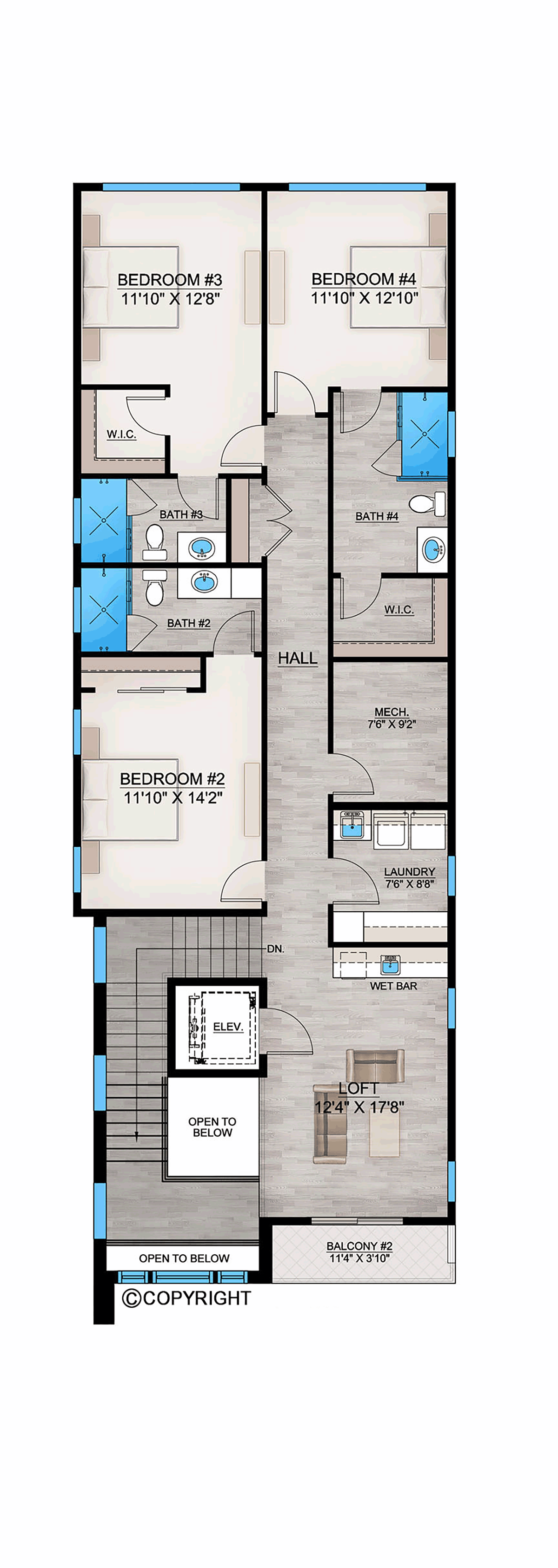

Plan Number 77548 | Order Code: 00WEB | Third Floor Plan

Reverse Plan

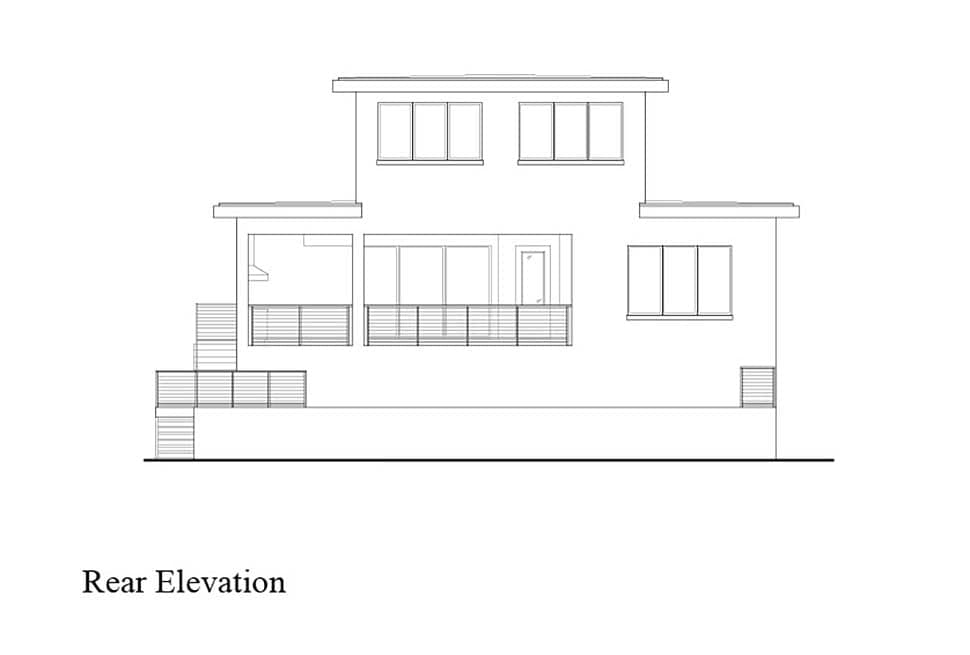

Plan Number 77548 | Order Code: 00WEB | Rear Elevation

Plan Number 77548 Specifications:

  • Total Living Area: 4356
  • Main Living Area: 290
  • Upper Living Area: 2611
  • Garage Area: 3040
  • Garage Type: Attached
  • Garage Bays: 4
  • House Width: 50'4
  • House Depth: 74'8
  • Number of Stories: 3
  • Bedrooms: 4
  • Full Baths: 5
  • Half Baths: 1
  • Max Ridge Height: 32'9 from Front Door Floor Level
  • Primary Roof Pitch: 0
  • Roof Framing: Unknown
  • Porch: 540 sq ft

Available Foundation Types:

  • Slab

Plan Number 77548 Plan Pricing:

  • PDF File: $3,920.00
  • PDF File Unlimited Build: $5,250.00
  • CAD File: $3,920.00
  • CAD File: $5,250.00
    Unlimited Build License issued on CAD File orders.
  • Right Reading (True) Reverse: $437.50
    All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.

Third Level: 1455 sq. ft. (heated)

Ceiling Types and Heights:
Master Bedroom Coffer 10’/10’6”
Master Bath Flat 10’
Great Room Coffer 10’/10’6”
Dining Room Coffer 10’/10’6”
Kitchen Flat 10’
Foyer Open to above
Study Coffer 10’/10’6”
Bedroom 2 Flat 9’
Bedroom 3 Flat 9’
Bedroom 4 Flat 9’
Baths Flat 9’
Lanai Flat 10’6”
Laundry Flat 9’
Garage Flat 9’4”
Loft Flat 9’
Pool Bath Flat 10’
Unfinished Storage Flat 8’8”

PLAN RESTRICTIONS: CANNOT BE SOLD TO BE BUILT IN LEE OR COLLIER COUNTIES, FLORIDA
