Plan Number: 77549

  • 4734 Total Living Area
  • 2604 Main Level
  • 2130 Upper Level
  • 5 Bedrooms
  • 5 Full Bath(s)
  • 2 Half Bath(s)
  • 3 Car Garage
  • 54'4" Wide x 90'0" Deep
Available Foundation Types:
  • Stem Wall Slab

Order Code: 00WEB

  • PDF File: $4,260.00
  • CAD File: $4,260.00
  • CAD File: $6,390.00
    Unlimited Build License issued on CAD File orders.
  • Right Reading (True) Reverse: $437.50
    All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.

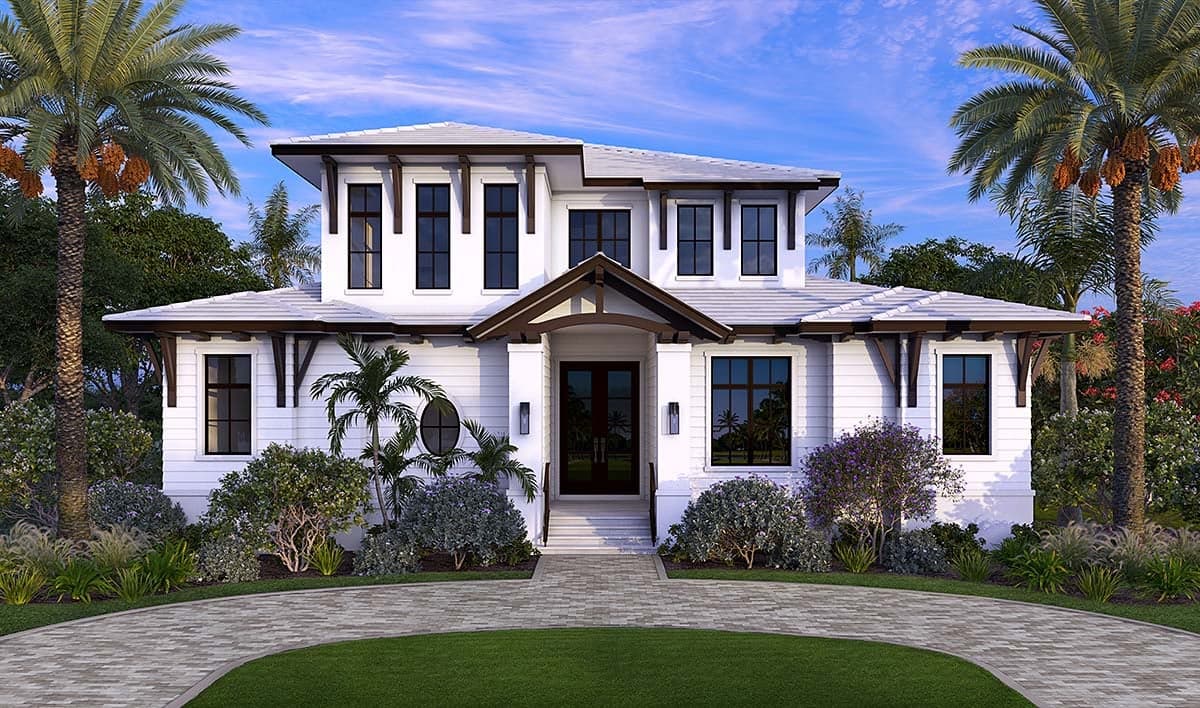

Plan Number 77549 | Order Code: 00WEB | Elevation

Reverse Plan

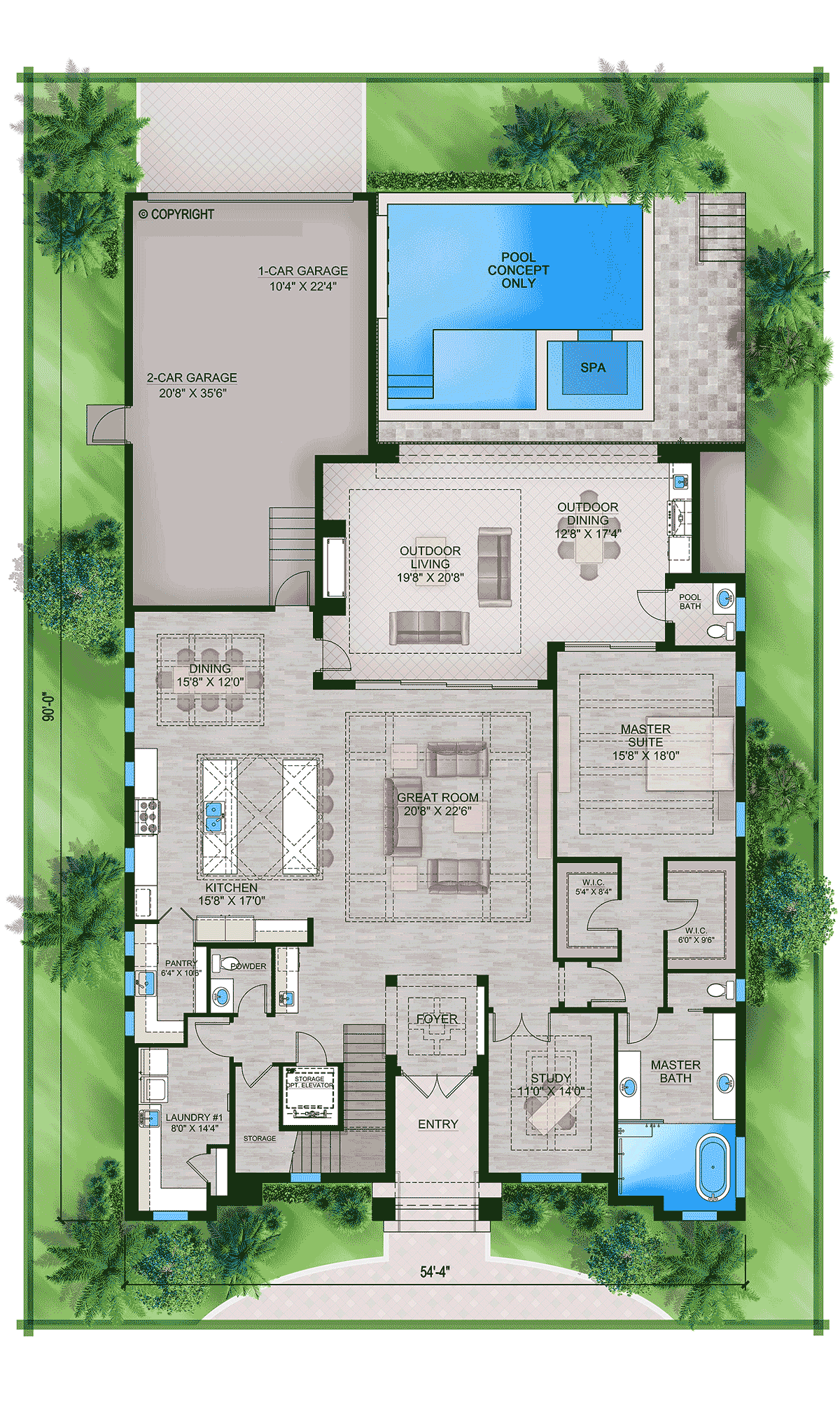

Plan Number 77549 | Order Code: 00WEB | First Floor Plan

Reverse Plan


Plan Number 77549 | Order Code: 00WEB | Second Floor Plan

Reverse Plan

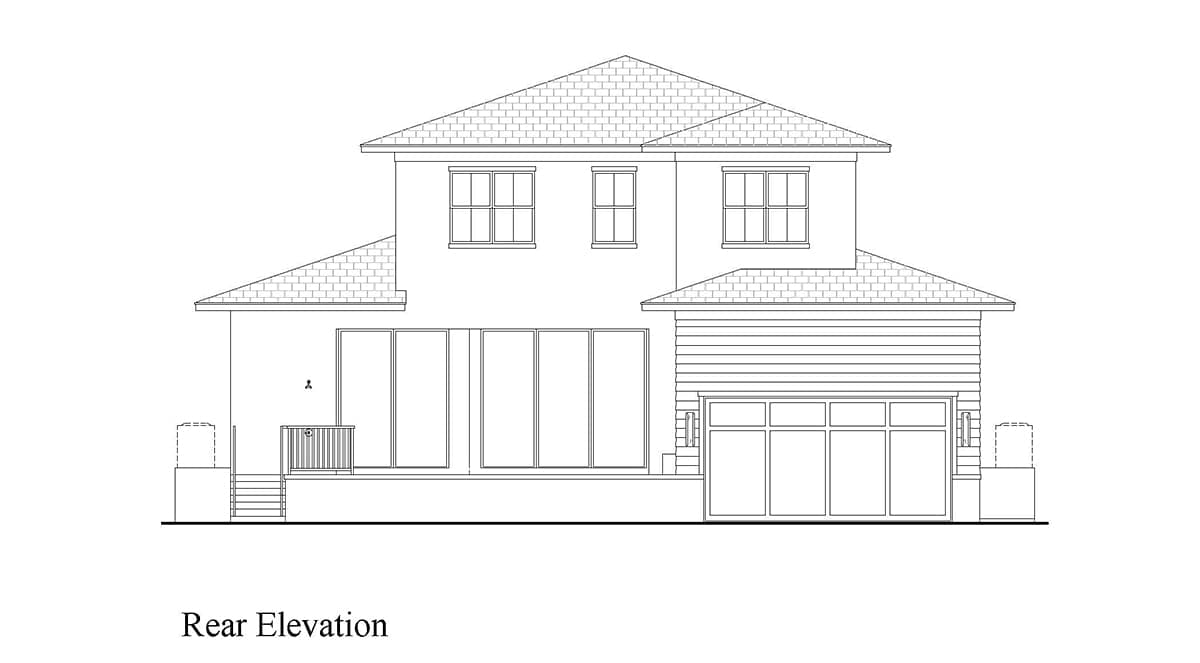

Plan Number 77549 | Order Code: 00WEB | Rear Elevation

Plan Number 77549 Specifications:

  • Total Living Area: 4734
  • Main Living Area: 2604
  • Upper Living Area: 2130
  • Garage Area: 737
  • Garage Type: Attached
  • Garage Bays: 3
  • House Width: 54'4"
  • House Depth: 90'0"
  • Number of Stories: 2
  • Bedrooms: 5
  • Full Baths: 5
  • Half Baths: 2
  • Max Ridge Height: 29'8.5" from Front Door Floor Level
  • Primary Roof Pitch: 4:12
  • Roof Framing: Truss
  • Porch: 612 sq ft
  • 1st Floor Master: Yes
  • Main Ceiling Height: 11'4"
  • Upper Ceiling Height: 9'4"

Available Foundation Types:

  • Stem Wall Slab

Plan Number 77549 Plan Pricing:

  • PDF File: $4,260.00
  • PDF File Unlimited Build: $6,390.00
  • CAD File: $4,260.00
  • CAD File: $6,390.00
    Unlimited Build License issued on CAD File orders.
  • Right Reading (True) Reverse: $437.50
    All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.

PLAN RESTRICTIONS: CANNOT BE SOLD TO BE BUILT IN LEE OR COLLIER COUNTIES, FLORIDA
