Plan Number: 84634

  • 4031 Total Living Area
  • 2311 Main Level
  • 1720 Upper Level
  • 5 Bedrooms
  • 4 Full Bath(s)
  • 2 Half Bath(s)
  • 40'4" Wide x 52'0" Deep
Available Foundation Types:
  • Basement - * $395.00
  • Crawlspace
  • Slab - * $295.00

* May require additional drawing time.

Order Code: 00WEB

  • PDF File: $1,730.00
  • CAD File: $2,130.00
  • CAD File: $2,730.00
    Unlimited Build License issued on CAD File orders.
  • Right Reading (True) Reverse: $295.00
    All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.

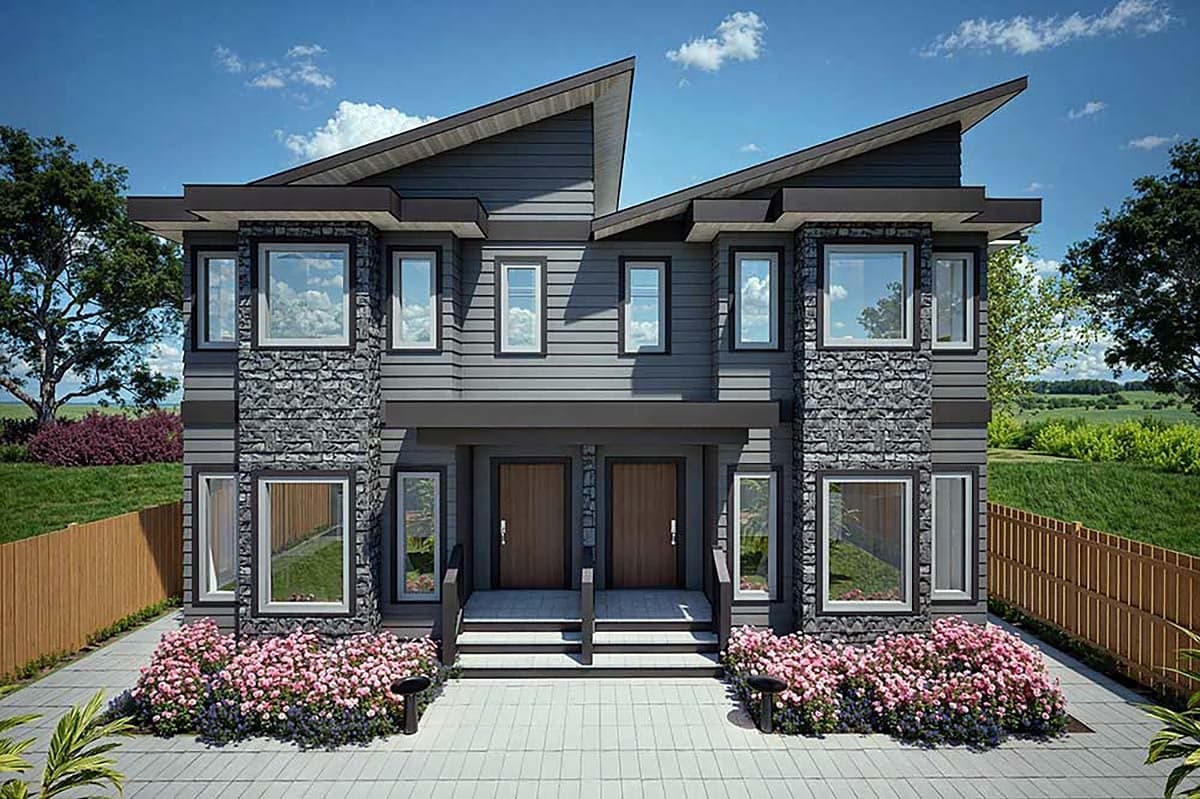

Plan Number 84634 | Order Code: 00WEB | Elevation

Reverse Plan

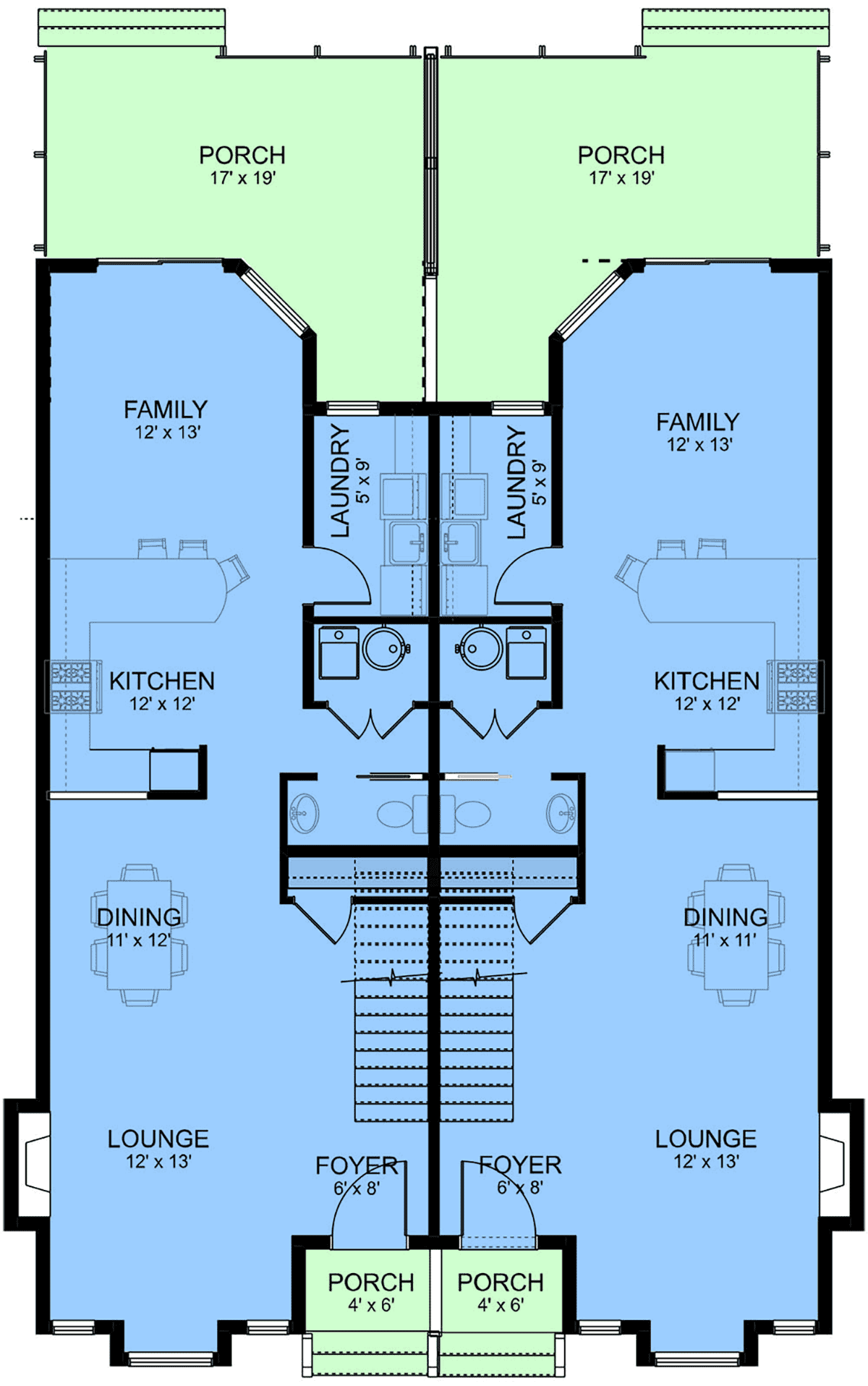

Plan Number 84634 | Order Code: 00WEB | First Floor Plan

Reverse Plan

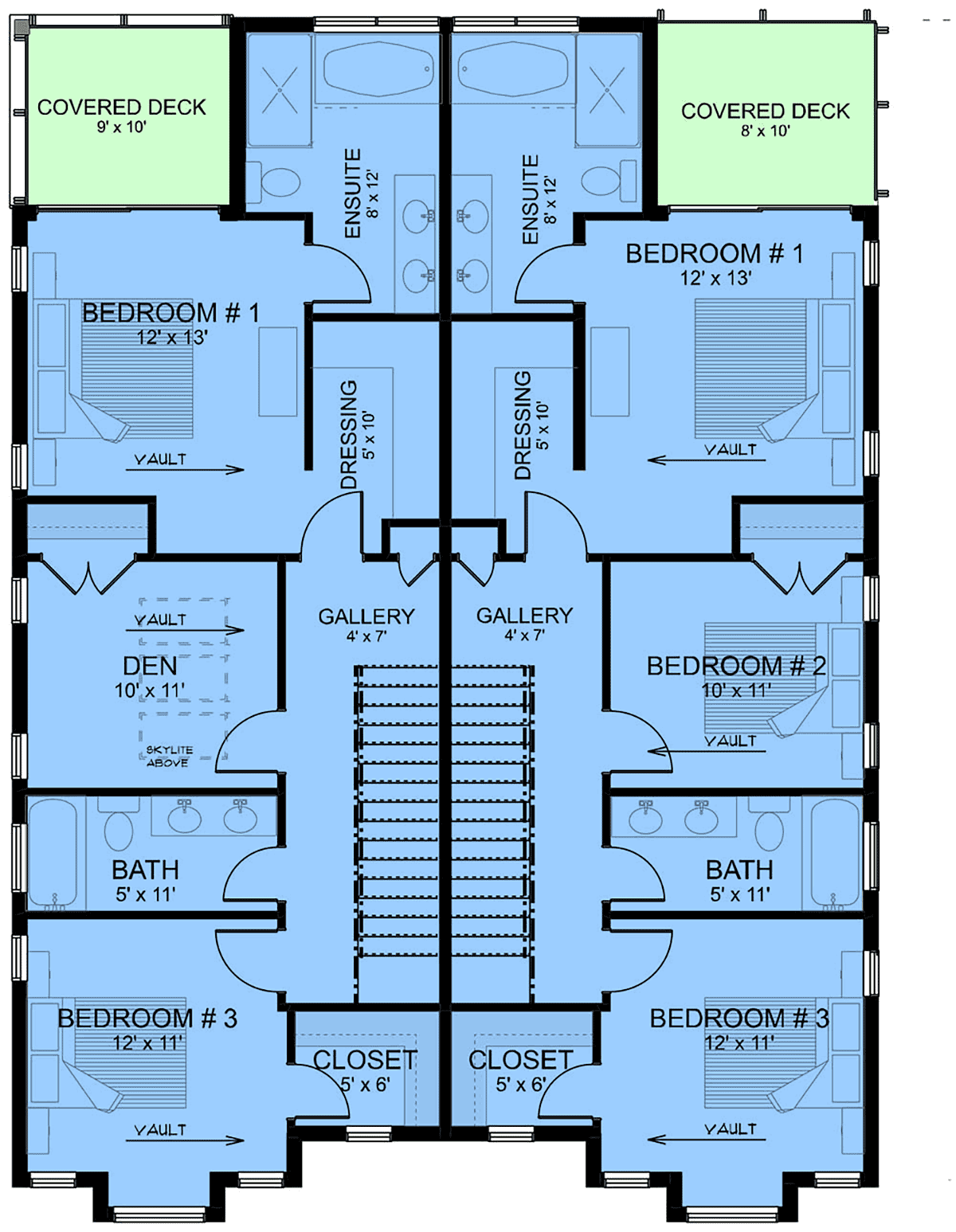

Plan Number 84634 | Order Code: 00WEB | Second Floor Plan

Reverse Plan

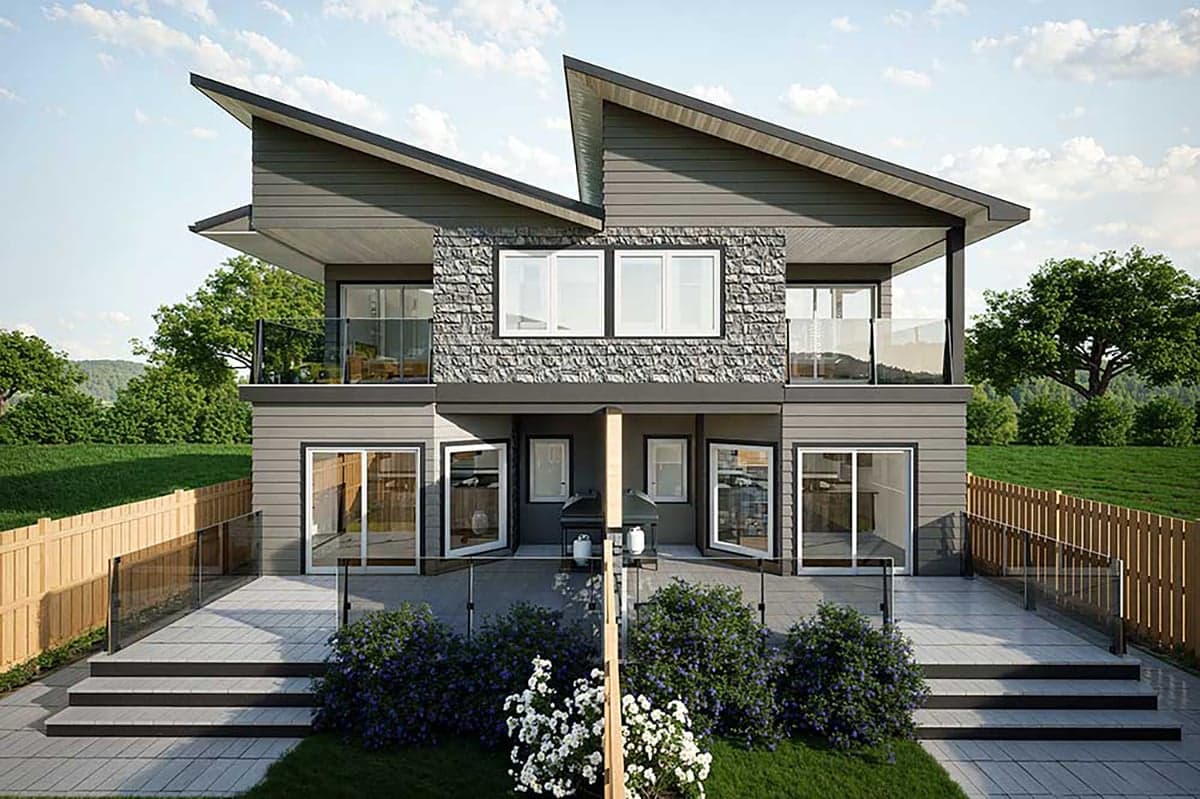

Plan Number 84634 | Order Code: 00WEB | Rear Elevation

Plan Number 84634 Specifications:

  • Total Living Area: 4031
  • Main Living Area: 2311
  • Upper Living Area: 1720
  • Garage Type: None
  • House Width: 40'4"
  • House Depth: 52'0"
  • Number of Stories: 2
  • Bedrooms: 5
  • Full Baths: 4
  • Half Baths: 2
  • Max Ridge Height: 27'4" from Front Door Floor Level
  • Primary Roof Pitch: 4:12
  • Roof Framing: Truss
  • Porch: 517 sq ft
  • Deck: 81 sq ft
  • FirePlace: Yes
  • Main Ceiling Height: 9'
  • Upper Ceiling Height: 8'

Available Foundation Types:

  • Basement - $395.00 Total Living Area may increase with Basement Foundation option - please call to confirm before ordering.
  • Crawlspace
  • Slab - $295.00

Plan Number 84634 Plan Pricing:

  • PDF File: $1,730.00
  • PDF File Unlimited Build: $2,430.00
  • CAD File: $2,130.00
  • CAD File: $2,730.00
    Unlimited Build License issued on CAD File orders.
  • Right Reading (True) Reverse: $295.00
    All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
Plan Number 84634 | Order Code: 00WEB | Specifications and Pricing
COOLhouseplans.com
800-482-0464

Plan Modifications

Plan modification is a way of turning a stock plan into your unique custom plan. It's still just a small fraction of the price you would pay to create a home plan from scratch. You will receive a FREE, no obligation, modification estimate to get exactly the home plan you've been dreaming of. Simply contact the modification department 1 of 3 ways:

Call 866-465-5866 and talk to a live person that can give you and FREE modification estimate over the phone!

Email Us - Please Include your telephone number, plan number, foundation type, state you are building in and a specific list of changes.

Fax: 651-602-5050 - Make sure to include a cover sheet with your contact info. Make attention to the COOLhouseplans.com Modification Department.

Plan Number 84634 | Order Code: 00WEB | Specifications and Pricing
COOLhouseplans.com
800-482-0464

COPYRIGHT NOTICE. It is illegal to build this plan without a legally obtained set of plans. It is illegal to copy or redraw these plans. Violation of U.S. copyright laws are punishable with fines of up to $200,000. After the purchase of plans, changes may be made by a qualified professional.
