Plan Number: 84636

  • 3158 Total Living Area
  • 1860 Main Level
  • 1298 Upper Level
  • 4 Bedrooms
  • 3 Full Bath(s)
  • 1 Half Bath(s)
  • 2 Car Garage
  • 55'6" Wide x 63'9" Deep
Available Foundation Types:
  • Basement - * $395.00
  • Crawlspace
  • Slab - * $295.00

* May require additional drawing time.

Order Code: 00WEB

  • PDF File: $1,430.00
  • CAD File: $1,830.00
  • CAD File: $2,430.00
    Unlimited Build License issued on CAD File orders.
  • Right Reading (True) Reverse: $295.00
    All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.

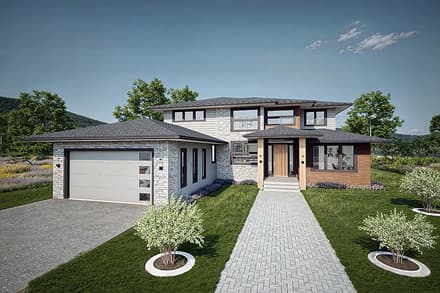

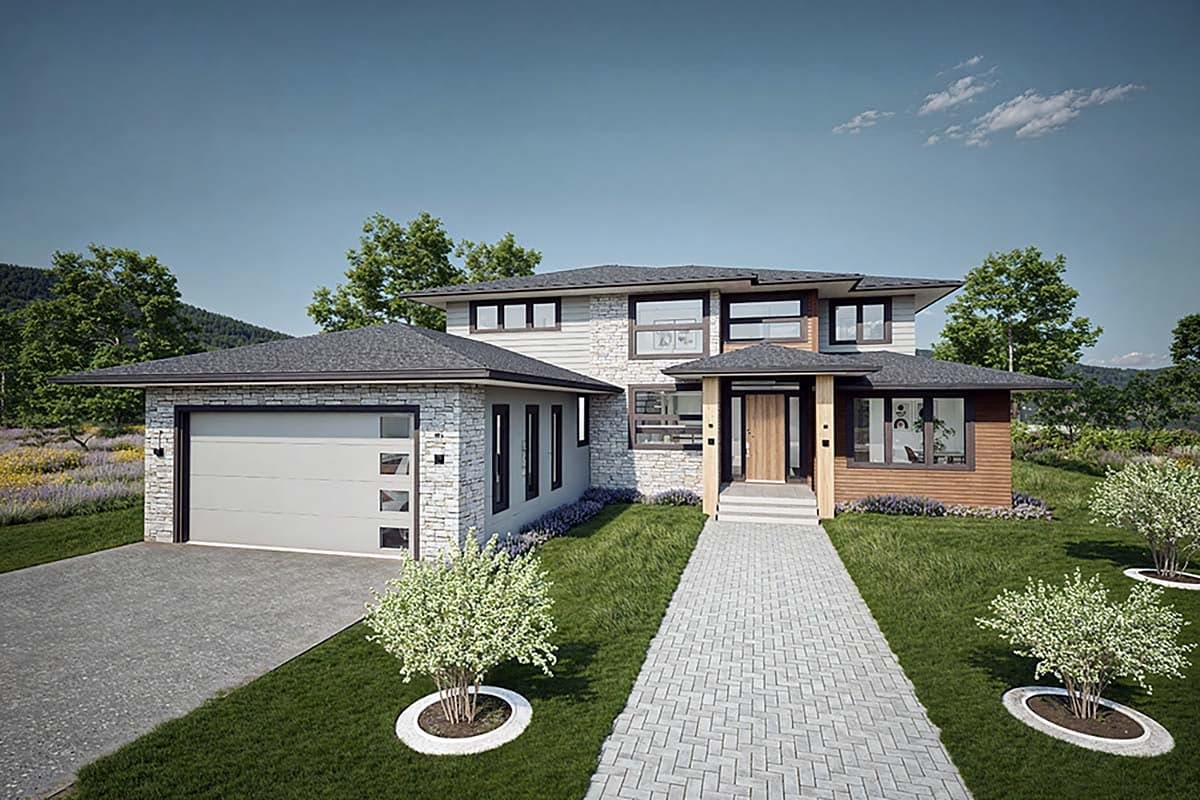

Plan Number 84636 | Order Code: 00WEB | Elevation

Reverse Plan

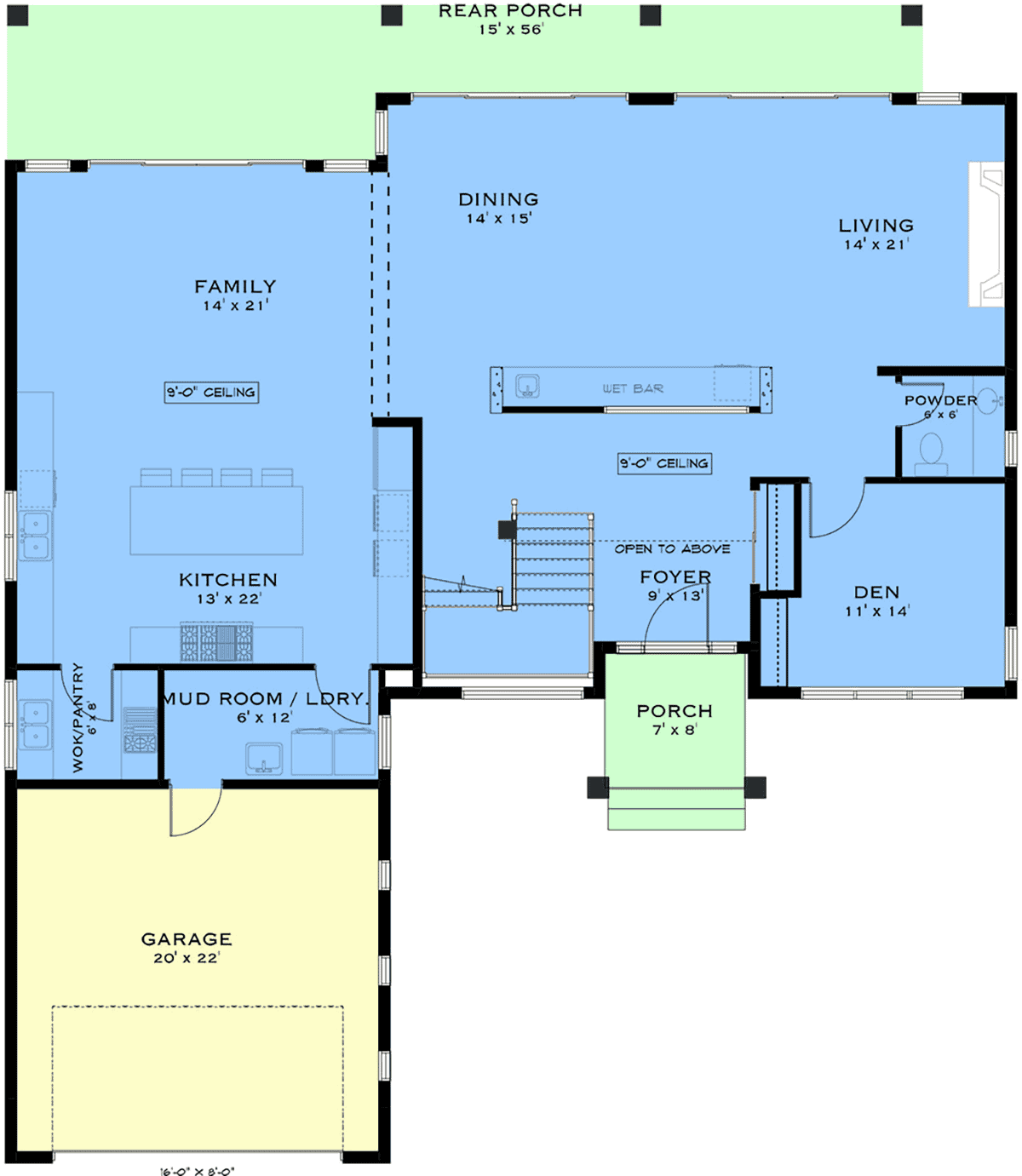

Plan Number 84636 | Order Code: 00WEB | First Floor Plan

Reverse Plan

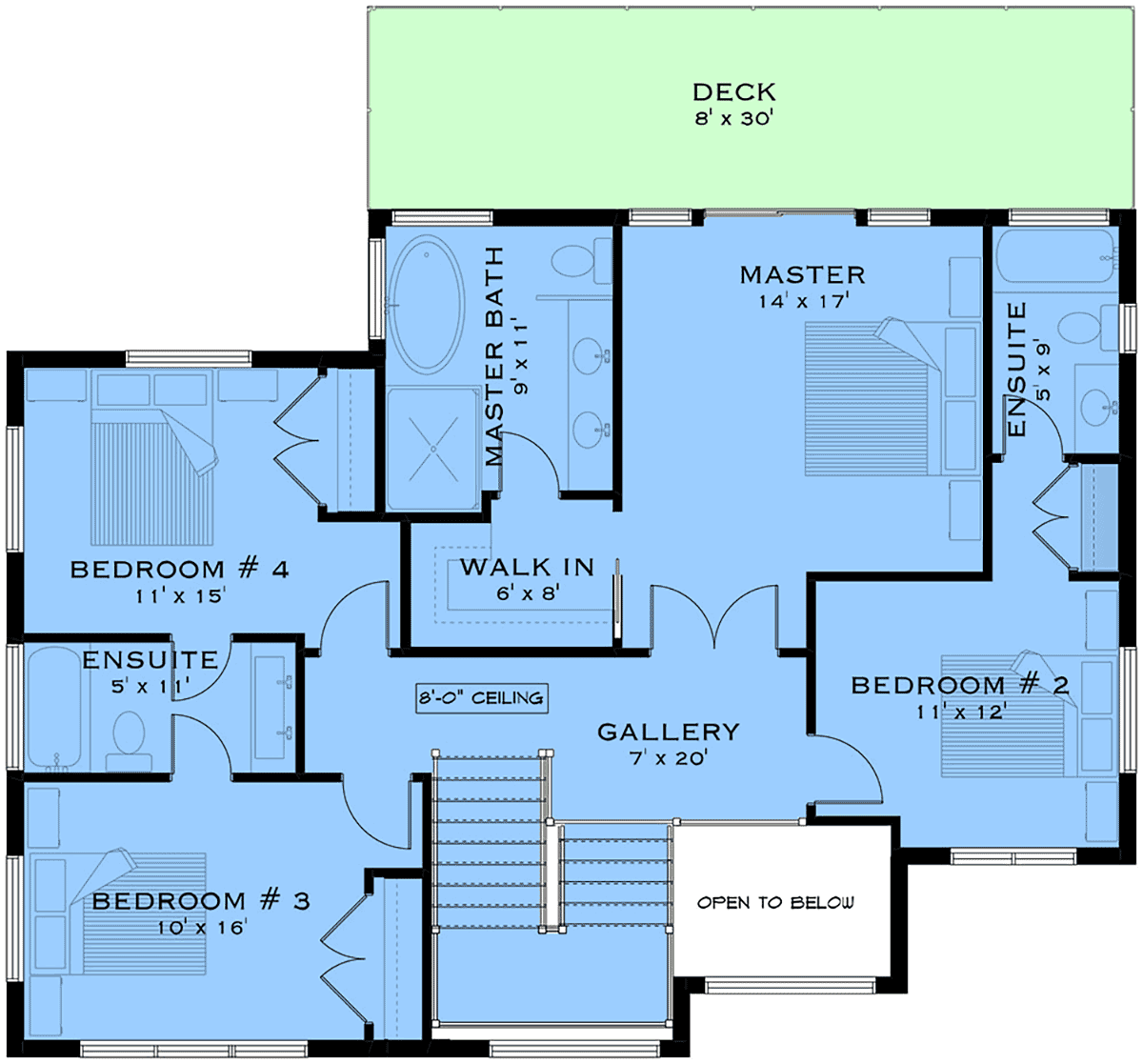

Plan Number 84636 | Order Code: 00WEB | Second Floor Plan

Reverse Plan

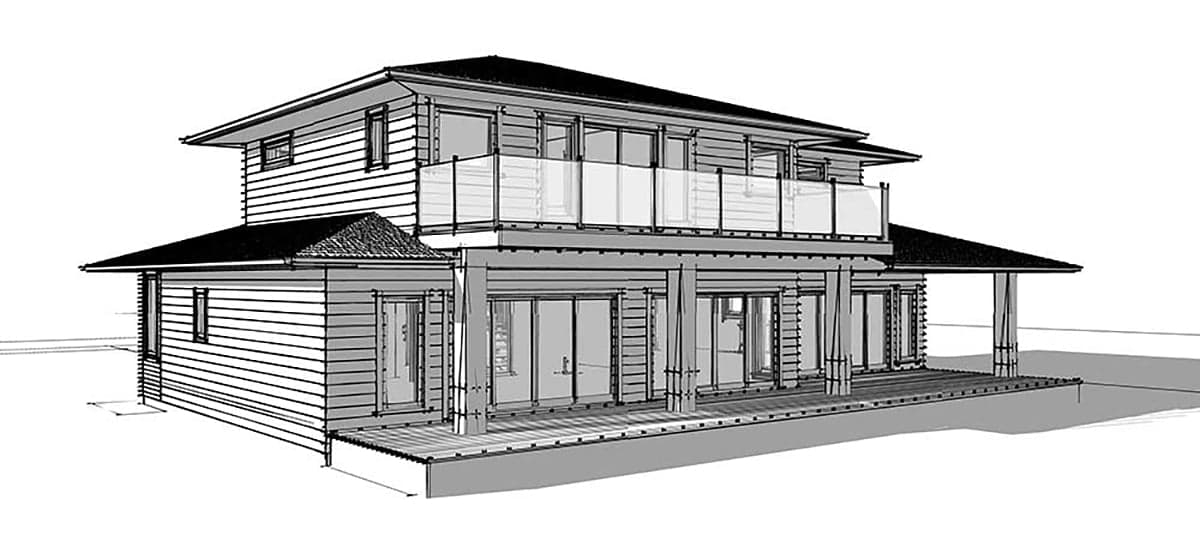

Plan Number 84636 | Order Code: 00WEB | Rear Elevation

Plan Number 84636 Specifications:

  • Total Living Area: 3158
  • Main Living Area: 1860
  • Upper Living Area: 1298
  • Garage Area: 441
  • Garage Type: Attached
  • Garage Bays: 2
  • House Width: 55'6"
  • House Depth: 63'9"
  • Number of Stories: 2
  • Bedrooms: 4
  • Full Baths: 3
  • Half Baths: 1
  • Max Ridge Height: 25'0" from Front Door Floor Level
  • Primary Roof Pitch: 4:12
  • Roof Framing: Truss
  • Porch: 754 sq ft
  • Deck: 240 sq ft
  • FirePlace: Yes
  • Main Ceiling Height: 9'
  • Upper Ceiling Height: 8'

Available Foundation Types:

  • Basement - $395.00 Total Living Area may increase with Basement Foundation option - please call to confirm before ordering.
  • Crawlspace
  • Slab - $295.00

Plan Number 84636 Plan Pricing:

  • PDF File: $1,430.00
  • PDF File Unlimited Build: $2,130.00
  • CAD File: $1,830.00
  • CAD File: $2,430.00
    Unlimited Build License issued on CAD File orders.
  • Right Reading (True) Reverse: $295.00
    All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
