Plan Number: 90742

  • 2504 Total Living Area
  • 1468 Main Level
  • 1036 Upper Level
  • 4 Bedrooms
  • 2 Full Bath(s)
  • 1 Half Bath(s)
  • 3 Car Garage
  • 63'8 Wide x 52' Deep
Available Foundation Types:
  • Basement
  • Crawlspace - * $150.00
  • Slab - * $150.00
  • Walkout Basement - * $150.00

* May require additional drawing time.

Order Code: 00WEB

  • PDF File: $1,145.00
  • 5 Sets: $1,295.00
  • 5 Sets plus PDF File: $1,395.00
  • CAD File: $2,145.00
    Unlimited Build License issued on CAD File orders.
  • Right Reading (True) Reverse: $150.00
    All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
  • Additional Sets: $50.00

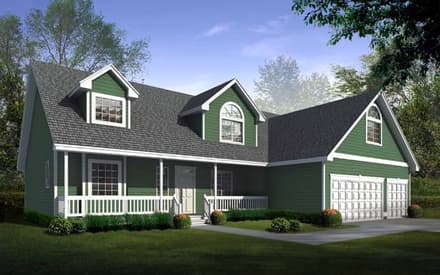

Plan Number 90742 | Order Code: 00WEB | Elevation

Reverse Plan

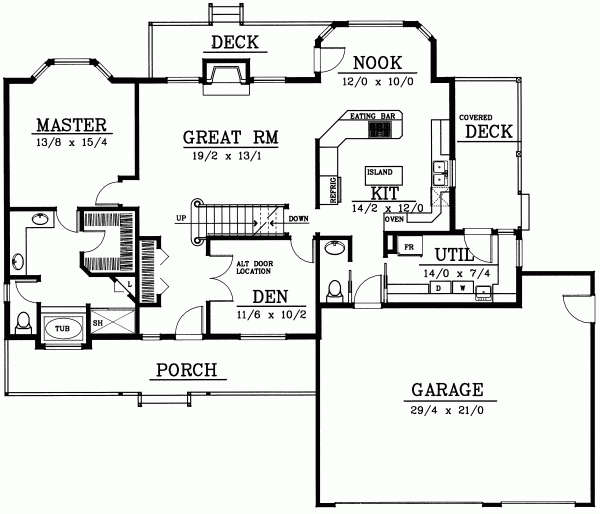

Plan Number 90742 | Order Code: 00WEB | First Floor Plan

Reverse Plan


Plan Number 90742 | Order Code: 00WEB | Second Floor Plan

Reverse Plan


Plan Number 90742 | Order Code: 00WEB | Rear Elevation

Plan Number 90742 Specifications:

  • Total Living Area: 2504
  • Main Living Area: 1468
  • Upper Living Area: 1036
  • Bonus Area: 401
  • Unfinished Basement Area: 1468
  • Garage Area: 670
  • Garage Type: Attached
  • Garage Bays: 3
  • House Width: 63'8
  • House Depth: 52'
  • Number of Stories: 2
  • Bedrooms: 4
  • Full Baths: 2
  • Half Baths: 1
  • Max Ridge Height: 25'4 from Front Door Floor Level
  • Primary Roof Pitch: 10:12
  • Roof Load: 35 psf
  • Roof Framing: Truss
  • Porch: 281 sq ft
  • FirePlace: Yes
  • 1st Floor Master: Yes
  • Main Ceiling Height: 9'
  • Upper Ceiling Height: 8'

Available Foundation Types:

  • Basement
  • Crawlspace - $150.00
  • Slab - $150.00
  • Walkout Basement - $150.00 Total Living Area may increase with Basement Foundation option - please call to confirm before ordering.

Plan Number 90742 Plan Pricing:

  • PDF File: $1,145.00
  • 5 Sets: $1,295.00
  • 5 Sets plus PDF File: $1,395.00
  • CAD File: $2,145.00
    Unlimited Build License issued on CAD File orders.
  • Right Reading (True) Reverse: $150.00
    All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
  • Additional Sets: $50.00

basement is raised at rear for exposed windows as in elevation

Plan Number 90742 | Order Code: 00WEB | Specifications and Pricing
COOLhouseplans.com
800-482-0464

Plan Modifications

We cannot provide modification estimates for this plan. Sorry for the inconvenience. Your builder may be able to "redline" in the changes you would like to make to the printed sets.
