Family Home Plans - Better Living By Good Design

Plan Number 94480 | Order Code: 00WEB

COOLhouseplans.com
800-482-0464

Plan Number: 94480

  • 1768 Total Living Area
  • 884 Main Level
  • 4 Bedrooms
  • 2 Full Bath(s)
  • 52'0 Wide x 34'0 Deep
Available Foundation Types:
  • Crawlspace
  • Slab

Order Code: 00WEB

  • PDF File: $900.00
  • 5 Sets: $600.00
  • 8 Sets: $675.00
  • Reproducible Set: $900.00
  • CAD File: $1,100.00
  • Right Reading (True) Reverse: $50.00
    All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
  • Additional Sets: $50.00

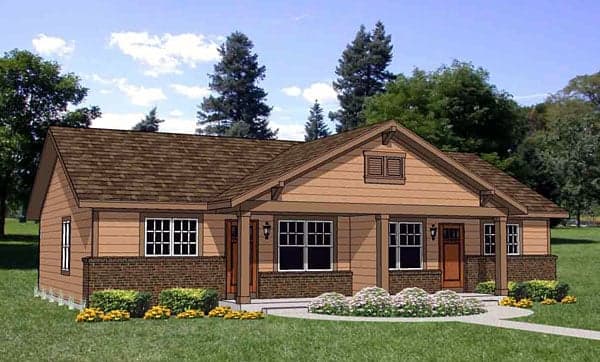

Plan Number 94480 | Order Code: 00WEB | Elevation

Reverse Plan

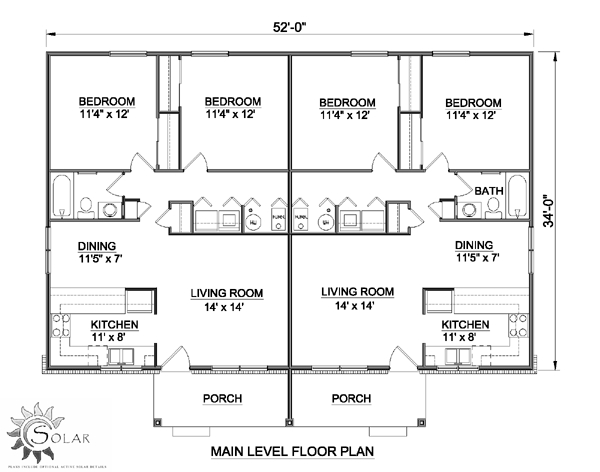

Plan Number 94480 | Order Code: 00WEB | First Floor Plan

Reverse Plan

Plan Number 94480 Specifications:

  • Total Living Area: 1768
  • Main Living Area: 884
  • Garage Type: None
  • House Width: 52'0
  • House Depth: 34'0
  • Number of Stories: 1
  • Bedrooms: 4
  • Full Baths: 2
  • Max Ridge Height: 19'0 from Front Door Floor Level
  • Primary Roof Pitch: 6:12
  • Roof Load: 30 psf
  • Roof Framing: Truss
  • Porch: 81 sq ft
  • 1st Floor Master: Yes
  • Main Ceiling Height: 8'0

Available Foundation Types:

  • Crawlspace
  • Slab

Plan Number 94480 Plan Pricing:

  • PDF File: $900.00
  • 5 Sets: $600.00
  • 8 Sets: $675.00
  • Reproducible Set: $900.00
  • 5 Sets plus PDF File: $0.00
  • CAD File: $1,100.00
  • Right Reading (True) Reverse: $50.00
    All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
  • Additional Sets: $50.00

This traditional duplex features two bedrooms and a full bath in each unit. The covered front porch is partitioned fr a sense of privacy for each unit. the large living room flwos into the seperate dining area. A U-shaped kitchen with snack bar overlooks the dining area. The laundry is conviently locatd in the bedroom area. The two large bedrooms feature generous closet space.

Plan Number 94480 | Order Code: 00WEB | Specifications and Pricing
COOLhouseplans.com
800-482-0464

Plan Modifications

Receive a FREE modification estimate in one of 3 ways. Our modification team is ready to help you adjust any plan to fit your needs. The ReDesign process is simple and estimates are free!

1. Complete this On-Line Request Form

2. Print, complete and fax this PDF Form to us at 1-800-675-4916.

3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.

Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.

We Work Fast!

When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!

We look forward to hearing from you!

Start today planning for tomorrow!

Plan Number 94480 | Order Code: 00WEB | Specifications and Pricing
COOLhouseplans.com
800-482-0464

COPYRIGHT NOTICE. It is illegal to build this plan without a legally obtained set of plans. It is illegal to copy or redraw these plans. Violation of U.S. copyright laws are punishable with fines of up to $200,000. After the purchase of plans, changes may be made by a qualified professional.
