Plan Number: 76023

  • 1 Half Bath(s)
  • 3 Car Garage
  • 54' Wide x 40' Deep
Available Foundation Types:
  • Slab

Order Code: 00WEB

  • PDF File: $545.00
  • Materials List: $70.00
  • Right Reading (True) Reverse: $145.00
    All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.

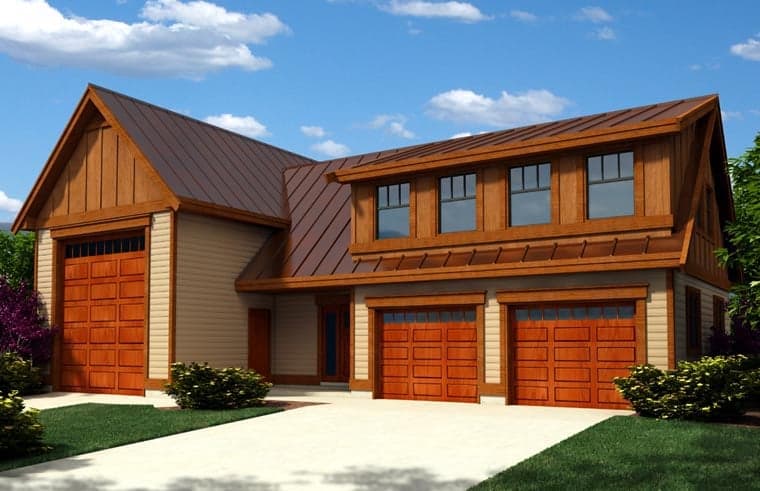

Plan Number 76023 | Order Code: 00WEB | Elevation

Reverse Plan

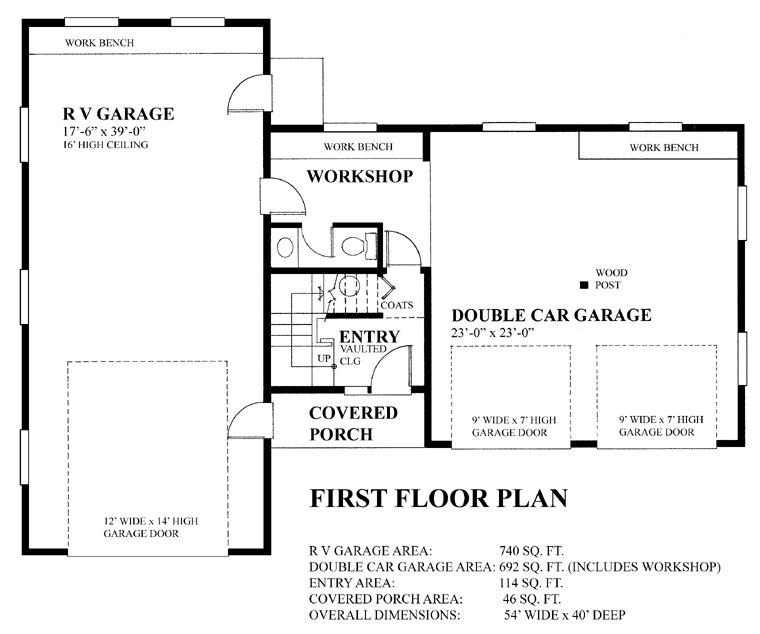

Plan Number 76023 | Order Code: 00WEB | First Floor Plan

Reverse Plan


Plan Number 76023 | Order Code: 00WEB | Second Floor Plan

Reverse Plan

Plan Number 76023 Specifications:

  • Bonus Area: 759
  • Garage Area: 1432
  • Garage Type: Detached
  • Garage Bays: 3
  • House Width: 54'
  • House Depth: 40'
  • Number of Stories: 2
  • Half Baths: 1
  • Max Ridge Height: 26'2 from Front Door Floor Level
  • Primary Roof Pitch: 12:12
  • Roof Load: 32 psf
  • Roof Framing: Truss
  • Porch: 46 sq ft
  • Main Ceiling Height: 8'
  • Upper Ceiling Height: 8'

Available Foundation Types:

  • Slab

Plan Number 76023 Plan Pricing:

  • PDF File: $545.00
  • Materials List: $70.00
  • Right Reading (True) Reverse: $145.00
    All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.

RV Garage 16'
2nd floor kneewall 4'2

Plan Number 76023 | Order Code: 00WEB | Specifications and Pricing
COOLhouseplans.com
800-482-0464

Plan Modifications

Receive a FREE modification estimate in one of 3 ways. Our modification team is ready to help you adjust any plan to fit your needs. The ReDesign process is simple and estimates are free!

1. Complete this On-Line Request Form

2. Print, complete and fax this PDF Form to us at 1-800-675-4916.

3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.

Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.

We Work Fast!

When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!

We look forward to hearing from you!

Start today planning for tomorrow!
