Plan 78664 Order Code: C101
1 Car Garage Plan 78664
396 Sq Ft
Thumbnails: ON | OFF
Quick Specs
396 Total Living Area396 Upper Level
1 Car Garage
18'0 W x 25'0 D
Quick Pricing
PDF Study Set: $594.00PDF File: $770.00
5 Sets: $550.00
8 Sets: $638.00
CAD File: $1,078.00
Plan Specifications
Specifications
| Total Living Area: | 396 sq ft |
| Upper Living Area: | 396 sq ft |
| Garage Area: | 450 sq ft |
| Garage Type: | Drive Under |
| Garage Bays: | 1 |
| Foundation Types: | Slab |
| Exterior Walls: | 2x4 |
| House Width: | 18'0 |
| House Depth: | 25'0 |
| Number of Stories: | 2 |
| Max Ridge Height: | 23'4 from Front Door Floor Level |
| Primary Roof Pitch: | 8:12 |
| Roof Load: | 30 psf |
| Roof Framing: | Stick |
| Main Ceiling Height: | 8'0 |
Plan Package Pricing
Pricing
Available Foundation Types:
Available Exterior Wall Types:
Prices subject to approval prior to fulfillment.What's Included?
What is Included in this House Plan?
Cover Sheet: Including 3-D perspectives of the exterior of the house. Also protects the rest of the documents within the project set.Foundation: Complete with dimensions, dimensioned plumbing and referenced details
Elevations: Complete with dimensions, ridge heights and special notes and materials
Floor Plan(s): Complete with dimensions of all elements including plumbing, appliances and cabinet sizes. Applicable notes of special conditions are tailored with the tradesmen in mind.
Roof Plan: Complete with dimensions, plate heights, roof pitches and notes for special conditions, as well as a Roof Square footage table for Calculating roof materials.
Rafter plan: Complete with rafter lengths and separate rafter cut list. for accurate estimation of materials. This also aids the framer in selecting the correct lengths to use in order to minimize waste.
Details: Applicable Cornice (Eve) and Special Details designed directly from the plan (not typical details that are reused for every plan produced). We do this to improve the accuracy and integrity that should be expected from quality set of plans.
Interior Elevations: Including applicable cabinets, electrical, and special construction notes.
Floor joist: Complete with spans, sizes and direction (if applicable).
Ceiling Joist: Complete with spans, sizes and direction Sections: Complete with dimensions, notes and Specifications
Electrical Plan: Complete with layout, Light fixtures, Outlets and legend.
Plan Modifications
Want to make changes?
Receive a FREE modification estimate in one of 3 ways. Our modification team is ready to help you adjust any plan to fit your needs. The ReDesign process is simple and estimates are free!1. Complete this On-Line Request Form
2. Print, complete and fax this PDF Form to us at 1-800-675-4916.
3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.
Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.
We Work Fast!
When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!
We look forward to hearing from you!
Start today planning for tomorrow!
Cost To Build
What will it cost to build your new home?
Let us help you find out!
Accurate. Fast. Trusted.
Construction Cost Estimates That Save You Time and Money.
$29.95 per plan
** Available for U.S. and Canada
With your 30-day online cost-to-build estimate you can start enjoying these benefits today.
- INSTANT RESULTS: Immediate turnaround—no need to wait days for a cost report.
- RELIABLE: Gain peace of mind and confidence that comes with a reliable cost estimate for your custom home.
- INTERACTIVE: Instantly see how costs change as you vary design options and quality levels of materials!
- REDUCE RISK: Minimize potential cost overruns by becoming empowered to make smart design decisions. Get estimates that save thousands in costly errors.
- PEACE OF MIND: Take the financial guesswork out of building your dream home.
- DETAILED COSTING: Detailed, data-backed estimates with +/-120 lines of costs / options for your project.
- EDITABLE COSTS: Edit the line-item labor & material price with the “Add/Deduct” field if you want to change a cost.
Home-Cost.com’s INSTANT™ Cost-To-Build Report also provides you these added features and capabilities:
Previous Q & A
Previous Questions and Answers
Q: Are there any other images or actual photos available for this plan? Thank you!
A: No, I do not.
Common Questions:
Q: Can I make modifications to this plan?
A: Yes you can! Please click the "Modifications" tab above to get more information.
Q: What is the estimated price to build this plan?
A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
Our Low Price Guarantee
If you find the exact same plan featured on a competitor's web site at a lower price, advertised OR special SALE price, we will beat the competitor's price by 5% of the total, not just 5% of the difference! To take advantage of our guarantee, please call us at 800-482-0464 or email us the website and plan number when you are ready to order. Our guarantee extends up to 4 weeks after your purchase, so you know you can buy now with confidence.
Call 800-482-0464
The COOL™ house plans company
COOLest house plans on the internet!
Elevation

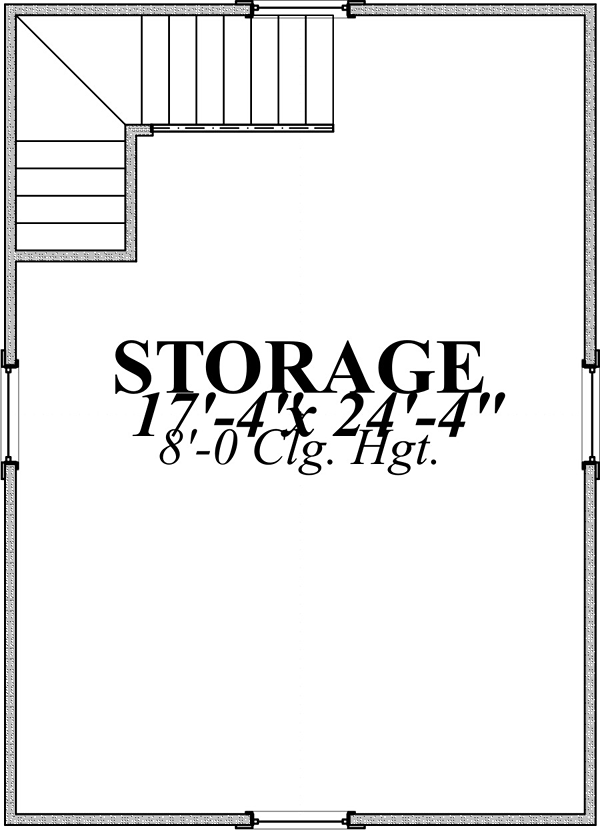

Level One
