Traditional Style Multi-Family Plan 100611

Specifications

Total Living Area:	4096 sq ft
Main Living Area:	1638 sq ft
Upper Living Area:	2458 sq ft
Garage Area:	820 sq ft
Garage Type:	Attached
Garage Bays:	4
Foundation Types:	Slab
Exterior Walls:	2x4 2x6 - * $195.00
House Width:	54'0"
House Depth:	50'0"
Number of Stories:	2
Bedrooms:	8
Full Baths:	6
Half Baths:	2
Max Ridge Height:	28'5" from Front Door Floor Level
Primary Roof Pitch:	6:12
Roof Load:	30 psf
Roof Framing:	Truss and/or Stick
Porch:	226 sq ft
2nd Floor Laundry:	Yes
Main Ceiling Height:	9'
Upper Ceiling Height:	8'

* May require additional drawing time.

Special Features:

• Entertaining Space
• Front Porch
• Open Floor Plan
• Pantry
• Rear Porch
• Storage Space

Pricing

• PDF File Unlimited Build: $1,095.00
  Unlimited Build License issued on PDF File Unlimited Build orders.
• CAD File Unlimited Build: $1,390.00
  Unlimited Build License issued on CAD File Unlimited Build orders.
• Right Reading (True) Reverse: $195.00
  All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.

Available Foundation Types:

• Slab : No Additional Fee

Available Exterior Wall Types:

• 2x4: No Additional Fee
• 2x6: $195.00
  (Please call for drawing time.)

Prices subject to approval prior to fulfillment.

• Shipping Policy

What is Included in this House Plan?

Cover Page
Each home plan features the front elevation and informative reference sections including general notes and design criteria.

Elevations
Drafted at ¼" scale for the front and 1/8" scale for the rear and sides. All elevations are detailed and an aerial view of the roof is provided, showing all hips, valleys, ridges and framing.

Foundations
Drafted at ¼" - 1' scale. This plan is designed as a slab foundation. Optional basement or crawl space foundations are available. Basement foundations may require additional engineering for steel beam sizes.

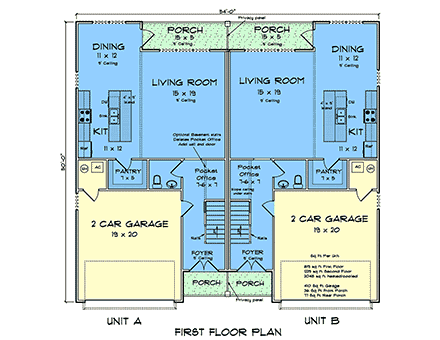

Main Level Floor Plan
Drafted at ¼" scale. 2" x 4" walls are standard. The detailed drawings include such things as ceiling treatments and header locations.

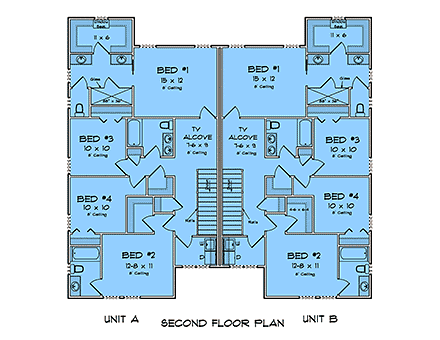

Second Level Floor Plan
