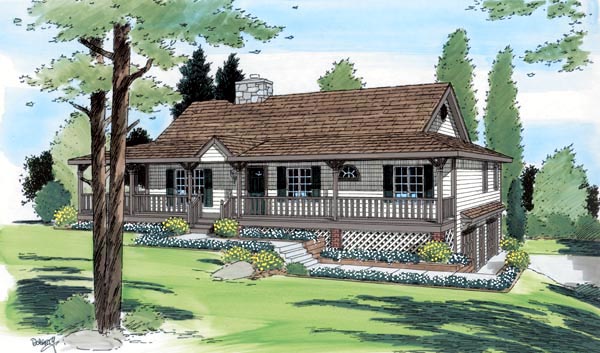

Although this design has an open floor plan layout, it still allows one to sense the separation between the different living areas. This separation is accomplished by the placement of the fireplace. Notice how effectively it defines the dining area. We also wanted to design a house where the “shell” was economical to build, i.e. a rectangular form, yet would still boast of some upscale features. The stone faced fireplace, vaulted ceilings and wood floors satisfy this requirement quite nicely. These features in themselves are not expensive, but together they add tremendously to the overall architectural satisfaction (see interior rendering). We have found that nothing beats a front porch for welcoming guests, relaxing or doubling as an outside playroom, and this house boasts a generous one. The porch even wraps the corner, which gives the front of the house more depth and visual interest. The basement also doubles as a 2-car garage and storage area.

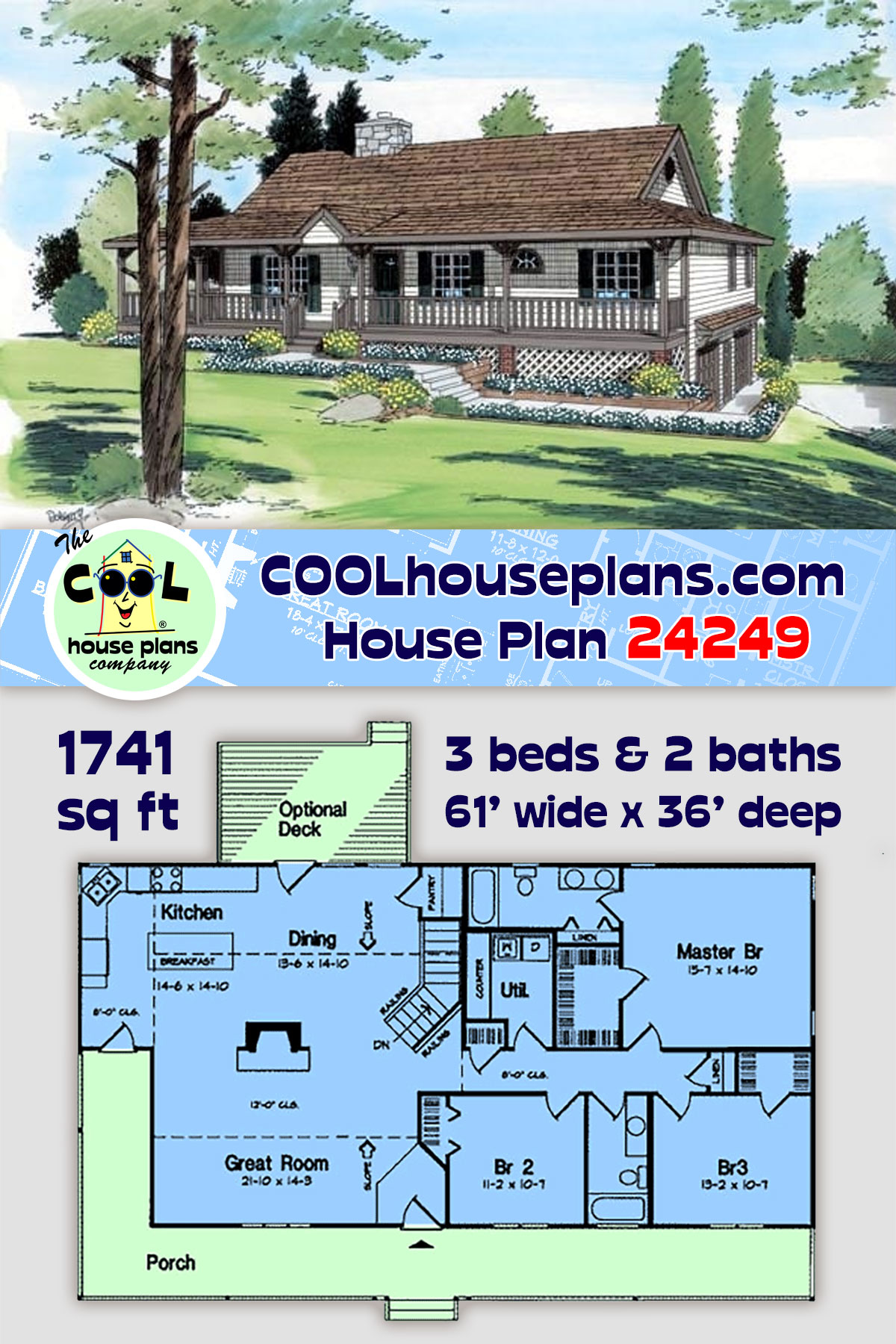

1741 Total Living Area 1741 Main Level 3 Bedrooms 2 Full Baths 2 Car Garage 61'0 W x 36'0 D
PDF Study Set: $800.00 PDF File: $1,000.00 1 Set: $800.00 5 Sets: $900.00 5 Sets plus PDF File: $1,100.00 8 Sets: $1,000.00
PDF Study Set: $800.00
Get your plans fast! A PDF Study Set is a complete set of plans stamped NOT FOR CONSTRUCTION. Not considered a license-to-build. Great for bidding purposes. Customer can upgrade within 90 days.
* This designer requires that a End User License Agreement be signed before fulfilling PDF and CAD File order.
CAD files do not include cover page. Will send PDF file with CAD order.
Pantry: 3'3 x 4'1
Utility: 7'2 x 9'6 (This overall width x depth include hall closet)
Master Bath: 12'6 x 5 (not including linen closet)
Guest Bath: 5' x 10'7
Plans are not to be sold in New Jersey or Maryland.
Available Foundation Types:

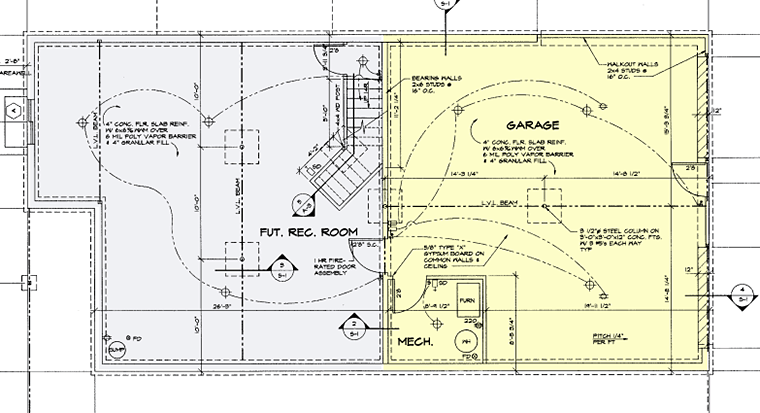

: No Additional Fee
Total Living Area may increase with Basement Foundation option - please call to confirm before ordering.
Available Exterior Wall Types:
No Additional Fee
2x6 (option noted on wall section only):
No Additional Fee
Exterior Elevations Scaled drawings of the front, rear, sides of the home. Information pertaining to the exterior finish materials, roof pitches and exterior height dimensions.
Typical Wall Section This section will address insulation, roof components, and interior and exterior wall finishes. Your plans will be designed with either 2x4 or 2x6 exterior walls, but most professional contractors can easily adapt the plans to the wall thickness you require.
Fireplace Details If the home you have chosen includes a fireplace, the fireplace detail will show typical methods to construct the firebox, hearth and flue chase for masonry units, or a wood frame chase for a zero-clearance unit. Available for most plans.
Foundation Plan These plans will accurately dimension the footprint of your home including load bearing points and beam placement if applicable. The foundation style will vary from plan to plan.
Roof Plan The information necessary to construct the roof will be included with your home plans. Some plans will reference roof trusses, while many others contain schematic framing plans. These framing plans will indicate the lumber sizes necessary for the rafters and ridgeboards based on the designated roof loads.
Typical Cross Section A cut-away cross-section through the entire home shows your building contractor the exact correlation of construction components at all levels of the house. It will help to clarify the load bearing points from the roof all the way down to the basement. Available for most plans.
Detailed Floor Plans The floor plans of your home accurately dimension the positioning of all walls, doors, windows, stairs and permanent fixtures. They will show you the relationship and dimensions of rooms, closets and traffic patterns. The schematic of the electrical layout may be included in the plan.
Stair Details If stairs are an element of the design you have chosen, the plans will show the necessary information to build these, either through a stair cross section, or on the floor plans.
Want to make changes?
Receive a FREE modification estimate in one of 3 ways. Our modification team is ready to help you adjust any plan to fit your needs. The ReDesign process is simple and estimates are free!
QUICK Cost-To-Build estimates have the following assumptions:
QUICK Cost-To-Build estimates are available for single family, stick-built, detached, 1 story, 1.5 story and 2 story home plans with attached or detached garages, pitched roofs on flat to gently sloping sites.
QUICK Cost-To-Build estimates are not available for specialty plans and construction such as garage / apartment, townhouse, multi-family, hillside, flat roof, concrete walls, log cabin, home additions, and other designs inconsistent with the assumptions outlined in Item 1 above.
User is able to select and have costs instantly calculate for slab on grade, crawlspace or full basement options.
User is able to select and have costs instantly calculate different quality levels of construction including Economy, Standard, Premium. View Quality Level Assumptions.
Estimate will dynamically adjust costs based on the home plan's finished square feet, porch, garage and bathrooms.
Estimate will dynamically adjust costs based on unique zip code for project location.
All home plans are based on the following design assumptions: 8 foot basement ceiling height, 9 foot first floor ceiling height, 8 foot second floor ceiling height (if used), gable roof; 2 dormers, average roof pitch is 12:12, 1 to 2 covered porches, porch construction on foundations.
Summarized cost report will provide approximately 70 lines of cost detail within the following home construction categories: Site Work, Foundations, Basement (if used), Exterior Shell, Special Spaces (Kitchen, Bathrooms, etc), Interior Construction, Elevators, Plumbing, Heating / AC, Electrical Systems, Appliances, Contractor Markup. View a LIVE Sample Cost Report.
QUICK Cost-To-Build generates estimates only. It is highly recommend that one employs a local builder in order to get a more accurate construction cost.
All costs are "installed costs" including material, labor and sales tax.
* Limit one $29.95 credit per complete plan package order.
** Available for U.S. only.
Previous Q & A
Q:Can I make modifications to this plan?
A:Yes you can! Please click the "Modifications" tab above to get more information.
Q:What is the estimated price to build this plan?
A:The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
