Victorian Style House Plan 24718

Specifications

Total Living Area:	1452 sq ft
Main Living Area:	1452 sq ft
Garage Area:	584 sq ft
Garage Type:	Attached
Garage Bays:	2
Foundation Types:	Crawlspace Slab
Exterior Walls:	2x4 2x6 (option noted on wall section only)
House Width:	67'
House Depth:	47'
Number of Stories:	1
Bedrooms:	3
Full Baths:	2
Max Ridge Height:	21' from Front Door Floor Level
Primary Roof Pitch:	8:12
Roof Load:	45 psf
Roof Framing:	Stick
Porch:	281 sq ft
Formal Dining Room:	Yes
FirePlace:	Yes
1st Floor Master:	Yes
Main Ceiling Height:	8'

Pricing

• PDF Study Set: $700.00
  Get your plans fast! A PDF Study Set is a complete set of plans stamped NOT FOR CONSTRUCTION. Not considered a license-to-build. Great for bidding purposes. Customer can upgrade within 90 days.
• PDF File: $900.00
• 1 Set: $700.00
• 5 Sets: $800.00
• 5 Sets plus PDF File: $1,000.00
• CAD File: $1,600.00
  Single Build License issued on CAD File orders.
• Concerning PDF or CAD File Orders: Designer requires that a End User License Agreement be signed before fulfilling PDF and CAD File order.
• Materials List: $150.00
• Right Reading (True) Reverse: $100.00
  All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
• Additional Sets: $50.00

Plans are not to be sold in New Jersey or Maryland.

Available Foundation Types:

• Crawlspace : No Additional Fee
• Slab : No Additional Fee

Available Exterior Wall Types:

• 2x4: No Additional Fee
• 2x6 (option noted on wall section only): No Additional Fee

Prices subject to approval prior to fulfillment.

• Shipping Policy

What is Included in this House Plan?

Exterior Elevations Scaled drawings of the front, rear, sides of the home. Information pertaining to the exterior finish materials, roof pitches and exterior height dimensions.

Typical Wall Section This section will address insulation, roof components, and interior and exterior wall finishes. Your plans will be designed with either 2x4 or 2x6 exterior walls, but most professional contractors can easily adapt the plans to the wall thickness you require.

Fireplace Details If the home you have chosen includes a fireplace, the fireplace detail will show typical methods to construct the firebox, hearth and flue chase for masonry units, or a wood frame chase for a zero-clearance unit. Available for most plans.

Foundation Plan These plans will accurately dimension the footprint of your home including load bearing points and beam placement if applicable. The foundation style will vary from plan to plan.

Roof Plan The information necessary to construct the roof will be included with your home plans. Some plans will reference roof trusses, while many others contain schematic framing plans. These framing plans will indicate the lumber sizes necessary for the rafters and ridgeboards based on the designated roof loads.

Typical Cross Section A cut-away cross-section through the entire home shows your building contractor the exact correlation of construction components at all levels of the house. It will help to clarify the load bearing points from the roof all the way down to the basement. Available for most plans.

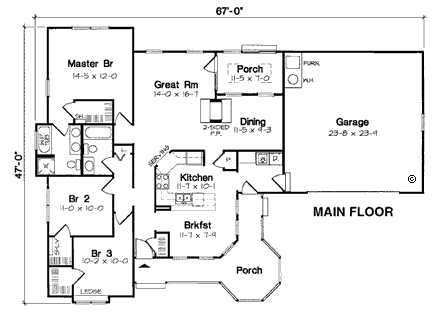

Detailed Floor Plans The floor plans of your home accurately dimension the positioning of all walls, doors, windows, stairs and permanent fixtures. They will show you the relationship and dimensions of rooms, closets and traffic patterns. The schematic of the electrical layout may be included in the plan.

Stair Details If stairs are an element of the design you have chosen, the plans will show the necessary information to build these, either through a stair cross section, or on the floor plans.

Want to make changes?

Plan modification is a way of turning a stock plan into your unique custom plan. It's still just a small fraction of the price you would pay to create a home plan from scratch. You will receive a FREE, no obligation, modification estimate to get exactly the home plan you've been dreaming of. Simply contact the modification department 1 of 3 ways:

Call 866-465-5866 and talk to a live person that can give you and FREE modification estimate over the phone!

Email Us - Please Include your telephone number, plan number, foundation type, state you are building in and a specific list of changes.

Fax: 651-602-5050 - Make sure to include a cover sheet with your contact info. Make attention to the COOLhouseplans.com Modification Department.

What will it cost to build your new home?
Let us help you find out!

• COOLhouseplans.com has partnered with Home-Cost.com to provide you the most accurate, interactive online estimator available. Home-Cost.com is a proven leader in residential cost estimating software for over 20 years.
• No Risk Offer: Order your Home-Cost Estimate now for just $29.95! We will provide you with a discount code in your receipt for when you decide to order any plan on our website than will more than pay you back for ordering an estimate.

Accurate. Fast. Trusted.
Construction Cost Estimates That Save You Time and Money.

With your 30-day online cost-to-build estimate you can start enjoying these benefits today.

• INSTANT RESULTS: Immediate turnaround—no need to wait days for a cost report.
• RELIABLE: Gain peace of mind and confidence that comes with a reliable cost estimate for your custom home.
• INTERACTIVE: Instantly see how costs change as you vary design options and quality levels of materials!
• REDUCE RISK: Minimize potential cost overruns by becoming empowered to make smart design decisions. Get estimates that save thousands in costly errors.
• PEACE OF MIND: Take the financial guesswork out of building your dream home.
• DETAILED COSTING: Detailed, data-backed estimates with +/-120 lines of costs / options for your project.
• EDITABLE COSTS: Edit the line-item labor & material price with the “Add/Deduct” field if you want to change a cost.

View Sample Report
View Feature List

Home-Cost.com’s INSTANT™ Cost-To-Build Report also provides you these added features and capabilities:

• Accurate cost database of 43,000 zip codes (US & Canada)
• Print cost reports or export to Excel®
• General Contractor or Owner-Builder contracting
• Estimate 1, 1½, 2 and 3-story home designs
• Slab, crawlspace, basement or walkout basement
• Foundation depth / excavation costs based on zip code
• Cost impact of bonus rooms and open-to-below space
• Pitched roof or flat roof homes
• Drive-under and attached garages
• Garage living – accessory dwelling unit (ADU) homes
• Duplex multi-family homes
• Barndominium / Farmdominium homes
• RV grages and Barndos with oversized overhead doors
• Costs adjust based on ceiling height of home or garage
• Exterior wall options: wood, metal stud, block
• Roofing options: asphalt, metal, wood, tile, slate
• Siding options: vinyl, cement fiber, stucco, brick, metal
• Appliances range from economy to commercial grade
• Multiple kitchen & bath counter / cabinet selections
• Countertop options range from laminate to stone
• HVAC, fireplace, plumbing and electrical systems
• Fire suppression / sprinkler system
• Elevators





Common Questions:

Got a question about this plan? Ask the Designer any question you may have. NOTE: If you have a plan modification question, please click on the Plan Modifications tab above.
