Plan Number 41409
Order Code: C101

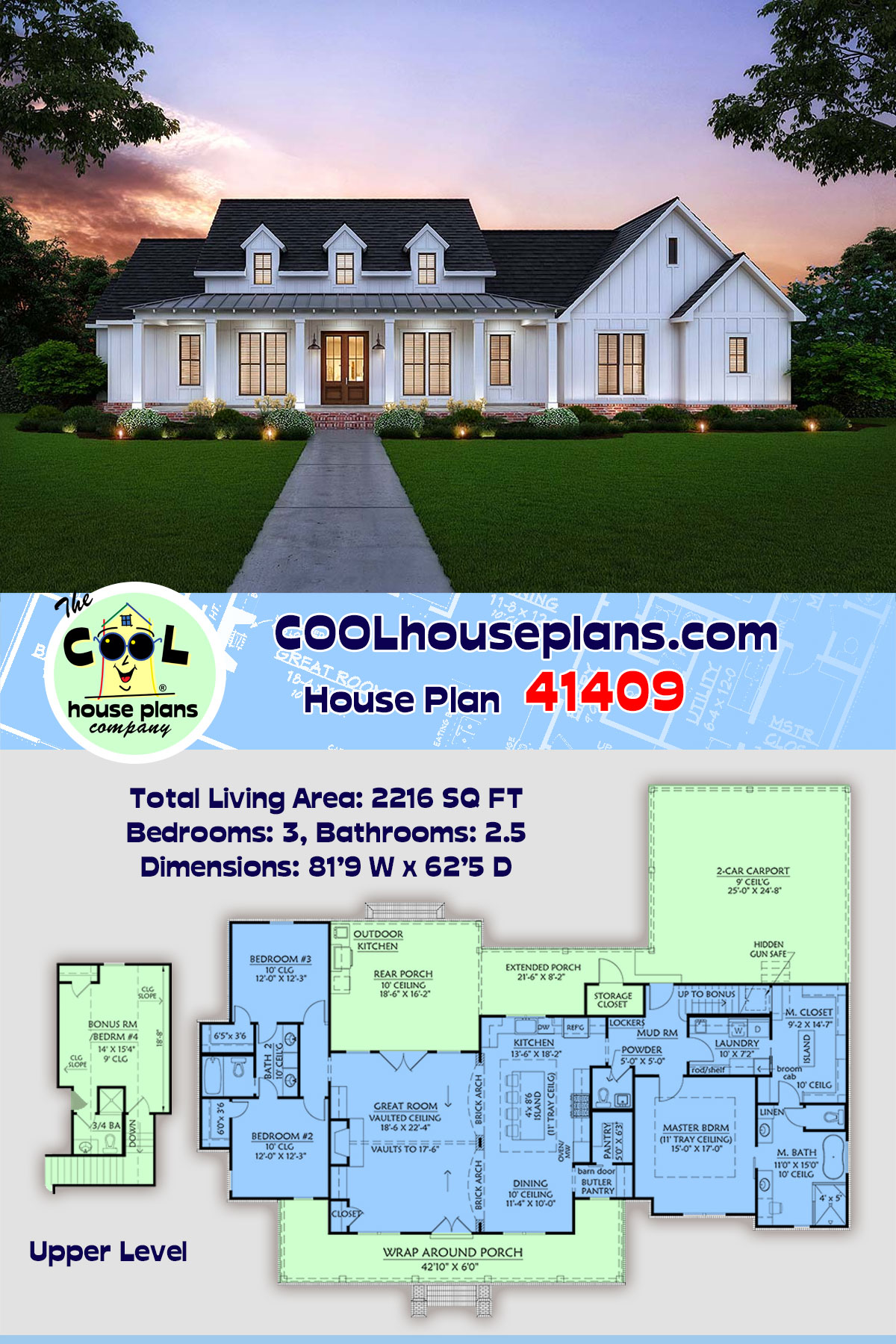

Southern Style House Plan 41409
2216 Sq Ft, 3 Bedrooms, 2 Full Baths, 1 Half Baths, 2 Car Garage
Thumbnails: ON | OFF
Quick Specs
2216 Total Living Area2216 Main Level
319 Bonus Area
3 Bedrooms
2 Full Baths, 1 Half Baths
2 Car Garage
81'9 W x 62'5 D
Quick Pricing
PDF File: $1,195.005 Sets: $1,295.00
5 Sets plus PDF File: $1,495.00
Unlimited Use PDF: $1,895.00
Plan Specifications
Specifications
| Total Living Area: | 2216 sq ft |
| Main Living Area: | 2216 sq ft |
| Bonus Area: | 319 sq ft |
| Garage Area: | 604 sq ft |
| Garage Type: | Carport |
| Garage Bays: | 2 |
| Foundation Types: | Crawlspace - * $200.00 Slab |
| Exterior Walls: | 2x4 |
| House Width: | 81'9 |
| House Depth: | 62'5 |
| Number of Stories: | 1 |
| Bedrooms: | 3 |
| Full Baths: | 2 |
| Half Baths: | 1 |
| Max Ridge Height: | 26'3 from Front Door Floor Level |
| Primary Roof Pitch: | 9:12 |
| Roof Framing: | Unknown |
| Porch: | 782 sq ft |
| FirePlace: | Yes |
| 1st Floor Master: | Yes |
| Main Ceiling Height: | 10'0 |
| Vaulted Ceiling: | Yes |
| Tray Ceiling: | Yes |
Special Features:
Plan Package Pricing
Pricing
Available Foundation Types:
Available Exterior Wall Types:
Prices subject to approval prior to fulfillment.What's Included?
What is Included in this House Plan?
When you purchase a plan package, you receive the license to build that plan one (1) time. The package includes:1/4" scale floor plan which includes window & door schedules. Our floor plans are very detailed.
1/4” scale Electrical layout which includes much detail such as: Recessed lights, fan/lights, switches, outlets, cable tv & telephone locations, exterior flood light locations, weather proof outlets, heat/vent/light locations…etc.
1/4" scale front and rear and side elevations.
1/4” scale foundation plans which do include floor & ceiling framing member specifications.
1/4” scale HVAC/mechanical plan which should be verified by your local HVAC engineer. HVAC plans are shown on the blueprints. HVAC system information regarding location of units, what types of units are used, and the duct layout are schematic only and should discuss with your local builder, mechanical (HVAC) contractor, and plumbing contractor. They should be able to provide you with the necessary information based on what your local building codes will allow.
1/2” scale typical wall sections and all foundation section details.
Roof plans are provided with every package. This will show all roof slopes and a roof framing detail.
Miscellaneous details as needed per house plan.
Kitchen/ bath cabinet elevations are provided.
Plan Modifications
Want to make changes?
Receive a FREE modification estimate in one of 3 ways. Our modification team is ready to help you adjust any plan to fit your needs. The ReDesign process is simple and estimates are free!1. Complete this On-Line Request Form
2. Print, complete and fax this PDF Form to us at 1-800-675-4916.
3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.
Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.
We Work Fast!
When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!
We look forward to hearing from you!
Start today planning for tomorrow!
Cost To Build
QUICK-Cost-To-Build Estimate
View a Sample
View an actual, LIVE cost report. This report is for demo purposes only. Not plan specific.
Purchase Estimate
$24.95 per plan
** Available for U.S. only.
QUICK Cost-To-Build estimates have the following assumptions:
QUICK Cost-To-Build estimates are available for single family, stick-built, detached, 1 story, 1.5 story and 2 story home plans with attached or detached garages, pitched roofs on flat to gently sloping sites.QUICK Cost-To-Build estimates are not available for specialty plans and construction such as garage / apartment, townhouse, multi-family, hillside, flat roof, concrete walls, log cabin, home additions, and other designs inconsistent with the assumptions outlined in Item 1 above.
User is able to select and have costs instantly calculate for slab on grade, crawlspace or full basement options.
User is able to select and have costs instantly calculate different quality levels of construction including Economy, Standard, Premium. View Quality Level Assumptions.
Estimate will dynamically adjust costs based on the home plan's finished square feet, porch, garage and bathrooms.
Estimate will dynamically adjust costs based on unique zip code for project location.
All home plans are based on the following design assumptions: 8 foot basement ceiling height, 9 foot first floor ceiling height, 8 foot second floor ceiling height (if used), gable roof; 2 dormers, average roof pitch is 12:12, 1 to 2 covered porches, porch construction on foundations.
Summarized cost report will provide approximately 70 lines of cost detail within the following home construction categories: Site Work, Foundations, Basement (if used), Exterior Shell, Special Spaces (Kitchen, Bathrooms, etc), Interior Construction, Elevators, Plumbing, Heating / AC, Electrical Systems, Appliances, Contractor Markup. View a LIVE Sample Cost Report.
QUICK Cost-To-Build generates estimates only. It is highly recommend that one employs a local builder in order to get a more accurate construction cost.
All costs are "installed costs" including material, labor and sales tax.
* Limit one $24.95 credit per complete plan package order.
** Available for U.S. only.
Previous Q & A
Previous Questions and Answers
Q: Can you save the CAD down to 2014 autocad or less if I order the CAD?
A: Yes we save down to 2010 for them now but could go lower
Q: I have a client who is interested in purchasing one of your house plans. Should I need to modify your CAD plans to fit the lot or their specifications - what CAD program are the drawings in? Autocad ? or other - what version? Yours Truly Billy
A: We work in autocad and they save down to acad2010 version
Q: What is the total under roof square footage? Including literally everything under the roof (living, porches, garage etc)
A: Good morning, The total sq ft under roof, including bonus room, porches, carport, and living is 3917 sq ft.
Common Questions:
Q: Can I make modifications to this plan?
A: Yes you can! Please click the "Modifications" tab above to get more information.
Q: What is the estimated price to build this plan?
A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
