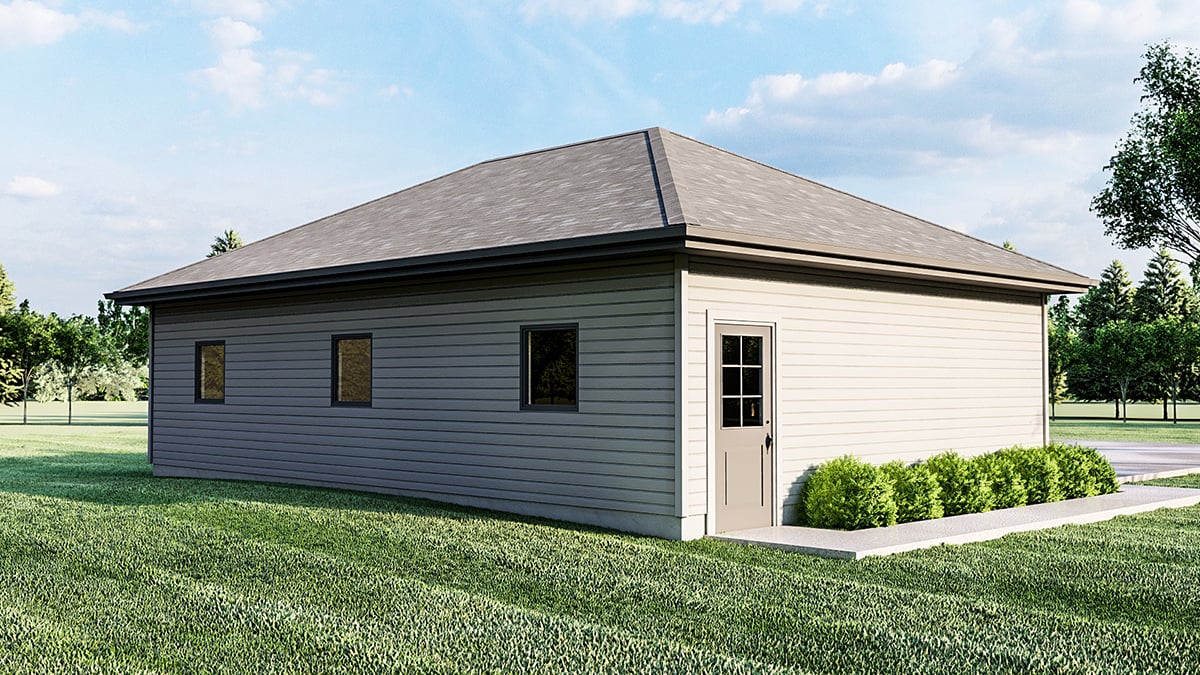

The Allan is a classy garage that combines form and function. Store your toys or give yourself that extra space you need to keep your home tidy. This is a single story traditional garage with 3 bays. It is built on slab foundation.
·Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement?
·Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor?
·Electrical Plans (HOUSE PLANS ONLY, NOT GARAGE PLANS): Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
·Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
·Typical wall section
·Typical Stair section
·Cabinets are shown on most but not all plans. If cabinets are a must please call to confirm they will be included in your set.
Want to make changes?
Receive a FREE modification estimate in one of 3 ways. Our modification team is ready to help you adjust any plan to fit your needs. The ReDesign process is simple and estimates are free!
2. Print, complete and fax this PDF Form to us at 1-800-675-4916.
3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.
Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.
We Work Fast!
When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!
We look forward to hearing from you!
Start today planning for tomorrow!
Cost To Build
Cost to Build Estimate
We are sorry, but an estimated cost build is not available for this particular plan.
Previous Q & A
Previous Questions and Answers
Q:Is this roof stick framed or trussed. If stick framed, do you include a framing plan?
A:The plan has trusses.
Date Posted: 23-Dec-14
Q:Can there be a wall modification from 2"x4" to 2"x6"? What is the rafter size? I see that the depth of exterior is a total of 26'. Are the main portion of the bays 24' in depth with a 2' extention of the center bay to the total of 26'?
A:2X6 Walls go for $150.00 for garage
Rafters are 2x8
Yes the main portion is 24'
Date Posted: 13-Dec-12
Q:what are the size of the garage doors, and can this plan be changed to have doors that are 9 feet wided and 8 feet tall?
A:The garage doors are already 9’-0” wide x 8’-0” high
Date Posted: 18-Sep-09
Q:What are the door dimensions?
A:The doors are 9’-0” x 8’-0”
Date Posted: 17-Sep-09
Q:Can I make modifications to this plan?
A:Yes you can! Please click the "Modifications" tab above to get more information.
Q:What is the estimated price to build this plan?
A:The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
