Plan 45512 Order Code: C101
Traditional Style Garage-Living Plan 45512
480 Sq Ft, 1 Bedrooms, 1 Full Baths, 2 Car Garage
Quick Specs

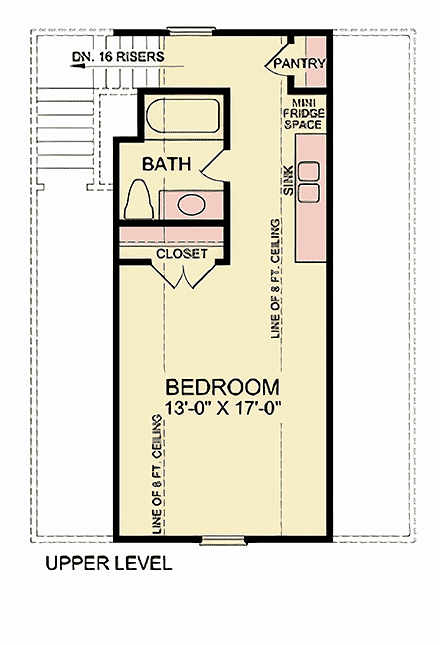

480 Total Living Area480 Upper Level
1 Bedrooms
1 Full Baths
2 Car Garage
24'0" W x 32'0" D
Quick Pricing
PDF File: $725.005 Sets: $975.00
5 Sets plus PDF File: $1,075.00
CAD File: $1,475.00
Plan Specifications
Specifications
| Total Living Area: | 480 sq ft |
| Upper Living Area: | 480 sq ft |
| Garage Area: | 645 sq ft |
| Garage Type: | Drive Under |
| Garage Bays: | 2 |
| Foundation Types: | Slab |
| Exterior Walls: | 2x4 2x6 - * $350.00 |
| House Width: | 24'0" |
| House Depth: | 32'0" |
| Number of Stories: | 2 |
| Bedrooms: | 1 |
| Full Baths: | 1 |
| Max Ridge Height: | 23'3" from Front Door Floor Level |
| Primary Roof Pitch: | 12:12 |
| Roof Framing: | Stick |
| Main Ceiling Height: | 8'1" |
| Upper Ceiling Height: | 9'5" |
| Vaulted Ceiling: | Yes |
| Tray Ceiling: | Yes |
Plan Package Pricing
Pricing
Truss Roof System (up to 1-2 weeks delay)Brick Veneer Option (up to 1-2 weeks delay)
Available Foundation Types:
Available Exterior Wall Types:
Plan Options:
Prices subject to approval prior to fulfillment.What's Included?
What is Included in this House Plan?
Plans include complete working drawings.all four elevations (front, sides, and rear)
foundation and details -- all girders, piers, and double joists are dimensioned; floor joist direction, size & spacing are labeled
floor plan -- all rooms, door, and windows are labeled and dimensioned; ceiling joist direction, size & spacing are labeled; beams in ceiling are shown and labeled
roof plan -- rafter direction, size & spacing are labeled; all hips, valleys & supports are labeled
millwork such as cabinets & fireplaces
framing -- wall section & details showing each framing end condition
vent calculations -- for attic and foundation
Plan Modifications
Want to make changes?
Receive a FREE modification estimate in one of 3 ways. Our modification team is ready to help you adjust any plan to fit your needs. The ReDesign process is simple and estimates are free!1. Complete this On-Line Request Form
2. Print, complete and fax this PDF Form to us at 1-800-675-4916.
3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.
Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.
We Work Fast!
When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!
We look forward to hearing from you!
Start today planning for tomorrow!
Previous Q & A
Previous Questions and Answers
A: Hey, There is 8' 11/2 " ceiling height in the attic. The plan already has a bedroom and bath apartment designed in it 13' 8" wide.
A: The Biscayne garage ceiling height is approximately 9' 5 1/2" from the top of slab to bottom of ceiling joist. The plan currently shows a 16' X 7' garage door, but can easily be modified to utilize an 8 foot high door. The ceiling height can also be modified if you want it at 9'.
Common Questions:
A: Yes you can! Please click the "Modifications" tab above to get more information.
A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
