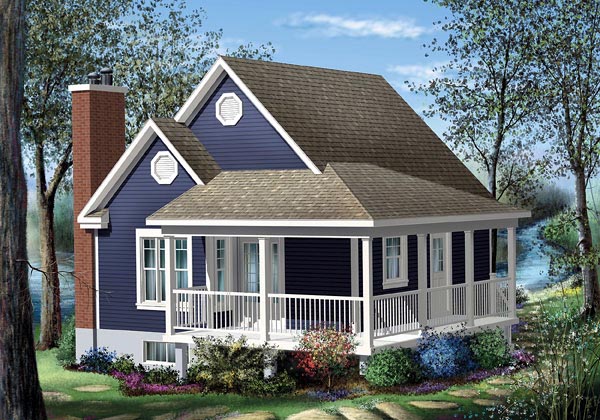

This cottage has a stylish look with its large veranda, decorative moldings and sprockets. It measures 24 feet wide by 27 feet deep and has a surface area of 613 square feet. This haven of tranquility has a combination kitchen and dining room and a living room with corner fireplace.
613 Total Living Area 613 Main Level 1 Bedrooms 1 Full Baths 24' W x 27' D
Exterior Elevations: show the front, rear and sides of the house, including exterior materials, details and measurements.
Foundation Plans: All necessary notations and dimensions are included. (Foundation options will vary for each plan. If the home you want does not have the type of foundation you desire, contact Familyhomeplans.com of your plan.)
Interior Elevations: (call 1-800-235-5700 before ordering to confirm availability) show the specific details of cabinets (kitchen, bathroom). We suggest contacting local cabinet and fireplace distributors for sizes and styles.
Schematic Electrical Layouts: (call 1-800-235-5700 before ordering to confirm availability) show the suggested locations for switches, fixtures and outlets. These details may be shown on the floor plan or on a separate diagram.
Detailed Floor Plans: show the placement of interior walls and the dimensions for rooms, doors, windows, stairways, etc., of each level of the house.
Due to regional variations, local availability of materials, local codes, methods of installation, and individual preferences, it is impossible to include detail on heating and plumbing work on your plans. The duct work, venting, and other details will vary depending on the type of heating and cooling system (forced air, hot water, electric, solar) and the type of energy (gas, oil, electricity, solar) that you use. These details and specifications are easily obtained from your builder, contractor, and/or local suppliers.
Want to make changes?
Receive a FREE modification estimate in one of 3 ways. Our modification team is ready to help you adjust any plan to fit your needs. The ReDesign process is simple and estimates are free!
QUICK Cost-To-Build estimates have the following assumptions:
QUICK Cost-To-Build estimates are available for single family, stick-built, detached, 1 story, 1.5 story and 2 story home plans with attached or detached garages, pitched roofs on flat to gently sloping sites.
QUICK Cost-To-Build estimates are not available for specialty plans and construction such as garage / apartment, townhouse, multi-family, hillside, flat roof, concrete walls, log cabin, home additions, and other designs inconsistent with the assumptions outlined in Item 1 above.
User is able to select and have costs instantly calculate for slab on grade, crawlspace or full basement options.
User is able to select and have costs instantly calculate different quality levels of construction including Economy, Standard, Premium. View Quality Level Assumptions.
Estimate will dynamically adjust costs based on the home plan's finished square feet, porch, garage and bathrooms.
Estimate will dynamically adjust costs based on unique zip code for project location.
All home plans are based on the following design assumptions: 8 foot basement ceiling height, 9 foot first floor ceiling height, 8 foot second floor ceiling height (if used), gable roof; 2 dormers, average roof pitch is 12:12, 1 to 2 covered porches, porch construction on foundations.
Summarized cost report will provide approximately 70 lines of cost detail within the following home construction categories: Site Work, Foundations, Basement (if used), Exterior Shell, Special Spaces (Kitchen, Bathrooms, etc), Interior Construction, Elevators, Plumbing, Heating / AC, Electrical Systems, Appliances, Contractor Markup. View a LIVE Sample Cost Report.
QUICK Cost-To-Build generates estimates only. It is highly recommend that one employs a local builder in order to get a more accurate construction cost.
All costs are "installed costs" including material, labor and sales tax.
* Limit one $19.95 credit per complete plan package order.
** Available for U.S. only.
Previous Q & A
Previous Questions and Answers
Q:Are the kitchen elevations included and the electrical schematics? Do the plans include construction details for the porch?
To answer your question, we do not draw kitchen elevations or electrical schematics.
The structure and construction details for the porch is included with the plans.
Date Posted: 01-Oct-18
Q:What is the snow load for this plan?
The snow load is 50 lbs / sq ft
Date Posted: 09-Jul-18
Q:Can this ceiling be vaulted?
It already is; in the living area. The highest point is at 11’-3’’.
Date Posted: 23-Oct-17
Q:Can you tell me the ceiling height? Also the window dimensions of the window in the bedroom? Thanks
A:The ceiling height is 8’-0’’
The bedroom window is 48’’ wide x 60’’ high
Date Posted: 10-Jan-17
Q:Can you get this plan with a crawl space?
The plan is not available with a crawl space foundation. We have to make modifications and charge for it
Have a nice day
Date Posted: 04-Jan-17
Q:Hello, Can you tell me the size of the basement? Thanks!
A:The basement is the same size as the ground floor. It’s unfinished and the foundation wall height is 8’-0” (7’-8” from top of slab to ceiling); the walls are poured concrete.
Date Posted: 09-Sep-15
Q:Hi! Do you have this plan with a finished upstairs? Maybe 2 bed/1 bath. Thanks!
A:See Plan #49837. The family room on the upper floor can be used for a 2nd bedroom.
Date Posted: 05-Jan-15
Q:Can I make modifications to this plan?
A:Yes you can! Please click the "Modifications" tab above to get more information.
Q:What is the estimated price to build this plan?
A:The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
