Plan 51489 Order Code: C101

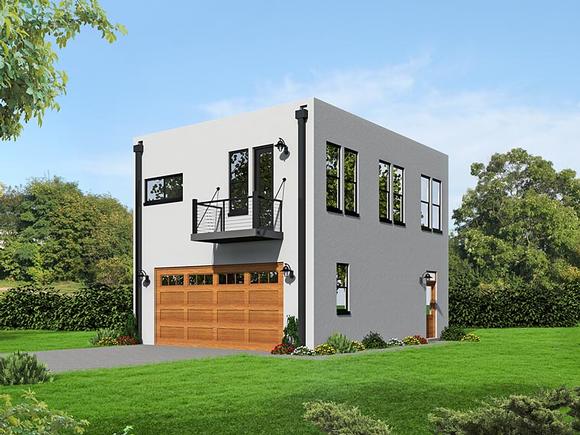

Modern Style 2 Car Garage Apartment Plan 51489
820 Sq Ft, 2 Bedrooms, 1 Bathrooms
Quick Specs
820 Total Living Area70 Main Level
750 Upper Level
2 Bedrooms
1 Full Baths
2 Car Garage
25'0 W x 30'0 D
Quick Pricing
PDF File: $1,295.005 Sets: $1,526.00
5 Sets plus PDF File: $1,583.00
CAD File: $1,715.00
Plan Specifications
Specifications
| Total Living Area: | 820 sq ft |
| Main Living Area: | 70 sq ft |
| Upper Living Area: | 750 sq ft |
| Garage Area: | 680 sq ft |
| Garage Type: | Drive Under |
| Garage Bays: | 2 |
| Foundation Types: | Slab |
| Exterior Walls: | 2x6 |
| House Width: | 25'0 |
| House Depth: | 30'0 |
| Number of Stories: | 2 |
| Bedrooms: | 2 |
| Full Baths: | 1 |
| Max Ridge Height: | 22'10 from Front Door Floor Level |
| Primary Roof Pitch: | 0 |
| Roof Framing: | Truss |
| Porch: | 32 sq ft |
| Main Ceiling Height: | 10'0 |
| Upper Ceiling Height: | 9'0 |
Plan Package Pricing
Pricing
Materials List may take 3-5 weeks to fulfill depending on availability.Available Foundation Types:
Available Exterior Wall Types:
Prices subject to approval prior to fulfillment.What's Included?
What is Included in this House Plan?

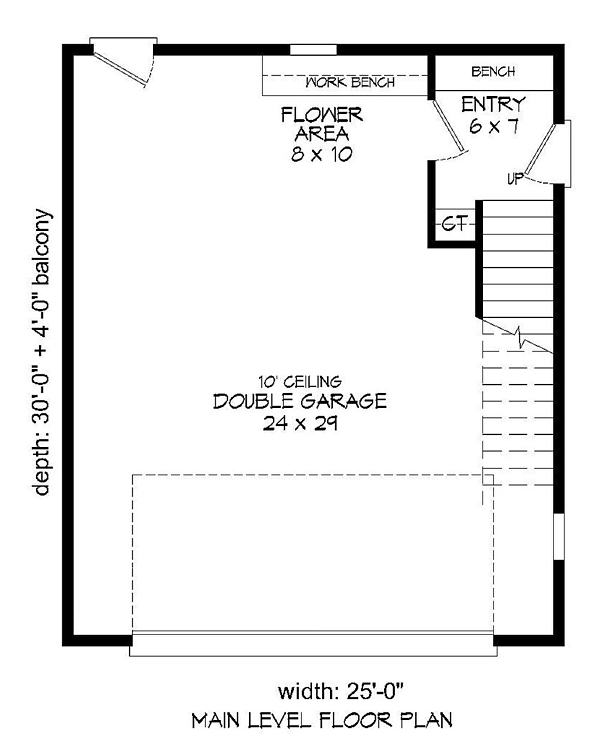

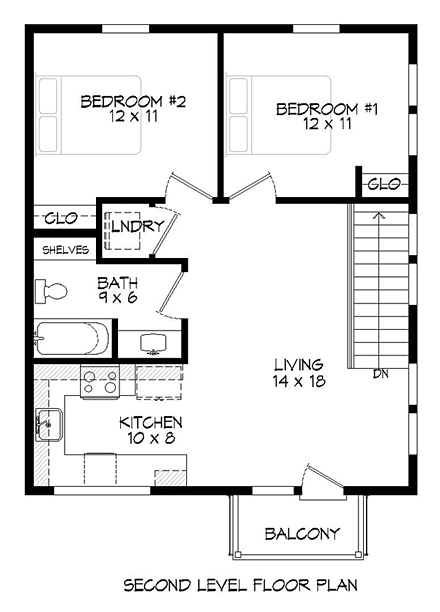

Plans includea: Floor Plans: House plan drawings indicating dimensions for construction
b: Roof Plan: Drawings indicating roof slopes and unique conditions

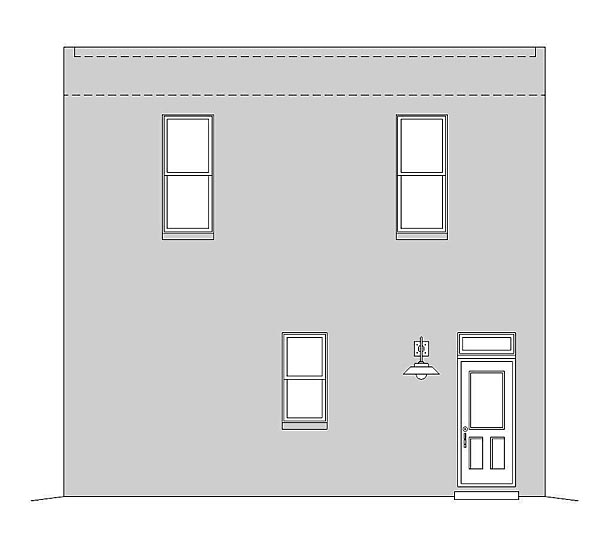

c: Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish
d: Building Sections: Drawings cut through important locations in the structure
e: Construction Details: Drawings showing specific construction of building elements at a large scale
f: Kitchen and bath elevations
g: Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)
h: Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure CRAWLSPACE
Plans are sent in AutoCAD 2000 format
Plan Modifications
Want to make changes?
Plan modification is a way of turning a stock plan into your unique custom plan. It's still just a small fraction of the price you would pay to create a home plan from scratch. You will receive a FREE, no obligation, modification estimate to get exactly the home plan you've been dreaming of. Simply contact the modification department 1 of 3 ways:Call 866-465-5866 and talk to a live person that can give you and FREE modification estimate over the phone!
Email Us - Please Include your telephone number, plan number, foundation type, state you are building in and a specific list of changes.
Fax: 651-602-5050 - Make sure to include a cover sheet with your contact info. Make attention to the COOLhouseplans.com Modification Department.
Previous Q & A
Common Questions:
A: Yes you can! Please click the "Modifications" tab above to get more information.
A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
