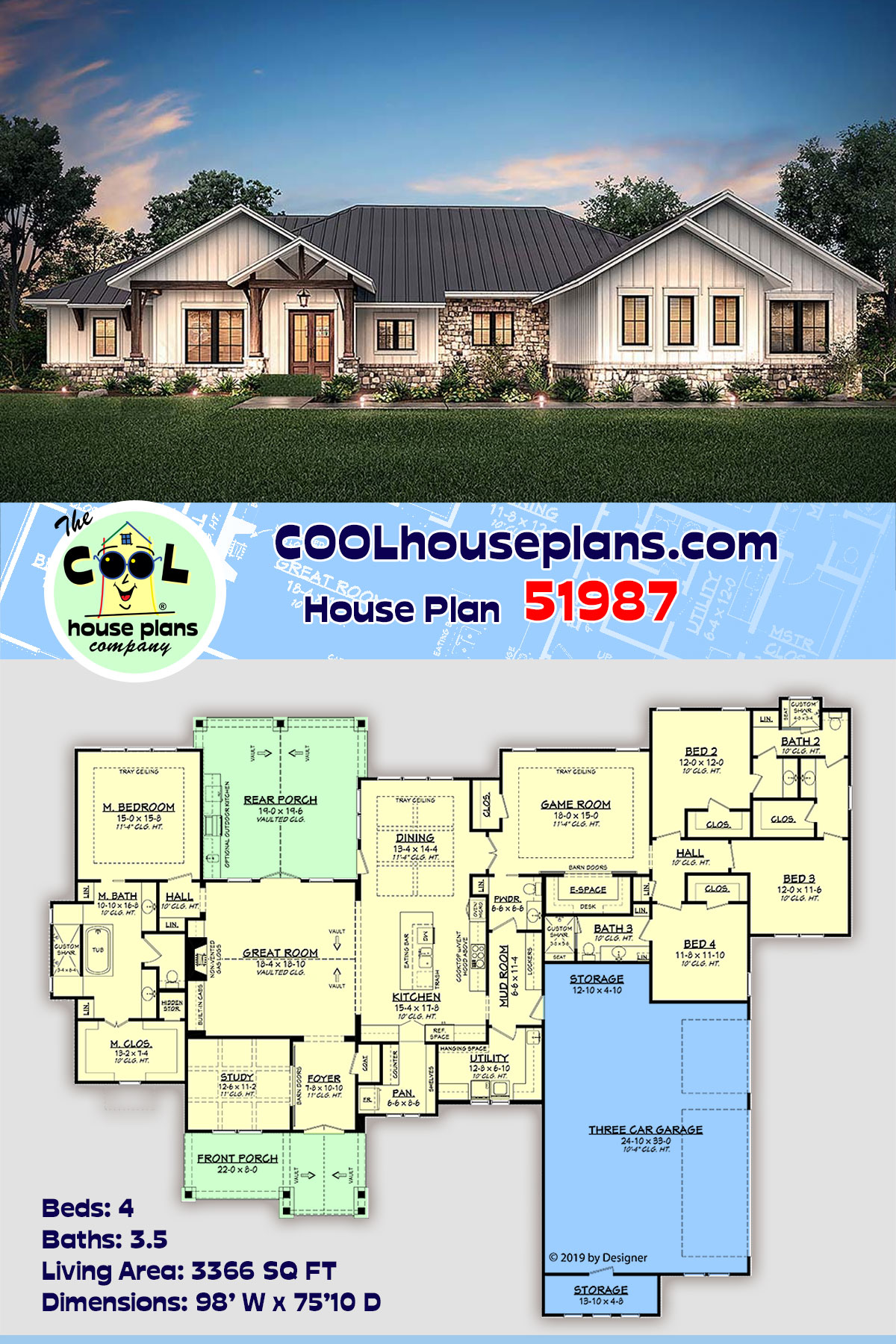

Texas Ranch Style - Open floor plan - Four large bedrooms - Large game room - Volume ceilings - Large rear porch - Three car garage - Luxurious master suite - Study - Unbelievable curb appeal - Gas log fireplace - Huge kitchen with island - Unbelievable pantry
3366 Total Living Area 3366 Main Level 4 Bedrooms 3 Full Baths, 1 Half Baths 3 Car Garage 98'0 W x 75'10 D
PDF File: $1,295.00 5 Sets plus PDF File: $1,545.00 CAD File: $2,295.00
Unlimited License To Build included with CAD file sale.
CAD file sale also includes PDF file.
Materials list will NOT reflect any options that have an additional fee because those are modifications. If you buy a materials list, it will only reflect the standard original plan. All of our CAD files are delivered in .DWG format and do not contain any type of 3D capability. Files are delivered in 2004 format so that older software versions will be able to open the files. All CAD orders are delivered with a PDF file as well.
Available Foundation Types:
Total Living Area may increase with Basement Foundation option - please call to confirm before ordering.
Foundation Plan and Details (plan scale: 1/4" = 1'-0"; details: 3/4"=1'-0")
License to Build
Want to make changes?
Receive a FREE modification estimate.
Plan modification is a way of turning a stock plan into your unique custom plan. It's still just a small fraction of the price you would pay to create a home plan from scratch. We believe that modification estimates should be FREE!
We provide a modification service so that you can customize your new home plan to fit your budget and lifestyle.
QUICK Cost-To-Build estimates have the following assumptions:
QUICK Cost-To-Build estimates are available for single family, stick-built, detached, 1 story, 1.5 story and 2 story home plans with attached or detached garages, pitched roofs on flat to gently sloping sites.
QUICK Cost-To-Build estimates are not available for specialty plans and construction such as garage / apartment, townhouse, multi-family, hillside, flat roof, concrete walls, log cabin, home additions, and other designs inconsistent with the assumptions outlined in Item 1 above.
User is able to select and have costs instantly calculate for slab on grade, crawlspace or full basement options.
User is able to select and have costs instantly calculate different quality levels of construction including Economy, Standard, Premium. View Quality Level Assumptions.
Estimate will dynamically adjust costs based on the home plan's finished square feet, porch, garage and bathrooms.
Estimate will dynamically adjust costs based on unique zip code for project location.
All home plans are based on the following design assumptions: 8 foot basement ceiling height, 9 foot first floor ceiling height, 8 foot second floor ceiling height (if used), gable roof; 2 dormers, average roof pitch is 12:12, 1 to 2 covered porches, porch construction on foundations.
Summarized cost report will provide approximately 70 lines of cost detail within the following home construction categories: Site Work, Foundations, Basement (if used), Exterior Shell, Special Spaces (Kitchen, Bathrooms, etc), Interior Construction, Elevators, Plumbing, Heating / AC, Electrical Systems, Appliances, Contractor Markup. View a LIVE Sample Cost Report.
QUICK Cost-To-Build generates estimates only. It is highly recommend that one employs a local builder in order to get a more accurate construction cost.
All costs are "installed costs" including material, labor and sales tax.
* Limit one $29.95 credit per complete plan package order.
** Available for U.S. only.
Previous Q & A
Previous Questions and Answers
Q:How can I get a set of study plans or similar for House plan # 51987. I need some type of detailed Pdf file to submit to my banker for a loan application.
A:Unfortunately, we do not offer study set packages. Most lending institutions can pre-approve you for an amount and then you can select the appropriate sized plan based on that pre-approval. This will help you avoid purchasing a plan that won't meet your budget.
Date Posted: 21-Jan-21
Q:Do the plans include interior elevations (aka cabinet layouts/drawings)?
A:Cabinet elevations are included for the kitchen cabinets only. These are very general in nature since cabinet finishes and styles will be chosen by the homeowner.
Date Posted: 02-Oct-20
Q:I have CAD 2007 or 2010. Will that be compatible with your CAD file?
A:Yes...our CAD files are saved in 2004 format so that older versions can still access them.
Date Posted: 17-Aug-20
Q:Is the crawlspace block or concrete? I need it to be concrete. If I order a PDF, will I get it the following business day?
A:The crawlspace foundation is shown with concrete block construction. If you desire poured concrete stemwalls, you can let your contractor make the necessary adjustments. All PDF orders are submitted electronically and usually the same day if ordered before 12:00 CST. If you order additional paid options such as reverse, 2x6 walls, basement, etc. your order may be delayed as much as 5 business days while these options are prepared.
Date Posted: 07-May-20
Q:does this floor plan have a 3 bedroom version or one without a game room?
A:We do not have a version of this plan in that configuration at this time.
Date Posted: 03-Jan-20
Q:Hello, is there an optional shingle roof instead of a metal roof? Also, do you have any interior pictures? Thank you, Kenny Wood
A:We do not have any interior pictures at this time. As for the roof, shingles can be substituted instead of metal by your builder on site.
Date Posted: 26-Nov-19
Q:Is there a different kitchen layout that gives more counter space for this plan? Any pictures of the interior?
A:We do not have interior pics at this time. The kitchen as in its original state has over 70sf of counter space which is significant. You could pick up a few more feet by eliminating the linen in the half bath and continuing the kitchen cabinets into that space.
Date Posted: 10-Oct-19
Q:Hello! Are there any interior pictures with the premium options. If yes, can you please email the pictures. My husband and I are thinking about building a house very soon. Thanks!
A:All of the images that we currently have for this plan are displayed on the website. We will add additional pictures as they are submitted to us by clients who build the design.
Date Posted: 30-May-19
Q:Can I make modifications to this plan?
A:Yes you can! Please click the "Modifications" tab above to get more information.
Q:What is the estimated price to build this plan?
A:The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
