Basement - * $395.00 Total Living Area may increase with Basement Foundation option. Crawlspace Slab Walkout Basement - * $395.00 Total Living Area may increase with Basement Foundation option.
Materials List: $250.00 Important Notice: Material list only includes materials for the base slab and crawlspace versions. Basement and 2x6 wall options NOT included.
Right Reading (True) Reverse: $225.00
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
Unlimited License To Build included with CAD file sale.
CAD file sale also includes PDF file.
Materials list will NOT reflect any options that have an additional fee because those are modifications. If you buy a materials list, it will only reflect the standard original plan. All of our CAD files are delivered in .DWG format and do not contain any type of 3D capability. Files are delivered in 2004 format so that older software versions will be able to open the files.
Available Foundation Types:
Basement
: $395.00
May require additional drawing time, please call to confirm before ordering.
Total Living Area may increase with Basement Foundation option.
Crawlspace
: No Additional Fee
Slab
: No Additional Fee
Walkout Basement
: $395.00
May require additional drawing time, please call to confirm before ordering.
Total Living Area may increase with Basement Foundation option.
Cover Sheet – May include index, front view of home, definitions, etc.
Foundation Plan – Typically includes dimensioned foundation plan with footing details.
Dimensioned Floor Plan – Electrical may be shown.
Exterior Views – Four exterior views of the residence with other miscellaneous details.
Roof Plan – Birds eye view showing all ridges, valleys and other necessary information.
Electrical Plan – Displays lighting fixtures, outlets and other necessary electrical items. These items may be shown on the Dimensioned Floor Plan. Switches are NOT shown and should be located by contractor at site.
Wall Section(s) – Detail of wall materials and assembly.
Building Section(s) – Section through home displaying necessary information about framing and other miscellaneous data.
Mechanical Plans - Because of varying site conditions, mechanical plans such as plumbing and HVAC plans are not included. These items are easily obtained by your mechanical contractor or material supplier.
Site Plans – If required, this information must be obtained locally to include the information specific to your individual property.
Structural Calculations – In certain areas, particularly those in earthquake and hurricane zones, permit departments may require you to submit structural calculations for your particular conditions. When required, you should consult with a local structural engineer.
Plan Modifications
Want to make changes?
Receive a FREE modification estimate.
Plan modification is a way of turning a stock plan into your unique custom plan. It's still just a small fraction of the price you would pay to create a home plan from scratch. We believe that modification estimates should be FREE!
We provide a modification service so that you can customize your new home plan to fit your budget and lifestyle.
Email Designer This is the best and quickest way to get a modification quote!
Please include your preferred Foundation Type and a Specific List of Changes. You can also attach a Sketch of Changes.
It's as simple as that!
Cost To Build
QUICK-Cost-To-Build Estimate
No Risk Offer: Order the QUICK-Cost-To-Build now and when you do decide to order any house plan, $24.95 will be deducted from your order! *
Get more accurate results, quicker! No need to wait for a reliable cost.
Get a detailed cost report for your home plan with over 70 lines of summarized cost information in under 5 minutes!
Cost report for your zip code. (the zip code can be changed after you receive the online report)
Estimate 1, 1-1/2 or 2 story home plans. **
Interactive! Instantly see the costs change as you vary quality levels Economy, Standard, Premium and structure such as slab, basement and crawlspace.
QUICK Cost-To-Build estimates have the following assumptions:
QUICK Cost-To-Build estimates are available for single family, stick-built, detached, 1 story, 1.5 story and 2 story home plans with attached or detached garages, pitched roofs on flat to gently sloping sites.
QUICK Cost-To-Build estimates are not available for specialty plans and construction such as garage / apartment, townhouse, multi-family, hillside, flat roof, concrete walls, log cabin, home additions, and other designs inconsistent with the assumptions outlined in Item 1 above.
User is able to select and have costs instantly calculate for slab on grade, crawlspace or full basement options.
User is able to select and have costs instantly calculate different quality levels of construction including Economy, Standard, Premium. View Quality Level Assumptions.
Estimate will dynamically adjust costs based on the home plan's finished square feet, porch, garage and bathrooms.
Estimate will dynamically adjust costs based on unique zip code for project location.
All home plans are based on the following design assumptions: 8 foot basement ceiling height, 9 foot first floor ceiling height, 8 foot second floor ceiling height (if used), gable roof; 2 dormers, average roof pitch is 12:12, 1 to 2 covered porches, porch construction on foundations.
Summarized cost report will provide approximately 70 lines of cost detail within the following home construction categories: Site Work, Foundations, Basement (if used), Exterior Shell, Special Spaces (Kitchen, Bathrooms, etc), Interior Construction, Elevators, Plumbing, Heating / AC, Electrical Systems, Appliances, Contractor Markup. View a LIVE Sample Cost Report.
QUICK Cost-To-Build generates estimates only. It is highly recommend that one employs a local builder in order to get a more accurate construction cost.
All costs are "installed costs" including material, labor and sales tax.
* Limit one $24.95 credit per complete plan package order.
** Available for U.S. only.
Previous Q & A
Previous Questions and Answers
Q:Just a few quick questions about this house plan with the basement option. 1) Is there access to the basement from outside the house? If not, can one be added? 2) Where are the windows located in the basement? 3) What is the foundation style of the basement option, is it a full 8 ft concrete or 4 feet concrete and a 4 foot wall? Thanks!
A:The walkout basement option has been added to the website. The doors and windows will be as depicted in the attached image. Be sure to understand that the basement plans we provide are unfinished and will not include a basement level floor plan.
Q:What size width is the vertical siding on this house?
A:Siding sheets are sold in 4' widths, so the batten pattern is usually either 24" or 16" in order for the spacing to work with the siding joints. We do not specify which spacing as it is a matter of owner preference.
Q:Good Morning Would there be a chance to actually see this house built somewhere in the United States that we would be able to drive by and see.
A:Due to privacy restrictions, we cannot release the locations of client builds. All available photos that are shared with us are loaded onto our site as they are made available by previous clients.
Q:What method are you using to calculate the square footage?
A:Square footage is calculated electronically via CAD software, and is calculated to the exterior face of the studwall.
Q:Where would furnace, water heater go on a slab plan?
A:In the attic space.
Q:Is there any outside exit from the basement? Is the only way in and out from the inside staircase?
A:For a traditional basement...yes the only access is via the inside stairs.
Q:What are the sizes of the windows? Are they 36" or 30"?
A:Most are 32" wide, but there are varying sizes throughout the plan. The window sizes will be listed on the floorplan of the plans when purchased.
Q:Hello. Are builders that purchase the plans for a single home build allowed to use the renderings for advertising purposes? Thanks!
A:Images may only be used with the purchase of an unlimited license. When marketing the images, credit for the design must be given to the original designer. Builders are not allowed to list the images and portray them as their own designs.
Q:Is there an area available above the master bedroom or garage for a bonus room?
A:Not in this particular plan. The roof structure would have to be significantly modified in order to accommodate the required headroom. The plan could be modified, but the exterior appearance would be significantly altered.

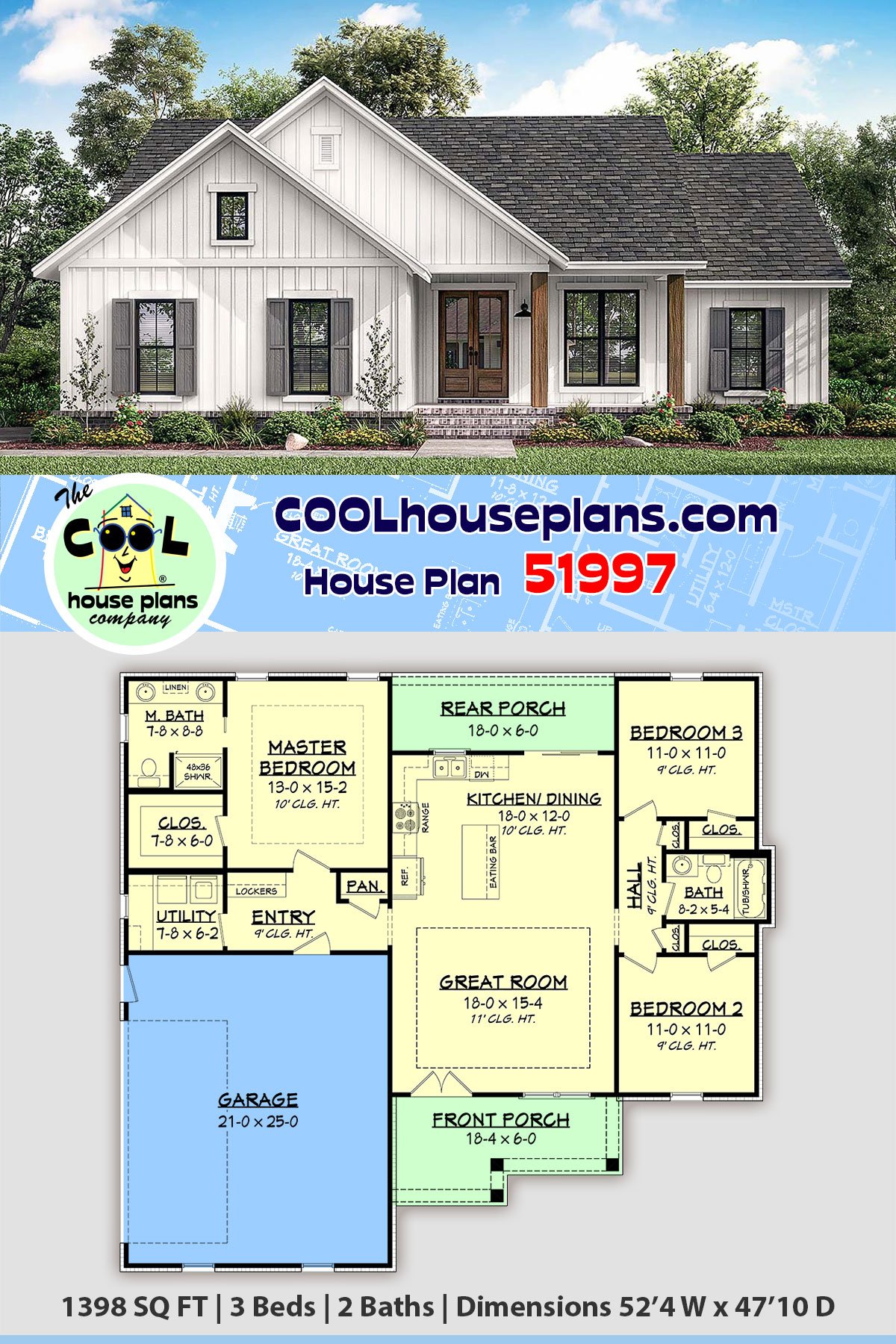

Q:Plan 51997 Question: Is the great room and kitchen dining able to have a cathedral ceiling due to the layout?
A:This is certainly possible, but would require the plans to be modified. Click the "Modifications" link to inquire about a price and timeline.
Q:What is the ceiling like in the Master bedroom, and great room? Are they vaulted or flat? Looking for something suitable for exposed beams. Thanks
A:The master bedroom is a trayed ceiling with 9' ceilings around the perimeter and 10' ceiling in the center.
Q:what year building specs is this designed off of? Does it come with all the general dips that are needed to build it? Dimensions?
A:This plan is designed in accordance with the 2018 edition of the International Residential Code and contains all the necessary information to construct the home. However, based on your building location, there may be additional engineering or supplemental drawings required. Check with you local building official for all the requirements for your particular area.
Q:Is the roof framing a truss design or stick framed?
A:The plans call for stick framed construction. If trusses are desired, they must be designed by the truss manufacturer.
Q:Where is the mechanical room? i am going to have radiant floor heating and Air conditioning. I am going with the slab for my foundation.
A:Good Morning,
The mechanical space is to be located in the attic space.
Thanks,
Jason
Q:Plan 51997. Do you have this plan with the bonus room/s option? I noticed that there is an option for a basement, but we need bonus space.
A:We do not have a bonus room for this particular design. This would have to be done as a modification which would extensively change the roof structure of the house.
Thanks,
Jason
Common Questions:
Q:Can I make modifications to this plan?
A:Yes you can! Please click the "Modifications" tab above to get more information.
Q:What is the estimated price to build this plan?
A:The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
