Plan 56705 Order Code: C101

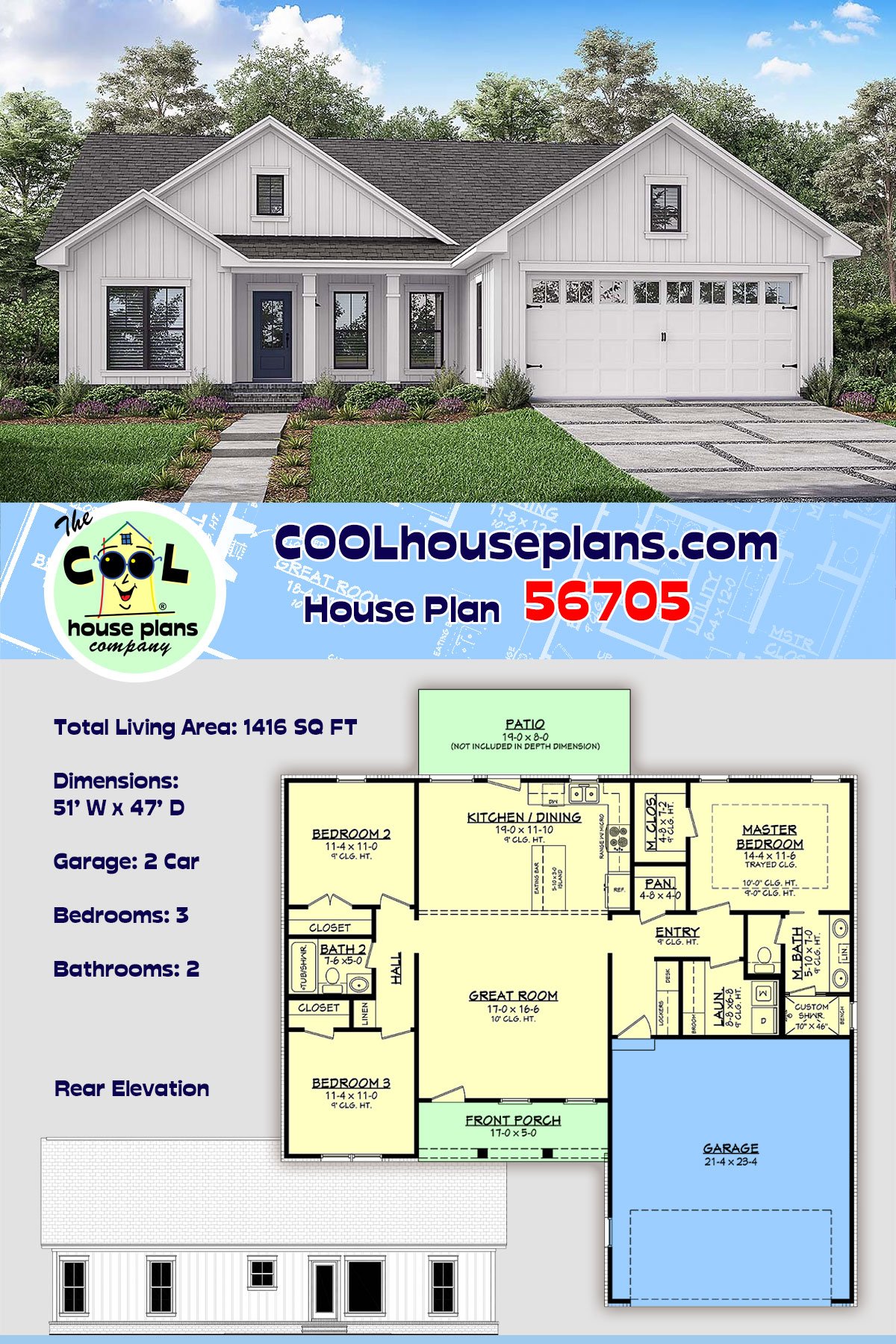

Traditional Style House Plan 56705
1416 Sq Ft, 3 Bedrooms, 2 Full Baths, 2 Car Garage
Quick Specs
1416 Total Living Area1416 Main Level
3 Bedrooms
2 Full Baths
2 Car Garage
51'0 W x 47'0 D
Quick Pricing
PDF File: $1,245.005 Sets plus PDF File: $1,495.00
Unlimited Use PDF: $1,945.00
Plan Specifications
Specifications
| Total Living Area: | 1416 sq ft |
| Main Living Area: | 1416 sq ft |
| Garage Area: | 519 sq ft |
| Garage Type: | Attached |
| Garage Bays: | 2 |
| Foundation Types: | Basement - * $395.00 Total Living Area may increase with Basement Foundation option. Crawlspace Slab Walkout Basement - * $395.00 Total Living Area may increase with Basement Foundation option. |
| Exterior Walls: | 2x4 2x6 - * $325.00 |
| House Width: | 51'0 |
| House Depth: | 47'0 |
| Number of Stories: | 1 |
| Bedrooms: | 3 |
| Full Baths: | 2 |
| Max Ridge Height: | 21'0 from Front Door Floor Level |
| Primary Roof Pitch: | 8:12 |
| Roof Load: | 30 psf |
| Roof Framing: | Stick |
| Porch: | 85 sq ft |
| Main Ceiling Height: | 9' |
Special Features:
Plan Package Pricing
Pricing
Unlimited License To Build included with CAD file sale.
CAD file sale also includes PDF file. Materials list will NOT reflect any options that have an additional fee because those are modifications. If you buy a materials list, it will only reflect the standard original plan. All of our CAD files are delivered in .DWG format and do not contain any type of 3D capability. Files are delivered in 2004 format so that older software versions will be able to open the files.
Available Foundation Types:
Available Exterior Wall Types:
Prices subject to approval prior to fulfillment.What's Included?
What is Included in this House Plan?
Cover Sheet – May include index, front view of home, definitions, etc.Foundation Plan – Typically includes dimensioned foundation plan with footing details.
Dimensioned Floor Plan – Electrical may be shown.
Exterior Views – Four exterior views of the residence with other miscellaneous details.
Roof Plan – Birds eye view showing all ridges, valleys and other necessary information.
Electrical Plan – Displays lighting fixtures, outlets and other necessary electrical items. These items may be shown on the Dimensioned Floor Plan. Switches are NOT shown and should be located by contractor at site.
Wall Section(s) – Detail of wall materials and assembly.
Building Section(s) – Section through home displaying necessary information about framing and other miscellaneous data.
Cabinet Elevations – Displays interior kitchen cabinet views.
ITEMS NOT INCLUDED
Mechanical Plans - Because of varying site conditions, mechanical plans such as plumbing and HVAC plans are not included. These items are easily obtained by your mechanical contractor or material supplier.
Site Plans – If required, this information must be obtained locally to include the information specific to your individual property.
Structural Calculations – In certain areas, particularly those in earthquake and hurricane zones, permit departments may require you to submit structural calculations for your particular conditions. When required, you should consult with a local structural engineer.
Plan Modifications
Want to make changes?
Receive a FREE modification estimate.Plan modification is a way of turning a stock plan into your unique custom plan. It's still just a small fraction of the price you would pay to create a home plan from scratch. We believe that modification estimates should be FREE!
We provide a modification service so that you can customize your new home plan to fit your budget and lifestyle.
Email Designer This is the best and quickest way to get a modification quote!
Please include your preferred Foundation Type and a Specific List of Changes. You can also attach a Sketch of Changes.
It's as simple as that!
Cost To Build
QUICK-Cost-To-Build Estimate
View an actual, LIVE cost report. This report is for demo purposes only. Not plan specific.
$24.95 per plan
** Available for U.S. only.
QUICK Cost-To-Build estimates have the following assumptions:
QUICK Cost-To-Build estimates are available for single family, stick-built, detached, 1 story, 1.5 story and 2 story home plans with attached or detached garages, pitched roofs on flat to gently sloping sites.QUICK Cost-To-Build estimates are not available for specialty plans and construction such as garage / apartment, townhouse, multi-family, hillside, flat roof, concrete walls, log cabin, home additions, and other designs inconsistent with the assumptions outlined in Item 1 above.
User is able to select and have costs instantly calculate for slab on grade, crawlspace or full basement options.
User is able to select and have costs instantly calculate different quality levels of construction including Economy, Standard, Premium. View Quality Level Assumptions.
Estimate will dynamically adjust costs based on the home plan's finished square feet, porch, garage and bathrooms.
Estimate will dynamically adjust costs based on unique zip code for project location.
All home plans are based on the following design assumptions: 8 foot basement ceiling height, 9 foot first floor ceiling height, 8 foot second floor ceiling height (if used), gable roof; 2 dormers, average roof pitch is 12:12, 1 to 2 covered porches, porch construction on foundations.
Summarized cost report will provide approximately 70 lines of cost detail within the following home construction categories: Site Work, Foundations, Basement (if used), Exterior Shell, Special Spaces (Kitchen, Bathrooms, etc), Interior Construction, Elevators, Plumbing, Heating / AC, Electrical Systems, Appliances, Contractor Markup. View a LIVE Sample Cost Report.
QUICK Cost-To-Build generates estimates only. It is highly recommend that one employs a local builder in order to get a more accurate construction cost.
All costs are "installed costs" including material, labor and sales tax.
* Limit one $24.95 credit per complete plan package order.
** Available for U.S. only.
Previous Q & A
Previous Questions and Answers
A: The basement level is unfinished, so it is not included in the square footage calculations. It would be roughly 1510 sf including the stairwell.
A: The material quantities will be separated into general categories such as: Wall Framing, Roof Framing, Exterior Materials, Roofing Materials, etc.
A: The PDF sets are scaled to be printed on 24"x36" paper which is a full size construction print. Smaller prints can be made for reference, but should not be scaled in the field. Foundation details simply show the presence of rebar in the footings. The exact quantity, size, and spacing will need to be based off of the soil bearing capacity of the construction site. This information can be obtained from a local engineer or designer.
A: Only the walkout option has windows. See attached rear elevation of walkout option.
View Attached FileA: The crawlspace shows the location of beams and piers. The plans call for pre-engineered floor joists as designed by the manufacturer. Traditional lumber could be used as long as it meets the loading requirements.
A: HVAC and water heater are located in the attic space. Depending on what type of water heater you use (tank or tankless) it may also be located on an exterior wall. Typically well equipment is not located within the footprint of the house. It is a separate structure away from the house.
A: There are many different sizes of doors and windows specified on the plans. These sizes will be made available on the construction drawings.
A: You'll need to check with local covenants to make sure that this is allowed. If so, you would simply purchase a multi-use plan package and a reverse option. We could send both options when fulfilling your order. Make sure to speak with a customer representative to assist with your order and make the appropriate notes for fulfillment of your order.
A: This plan is not designed specifically for handicapped accessibility. The bedroom doors are all at least 32" wide, but bathroom layouts and other areas would have to be re-designed to accommodate wheelchair access.
A: The majority of the construction drawings are at 1/4"=1'-0" scale. Some sections or details may be different.
A: Our plans are designed based on the codes in effect at the time of creation. For this plan, it is 2018 IRC.
A: Approximately 7'.
A: All of our CAD files are only available in .dwg format. We save files back to 2004 release so that older versions of AutoCad can open them.
A: It would be the same as the heated area above....roughly 1416 sf.
A: The plan is already designed with 2x4 walls, but the slab foundation is a chainwall not monolithic. Usually this is a fairly easy modification to make on site. If you need the plans to reflect a monolithic, it can be done as a modification for a fee of $250. However, due to our current workload the timeframe is 4-6 weeks.
A: No....this plan is on a CMU chainwall slab foundation.
A: No vault...this is a 10' ceiling as noted on the floorplan.
Common Questions:
A: Yes you can! Please click the "Modifications" tab above to get more information.
A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
