One-Story Style House Plan 58939

Specifications

Total Living Area:	2542 sq ft
Main Living Area:	2542 sq ft
Garage Type:	Attached
Garage Bays:	2
Foundation Types:	Plumbing Plan
Exterior Walls:	Concrete
House Width:	65'
House Depth:	68'
Number of Stories:	1
Bedrooms:	4
Full Baths:	3
Max Ridge Height:	27' from Front Door Floor Level
Primary Roof Pitch:	8:12
Roof Framing:	Truss
Porch:	161 sq ft
Formal Dining Room:	Yes
1st Floor Master:	Yes

Pricing

• PDF File: $1,640.00
• CAD File: $1,890.00
  Single Build License issued on CAD File orders.
• Right Reading (True) Reverse: $75.00
  All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.

Available Foundation Types:

• Plumbing Plan : No Additional Fee

Available Exterior Wall Types:

• Concrete: No Additional Fee

Prices subject to approval prior to fulfillment.

• Shipping Policy

What is Included in this House Plan?

1. Cover Page (A-1) - Front Elevation of House, Sheet Index, General Notes

2. Plumbing Plan (A-2) - (**Our plans do not show an actual foundation plan with slab thickness and structural reinforcement due to the fact that the plans need to be engineered according to the local codes where the house is going to be built.) Basic slab or stemwall foundation layout, Exterior dimensions, Dimensions to plumbing fixtures, General Notes

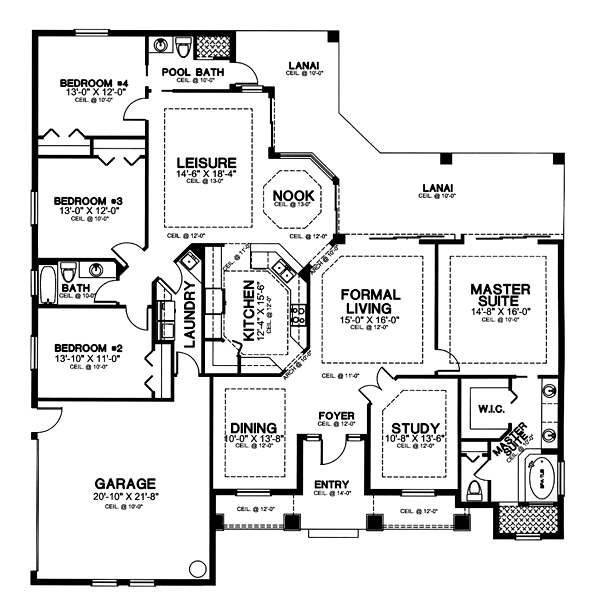

3. Note Plan (A-3) - Floor plan, General notes, Basic window and door schedules

4. Dimension Plan (A-4) - Interior dimensions of plan, Exterior dimensions of plan

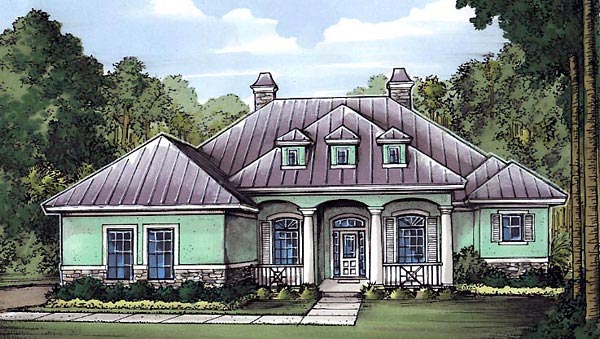

5. Elevations (A-5) - 4 Elevations of house (Front, Rear, Left and Right), General call outs, Roof pitch, Truss bearing heights, General notes, Details (where applicable)

6. Roof Plan (A-6) - Floor plans with a general roof design layout, Overhang dimensions, Truss bearing heights, beam slopes, and beam height changes, General notes

7. Sections Page (A-7) - General wall sections, Misc. details (stairs, tie beam, window and door buck details)

8. Electrical Plan (E-1) - General layout of switches, outlets and wiring, General television, and phone jack locations, General notes

Want to make changes?

Receive a FREE modification estimate in one of 3 ways. Our modification team is ready to help you adjust any plan to fit your needs. The ReDesign process is simple and estimates are free!

1. Complete this On-Line Request Form

2. Print, complete and fax this PDF Form to us at 1-800-675-4916.

3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.

Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.

We Work Fast!

When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!

We look forward to hearing from you!

Start today planning for tomorrow!

What will it cost to build your new home?
Let us help you find out!

• COOLhouseplans.com has partnered with Home-Cost.com to provide you the most accurate, interactive online estimator available. Home-Cost.com is a proven leader in residential cost estimating software for over 20 years.
• No Risk Offer: Order your Home-Cost Estimate now for just $29.95! We will provide you with a discount code in your receipt for when you decide to order any plan on our website than will more than pay you back for ordering an estimate.

Accurate. Fast. Trusted.
Construction Cost Estimates That Save You Time and Money.

With your 30-day online cost-to-build estimate you can start enjoying these benefits today.

• INSTANT RESULTS: Immediate turnaround—no need to wait days for a cost report.
• RELIABLE: Gain peace of mind and confidence that comes with a reliable cost estimate for your custom home.
• INTERACTIVE: Instantly see how costs change as you vary design options and quality levels of materials!
• REDUCE RISK: Minimize potential cost overruns by becoming empowered to make smart design decisions. Get estimates that save thousands in costly errors.
• PEACE OF MIND: Take the financial guesswork out of building your dream home.
• DETAILED COSTING: Detailed, data-backed estimates with +/-120 lines of costs / options for your project.
• EDITABLE COSTS: Edit the line-item labor & material price with the “Add/Deduct” field if you want to change a cost.

View Sample Report
View Feature List

Home-Cost.com’s INSTANT™ Cost-To-Build Report also provides you these added features and capabilities:

• Accurate cost database of 43,000 zip codes (US & Canada)
• Print cost reports or export to Excel®
• General Contractor or Owner-Builder contracting
• Estimate 1, 1½, 2 and 3-story home designs
• Slab, crawlspace, basement or walkout basement
• Foundation depth / excavation costs based on zip code
• Cost impact of bonus rooms and open-to-below space
• Pitched roof or flat roof homes
• Drive-under and attached garages
• Garage living – accessory dwelling unit (ADU) homes
• Duplex multi-family homes
• Barndominium / Farmdominium homes
• RV grages and Barndos with oversized overhead doors
• Costs adjust based on ceiling height of home or garage
• Exterior wall options: wood, metal stud, block
• Roofing options: asphalt, metal, wood, tile, slate
• Siding options: vinyl, cement fiber, stucco, brick, metal
• Appliances range from economy to commercial grade
• Multiple kitchen & bath counter / cabinet selections
• Countertop options range from laminate to stone
• HVAC, fireplace, plumbing and electrical systems
• Fire suppression / sprinkler system
• Elevators





Common Questions:

Got a question about this plan? Ask the Designer any question you may have. NOTE: If you have a plan modification question, please click on the Plan Modifications tab above.
