Tudor Style Multi-Family Plan 58965

Specifications

Total Living Area:	3465 sq ft
Garage Type:	Attached
Garage Bays:	2
Foundation Types:	Plumbing Plan
Exterior Walls:
House Width:	70'
House Depth:	80'
Number of Stories:	1
Bedrooms:	2
Full Baths:	2
Max Ridge Height:	27' from Front Door Floor Level
Primary Roof Pitch:	6:12
Roof Framing:	Truss
Porch:	63 sq ft
FirePlace:	Yes
1st Floor Master:	Yes
Main Ceiling Height:	10'

Pricing

• PDF File: $1,030.00
• CAD File: $1,280.00
  Single Build License issued on CAD File orders.

Available Foundation Types:

• Plumbing Plan : No Additional Fee

Available Exterior Wall Types:

Prices subject to approval prior to fulfillment.

• Shipping Policy

What is Included in this House Plan?

1. Cover Page (A-1) - Front Elevation of House, Sheet Index, General Notes

2. Plumbing Plan (A-2) - (**Our plans do not show an actual foundation plan with slab thickness and structural reinforcement due to the fact that the plans need to be engineered according to the local codes where the house is going to be built.) Basic slab or stemwall foundation layout, Exterior dimensions, Dimensions to plumbing fixtures, General Notes

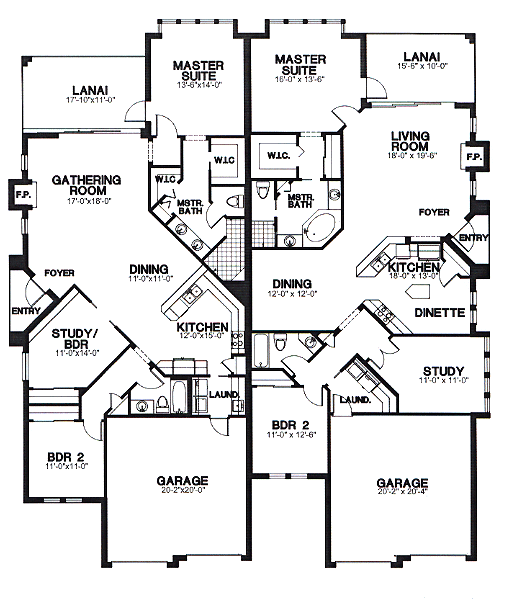

3. Note Plan (A-3) - Floor plan, General notes, Basic window and door schedules

4. Dimension Plan (A-4) - Interior dimensions of plan, Exterior dimensions of plan

5. Elevations (A-5) - 4 Elevations of house (Front, Rear, Left and Right), General call outs, Roof pitch, Truss bearing heights, General notes, Details (where applicable)

6. Roof Plan (A-6) - Floor plans with a general roof design layout, Overhang dimensions, Truss bearing heights, beam slopes, and beam height changes, General notes

7. Sections Page (A-7) - General wall sections, Misc. details (stairs, tie beam, window and door buck details)

8. Electrical Plan (E-1) - General layout of switches, outlets and wiring, General television, and phone jack locations, General notes
