Log Style House Plan 58983

Specifications

Total Living Area:	3338 sq ft
Lower Living Area:	1669 sq ft
Main Living Area:	1669 sq ft
Garage Type:	None
See our garage plan collection. If you order a house and garage plan at the same time, you will get 10% off your total order amount.
Foundation Types:	Plumbing Plan
Exterior Walls:	2x6
House Width:	58'
House Depth:	54'
Number of Stories:	2
Bedrooms:	4
Full Baths:	4
Max Ridge Height:	32' from Front Door Floor Level
Primary Roof Pitch:	8:12
Roof Framing:	Truss
Porch:	188 sq ft
FirePlace:	Yes
1st Floor Master:	Yes
Main Ceiling Height:	9'

Pricing

• PDF File: $1,340.00
• CAD File: $1,590.00
  Single Build License issued on CAD File orders.

Available Foundation Types:

• Plumbing Plan : No Additional Fee

Available Exterior Wall Types:

• 2x6: No Additional Fee

Prices subject to approval prior to fulfillment.

• Shipping Policy

What is Included in this House Plan?

1. Cover Page (A-1) - Front Elevation of House, Sheet Index, General Notes

2. Plumbing Plan (A-2) - (**Our plans do not show an actual foundation plan with slab thickness and structural reinforcement due to the fact that the plans need to be engineered according to the local codes where the house is going to be built.) Basic slab or stemwall foundation layout, Exterior dimensions, Dimensions to plumbing fixtures, General Notes

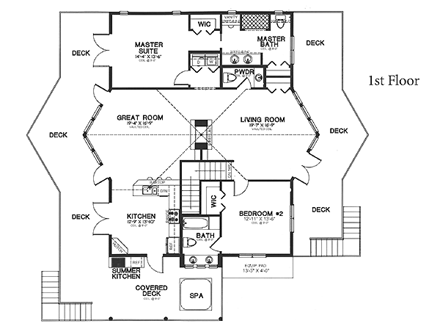

3. Note Plan (A-3) - Floor plan, General notes, Basic window and door schedules

4. Dimension Plan (A-4) - Interior dimensions of plan, Exterior dimensions of plan

5. Elevations (A-5) - 4 Elevations of house (Front, Rear, Left and Right), General call outs, Roof pitch, Truss bearing heights, General notes, Details (where applicable)

6. Roof Plan (A-6) - Floor plans with a general roof design layout, Overhang dimensions, Truss bearing heights, beam slopes, and beam height changes, General notes

7. Sections Page (A-7) - General wall sections, Misc. details (stairs, tie beam, window and door buck details)

8. Electrical Plan (E-1) - General layout of switches, outlets and wiring, General television, and phone jack locations, General notes

Want to make changes?

Receive a FREE modification estimate in one of 3 ways. Our modification team is ready to help you adjust any plan to fit your needs. The ReDesign process is simple and estimates are free!

1. Complete this On-Line Request Form

2. Print, complete and fax this PDF Form to us at 1-800-675-4916.

3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.

Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.

We Work Fast!

When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!

We look forward to hearing from you!

Start today planning for tomorrow!

QUICK-Cost-To-Build Estimate

• No Risk Offer: Order your Home-Cost Estimate now for just $24.95! We provide you with a 10% discount code in your receipt for when you decide to order any plan on our website that will more than pay you back!
• Get more accurate results, quicker! No need to wait for a reliable cost.
• Get a detailed cost report for your home plan with over 70 lines of summarized cost information in under 5 minutes!
• Cost report for your zip code. (the zip code can be changed after you receive the online report)
• Estimate 1, 1-1/2 or 2 story home plans. **
• Interactive! Instantly see the costs change as you vary quality levels Economy, Standard, Premium and structure such as slab, basement and crawlspace.
• Your estimate is active for 1 FULL YEAR!

QUICK Cost-To-Build estimates have the following assumptions:

QUICK Cost-To-Build estimates are available for single family, stick-built, detached, 1 story, 1.5 story and 2 story home plans with attached or detached garages, pitched roofs on flat to gently sloping sites.
QUICK Cost-To-Build estimates are not available for specialty plans and construction such as garage / apartment, townhouse, multi-family, hillside, flat roof, concrete walls, log cabin, home additions, and other designs inconsistent with the assumptions outlined in Item 1 above.
User is able to select and have costs instantly calculate for slab on grade, crawlspace or full basement options.
User is able to select and have costs instantly calculate different quality levels of construction including Economy, Standard, Premium. View Quality Level Assumptions.
Estimate will dynamically adjust costs based on the home plan's finished square feet, porch, garage and bathrooms.
Estimate will dynamically adjust costs based on unique zip code for project location.
All home plans are based on the following design assumptions: 8 foot basement ceiling height, 9 foot first floor ceiling height, 8 foot second floor ceiling height (if used), gable roof; 2 dormers, average roof pitch is 12:12, 1 to 2 covered porches, porch construction on foundations.
Summarized cost report will provide approximately 70 lines of cost detail within the following home construction categories: Site Work, Foundations, Basement (if used), Exterior Shell, Special Spaces (Kitchen, Bathrooms, etc), Interior Construction, Elevators, Plumbing, Heating / AC, Electrical Systems, Appliances, Contractor Markup. View a LIVE Sample Cost Report.
QUICK Cost-To-Build generates estimates only. It is highly recommend that one employs a local builder in order to get a more accurate construction cost.
All costs are "installed costs" including material, labor and sales tax.
* Limit one $24.95 credit per complete plan package order.
** Available for U.S. only.

Common Questions:

Got a question about this plan? Ask the Designer any question you may have. NOTE: If you have a plan modification question, please click on the Plan Modifications tab above.
