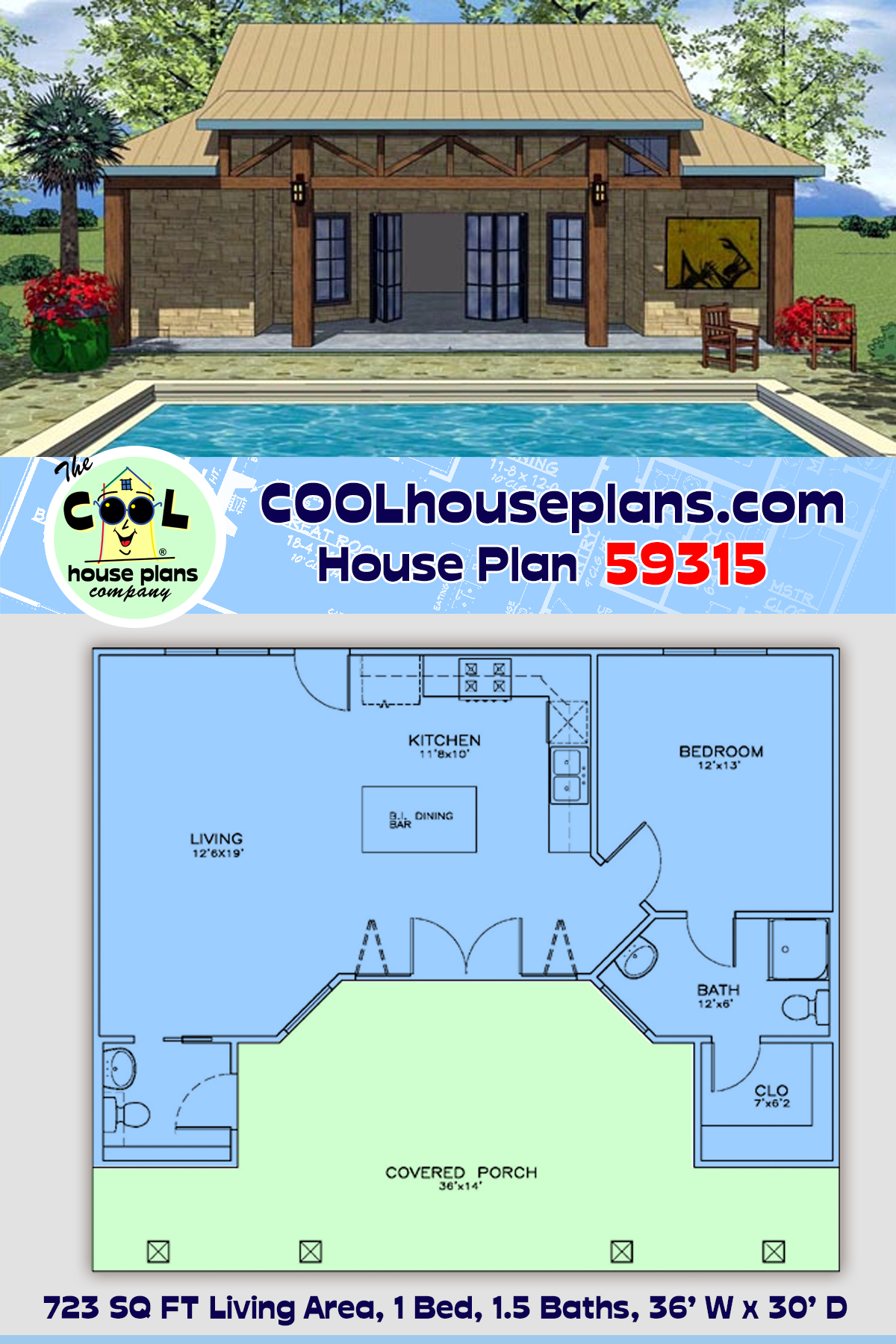

Craftsman Style House Plan 59315

Specifications

Total Living Area:	723 sq ft
Main Living Area:	723 sq ft
Garage Type:	None
See our garage plan collection. If you order a house and garage plan at the same time, you will get 10% off your total order amount.
Foundation Types:	Crawlspace - * $300.00 Slab
Exterior Walls:	2x4
House Width:	36'
House Depth:	30'
Number of Stories:	1
Bedrooms:	1
Full Baths:	1
Half Baths:	1
Max Ridge Height:	19' from Front Door Floor Level
Primary Roof Pitch:	8:12
Roof Load:	40 psf
Roof Framing:	Truss and/or Stick
Porch:	357 sq ft
1st Floor Master:	Yes
Main Ceiling Height:	9'

* May require additional drawing time.

Pricing

• PDF File: $625.00
• CAD File: $1,050.00
  Single Build License issued on CAD File orders.
• Right Reading (True) Reverse: $100.00
  All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.

Available Foundation Types:

• Crawlspace : $300.00
  May require additional drawing time, please call to confirm before ordering.
• Slab : No Additional Fee

Available Exterior Wall Types:

• 2x4: No Additional Fee

Prices subject to approval prior to fulfillment.

• Shipping Policy

What is Included in this House Plan?

Title Sheet 3D line drawing of the residence, plan number.

Foundation Plan
• Plan showing dimensional layout of slab foundation of the home.
• Necessary notations pertaining to foundation.
• Keyed section marks of footings, piers, etc.
• If optional conventional plan, floor joist type and direction. (Post-Tension slabs, basements by others.)

Detail Sheet
• This sheet has standard section details for the particular type of foundation chosen.
• Typical cornice sections and symbol schedule.
• Typical wall sections.
• Note: Above details may be on other sheets.

Floor Plans
• All wall placements with dimensions.
• Door & window sizes and descriptions.
• Room labels.
• Stairway dimensions, sections and layout. (May be shown on other sheets)
• Notes relating to vaults, electrical floor outlets, location of beams, headers.
• Suggested mechanical equipment locations.
Elevations
• Front, rear and all sides of the exterior elevations. (Scale – ¼” equals 1”-0)
• These sheets will include all necessary dimensions, material labels, roof slopes, pertinent dimensions.
• All architectural elements relating to the exterior of the home.
• Dormer locations on two story homes, if any.

Electrical Schematic Suggested light switch, outlet, ceiling fan locations, electrical symbol chart.

Section Drawings Cross sections of the home showing floor-ceiling heights, insulation, flooring and roofing details, as necessary.

Millwork Elevations Suggested cabinet, fireplace elevations as well as any distinctive architectural elements.

Roof Plan & Roof Framing Plan Shows the roof slopes & suggested rafter layouts.

What is not included These details can be provided by your builder or local suppliers.
• Details/layout of heating/cooling systems and ductwork.
• Plumbing schematics, pipe sizes, locations and details.
• Electrical wiring layouts and details.
• Standard, daylight or partial basement plans.
• Any other location specific engineering.
• Specification Sheets
