Plan 60083 Order Code: C101
Traditional Style 3 Car Garage Apartment Plan 60083
1216 Sq Ft, 2 Bedrooms, 2 Bathrooms
Quick Specs
1216 Total Living Area48 Main Level
1168 Upper Level
2 Bedrooms
1 Full Baths, 1 Half Baths
3 Car Garage
44'6 W x 42'0 D
Quick Pricing
PDF File: $1,300.005 Sets: $1,200.00
CAD File: $1,500.00
Plan Specifications
Specifications
| Total Living Area: | 1216 sq ft |
| Main Living Area: | 48 sq ft |
| Upper Living Area: | 1168 sq ft |
| Garage Area: | 1196 sq ft |
| Garage Type: | Attached |
| Garage Bays: | 3 |
| Foundation Types: | Slab |
| Exterior Walls: | 2x6 |
| House Width: | 44'6 |
| House Depth: | 42'0 |
| Number of Stories: | 2 |
| Bedrooms: | 2 |
| Full Baths: | 1 |
| Half Baths: | 1 |
| Max Ridge Height: | 28'0' from Front Door Floor Level |
| Primary Roof Pitch: | 12:12 |
| Roof Framing: | Stick |
| Deck: | 583 sq ft |
| 2nd Floor Laundry: | Yes |
| Main Ceiling Height: | 9' |
| Upper Ceiling Height: | 9' |
Special Features:
Plan Package Pricing
Pricing
Designer does not allow modifications be made to PDF. Please order CAD file for modifications.Available Foundation Types:
Available Exterior Wall Types:
Prices subject to approval prior to fulfillment.What's Included?
What is Included in this House Plan?
These plans agree with basic FHA/VA regulations, and meet (CABO) one and two family dwelling code. Check with your builder regarding local codes that may vary. Minor alterations can be made by your local builder without drawing new plans. The owner and contractor assume the responsibility to meet all local codes.Square footage calculations are based on total heated space only and will NOT include garages, porches or exterior storage areas. NOTE: Thses plans will include ALL of the following:
FOUNDATION PLAN-On many of our plans we offer you options on the type of foundation you prefer. The available options for each plan are shown on the page with the plans.
FLOOR PLAN-Included with your plans will be a detailed floor plan, 1/4 inch scale, including location of lights, receptacles, switches and plumbing fixtures. Window and door sizes are noted.
ELEVATIONS-Our plans include complete front elevations drawns at 1/4" scale, other elevations drawn at 1/8" scale.
DETAILS-We furnish any necessary sections for construction of the home like Wall Sections, Stair Sections, Foundation Sections, etc.
Plan Modifications
Want to make changes?
Receive a FREE modification estimate:Plan modification is a way of turning a stock plan into your unique custom plan. It's still just a small fraction of the price you would pay to create a home plan from scratch. We believe that modification estimates should be FREE!
We provide a modification service so that you can customize your new home plan to fit your budget and lifestyle.
Simply contact the modification department via...
Email Us This is the best and quickest way to get a modification quote!
Please include your Telephone Number, Plan Number, Foundation Type, State you are building in and a Specific List of Changes.
It's as simple as that!
Previous Q & A
Previous Questions and Answers
A: Currently there is not enough room. The bath would need to be wider to add a shower. The bath would need to encroach on the garage bay about 4’-0” to add the shower.
A: This plan was designed to be “stick” built and not trusses. As it says under the “specifications” tab on the web site the total height of the structure is 28’-0” and the ceiling height is 9’-0” for each level. The shower can be a bath tub We can remove the rear terrace for $250.00 after the purchase of the PDF file Family Home Plans The plan comes with a “roof plan” showing the roof pitches
A: Making the garage a 12’-0” ceiling it would require 4 additional risers to be added in the stair system thus changing: 1: Remove the sink island/bar top cabinet and put the sink and the dishwasher on the bath wall cabinets. 2: Remove the front porch area and put the entrance door entering directly from the outside If one of these options would be suitable then request a modification form the web site.
A: Each door is 9-0 X 8-0
Common Questions:
A: Yes you can! Please click the "Modifications" tab above to get more information.
A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
Our Low Price Guarantee
If you find the exact same plan featured on a competitor's web site at a lower price, advertised OR special SALE price, we will beat the competitor's price by 5% of the total, not just 5% of the difference! To take advantage of our guarantee, please call us at 800-482-0464 or email us the website and plan number when you are ready to order. Our guarantee extends up to 4 weeks after your purchase, so you know you can buy now with confidence.
Call 800-482-0464
The COOL™ house plans company
COOLest house plans on the internet!

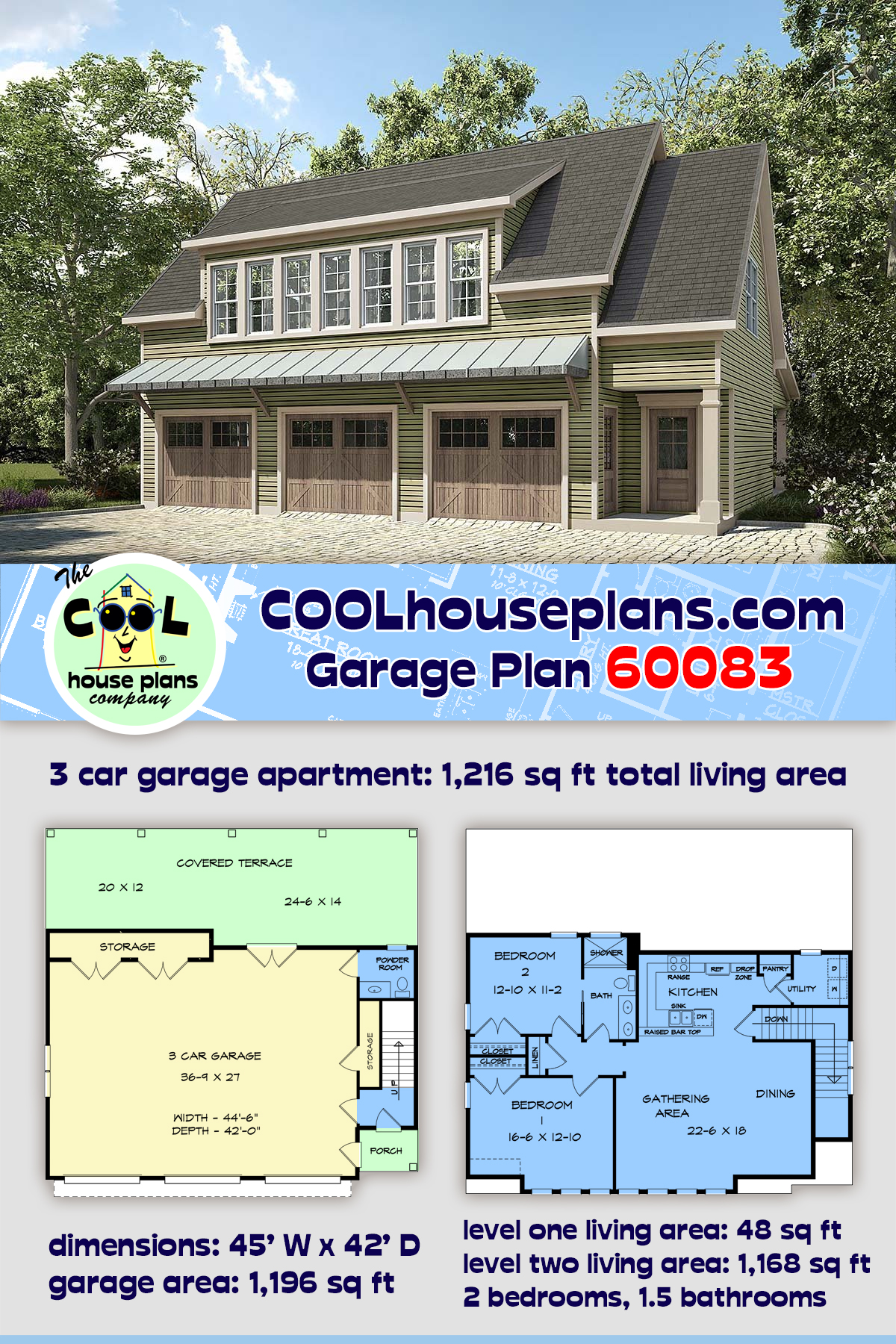

Info Sheet
