Mediterranean Style House Plan 71541

Specifications

Total Living Area:	7955 sq ft

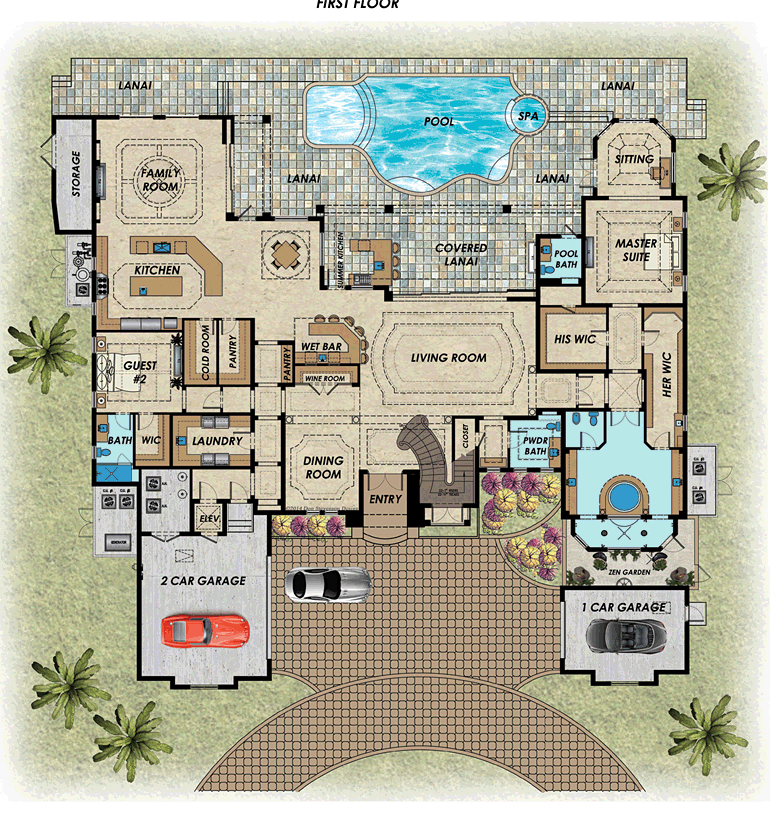

Main Living Area:	4782 sq ft

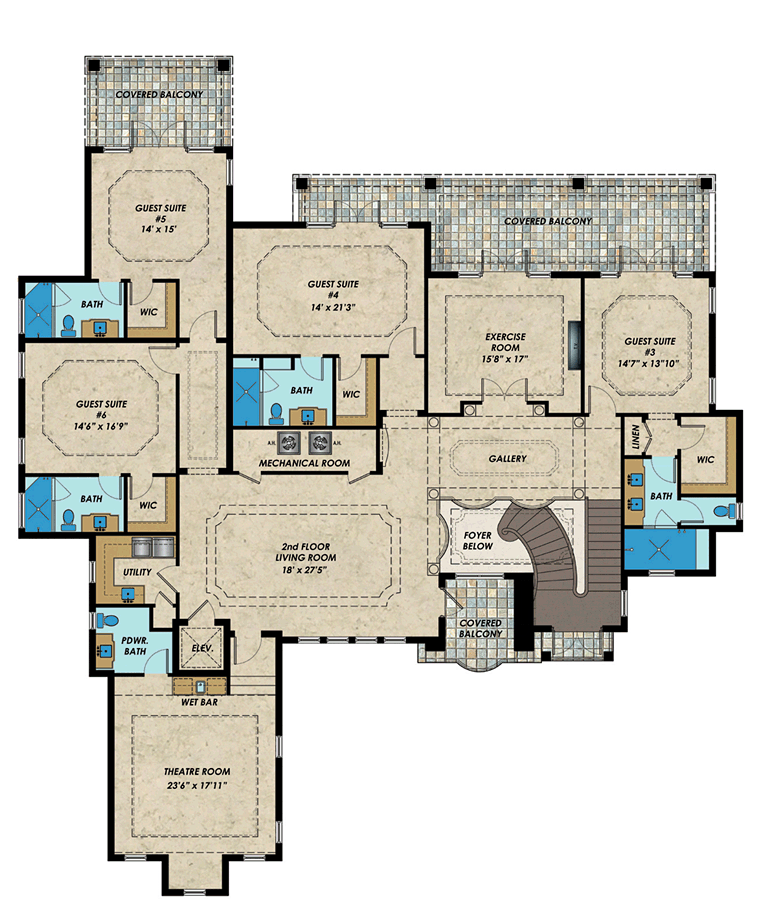

Upper Living Area:	2015 sq ft
Garage Area:	987 sq ft
Garage Type:	Attached
Garage Bays:	3
Foundation Types:	Slab
Exterior Walls:
House Width:	110'6
House Depth:	98'8
Number of Stories:	2
Bedrooms:	6
Full Baths:	6
Half Baths:	2
Max Ridge Height:	35'0 from Front Door Floor Level
Primary Roof Pitch:	8:12
Roof Framing:	Unknown
Formal Dining Room:	Yes
FirePlace:	Yes
2nd Floor Laundry:	Yes
1st Floor Master:	Yes
Main Ceiling Height:	9'11
Upper Ceiling Height:	9'0

Special Features:

• Courtyard
• Deck or Patio
• Outdoor Kitchen
• Outdoor Pool

Pricing

• PDF File: $5,500.00
• CAD File: $6,000.00
  Single Build License issued on CAD File orders.
• Right Reading (True) Reverse: $300.00
  All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.

Available Foundation Types:

• Slab : No Additional Fee

Available Exterior Wall Types:

Prices subject to approval prior to fulfillment.

• Shipping Policy

What is Included in this House Plan?

The plan set shall include the following sheets and information:

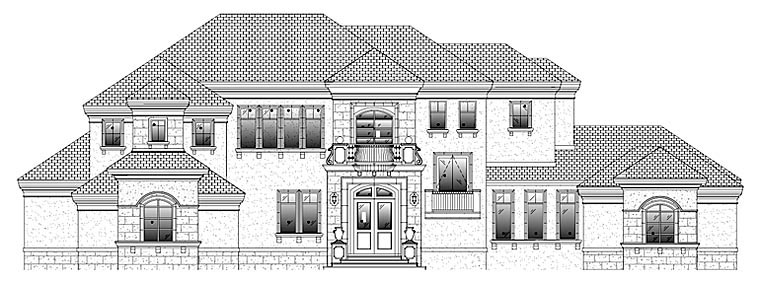

Exterior Elevations
Drawn at 1/8" to 1/4" = 1'-0" Scale,and Includes:
Material Labels
Floor-to-Floor Heights
Roof Slope Indicators

Dimensional and Noted Floor Plans
Drawn at 1/8" to 1/4" = 1'-0" Scale, and Includes:
Door and Window Sizes
Completely Dimensioned Floor Plan
Room Labels and Interior Room Sizes

Electrical Layouts
All Electrical Outlets, Fixtures, and Switching

Slab Plan
Drawn at 1/8" to 1/4" = 1'-0" Scale, and Includes:
Floor and Deck Joist Size and Spacing
Rough-in Plumbing Location (if applicable)
Mechanical Equipment Locations (if applicable)
Electrical Locations (if applicable)

Building Sections
Drawn at 1/8" to 1/4" = 1'-0" Scale, and Includes:
Floor-to-Floor Heights
Non-Typical Plate Heights Indicated

Typical Wall Sections
Drawn at 1/8" to 1/2" = 1'-0" Scale, and Includes:
All Labels Indicating Wall Construction
Foundation Wall Thickness and Reinforcing
Insulation Type and Thickness

Miscellaneous Notes and Details
Miscellaneous General Notes
Stairway details (if applicable)
