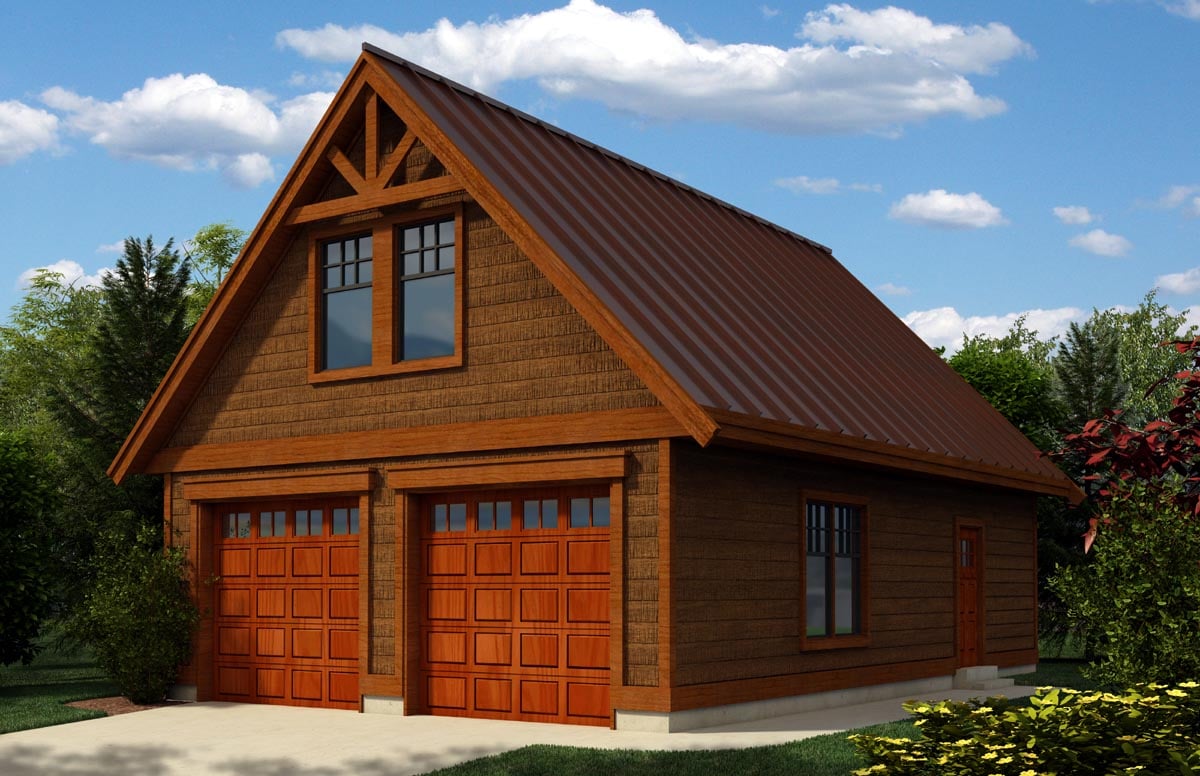

Craftsman Style 2 Car Garage Apartment Plan 76019

A: Hi, For design 76019. The roof pitch for this design is 12:12 and the roof joists go right down to the loft floor level. So the loft floor level at the six foot high level would be approximately eleven feet wide by thirty-five feet long. Thank you for your interest in one of my designs,

A: This design has a roof pitch of 12:12 and the roof joists slope down to the floor level at the sides. So the useable width with at least a 4’ side wall height would be 15’-8”. A 5’ side wall height would be 13’-8”. A 6’ side wall height would be 11’-8”. A 7’ side wall height would be 9’-8”.

A: The underside of the loft ridge beam is set at 10’-8” above the floor level. The ceiling then slopes down to the floor level at a 12:12 roof pitch. (so each horizontal foot the roof sloped down one foot. Hope this answers your question.

A: The underside of the loft ridge beam is set at 10’-8” above the floor level. The ceiling then slopes down to the floor level at a 12:12 roof pitch. (so each horizontal foot the roof sloped down one foot. Hope this answers your question.

A: First floor ceiling height is 9’. The garage doors are 9’ wide by 8’ high. The second level ceiling starts at the floor level and slopes up to the center ridge beam at a height of 10’-8”. The overall height from the grade level to the top of the ridge is approximately 24’-2”.

A: Design # 76019 The roof system is 2 x 12 roof joists supported by a ridge beam. The loft floor is 2 x 10 floor joists supported by a beam, which is supported by the posts. Presently I do not have a pre-drawn plan without the posts. You could take this design into a truss supplier and have them make “engineered attic trusses”, which would be the floor and roof combined, this way eliminating: the posts, floor support beam, the posts in the loft as well as the ridge beam. Best regards,

A: I calculate the approximate mid gable height to be 16’-6”. (measured to the mid height between the loft floor to the top of the ridge beam) An option, going to an eight foot first level from nine feet and a slight roof pitch reduction, would get the height to your allowable fifteen feet. Thank you for your interest in one of my designs,

A: Sorry the only roof design that is pre-drawn is the one shown on the web site. The living space size would be dictated by the Gambrel framing type, either conventional framed of roof trussed. You may lose some living space width but you would gain with more usable wall height. The benefit with using gambrel roof trusses, is that it would eliminate the need for the support posts in the garage area. Thank you for your interest in one of my designs. Regan

A: Sorry. The answer that you are referring to, is an answer that was for my design number 76016 and was posted here by mistake. Design 76019 is a manual drawing and not available in a cad format. You can purchase a PDF of this design if you can work with that format. Best regards, Regan

A: You could use engineered attic trusses which would span the entire width of the garage and eliminate the need for the support posts in the garage and the loft area. The attic trusses are designed for this type of situation. Thank you for your interest in one of my designs.

A: Based on the publication “The Span Book” from the Canadian Wood Council: For roof joists, roof snow load of 52.2 psf: 2 x 10 no. 2 D. fir- larch would span 12’-7” at 24” o.c. 0r 2 x 10 no. 2 hem-fir would span 13’-2” at 24” o.c. Or 2 x 10 no. 2 spf would span 12’-6” at 24” o.c. So either one of these species would still work at 24” o.c. for this design. Best regards, Regan

A: The composite live load for design 1741 is 32 psf which is the equivalent to a ground snow load of 44 psf. If your ground snow load is 84 psf you would need to enlist the services of a engineer registered in the state where the construction will occur to provide a snow load upgrade. The design calls up conventional roof framing with 2 x 12 roof joists at 24 inches on center. You can purchase a pdf or CAD file of this design from familyhomeplans to simplify this upgrade process. Please email with any questions or if you require any additional information. Best regards, Regan

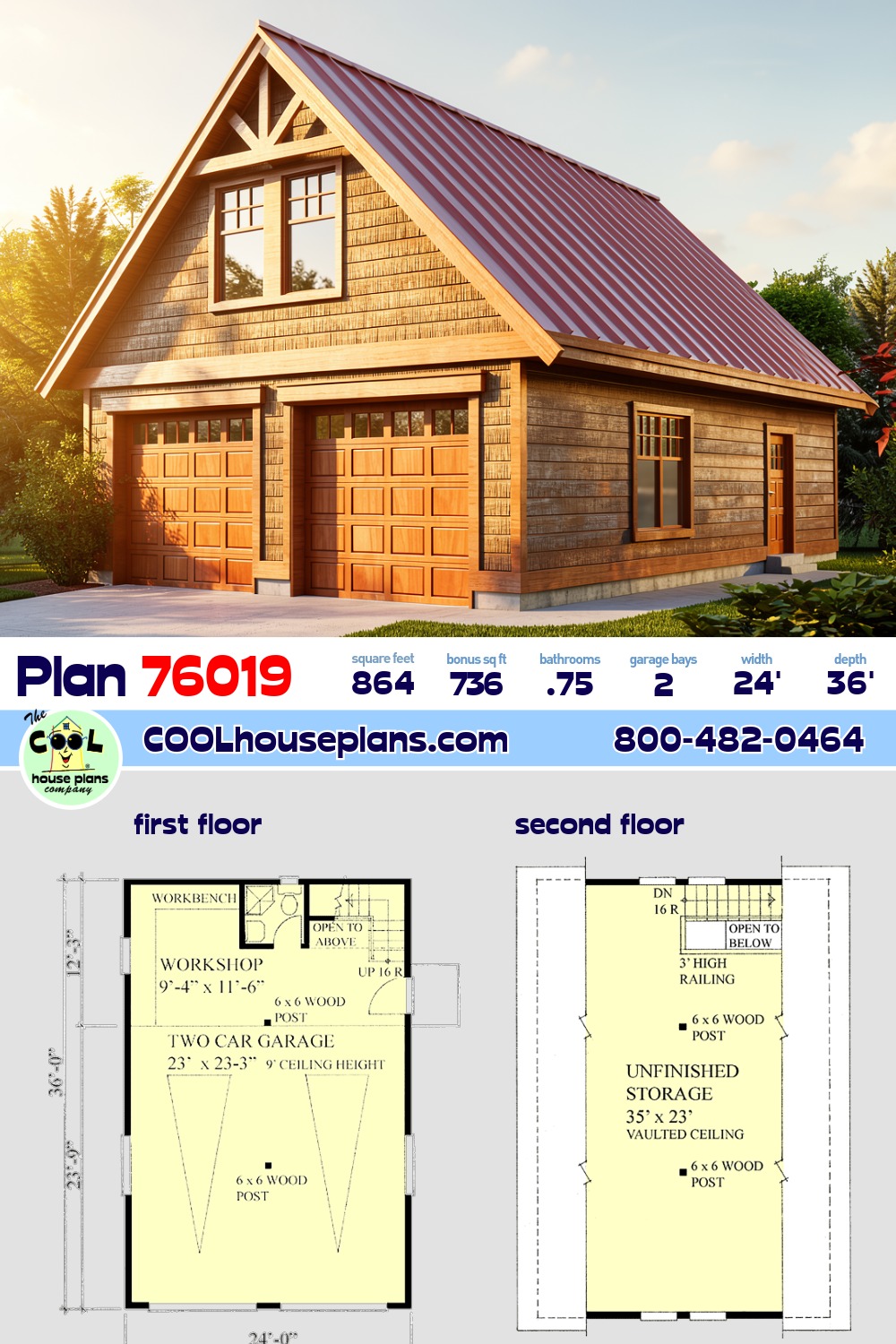

A: Hi, Presently the garage and workshop area are open to each other. It would be easy to add a wall from the end of the workshop across to the entry man door. This wall would just be a non-loading bearing partition wall, and not supporting any structure. Best regards, Regan

A: The garage has a nine foot ceiling height with two nine foot wide by eight foot high garage doors.

I would be happy to modify this garage to suit your specific requirements, if required.

A: Yes to converting the garage workshop into a kitchen area. The inside dimensions for this space is 10’-4” wide by 11’-6” deep. If this garage loft is intended to sleep in, and the garage is to have vehicles, you would need to close off between the garage and the living space. Presently the loft is open to the garage.

The loft slopes from 2” at the exterior wall to 10’ at the interior peak. The middle portion measured at 6’-6” high would have a width of 10’-4”.

Please email with questions or if you require any additional information.

Thank you for your interest in one of my designs,

Regan

A: The overall height for design is 24’-2”, from the finished grade to the ridge.

A: Yes you can! Please click the "Modifications" tab above to get more information.
