Plan 81224 Order Code: C101

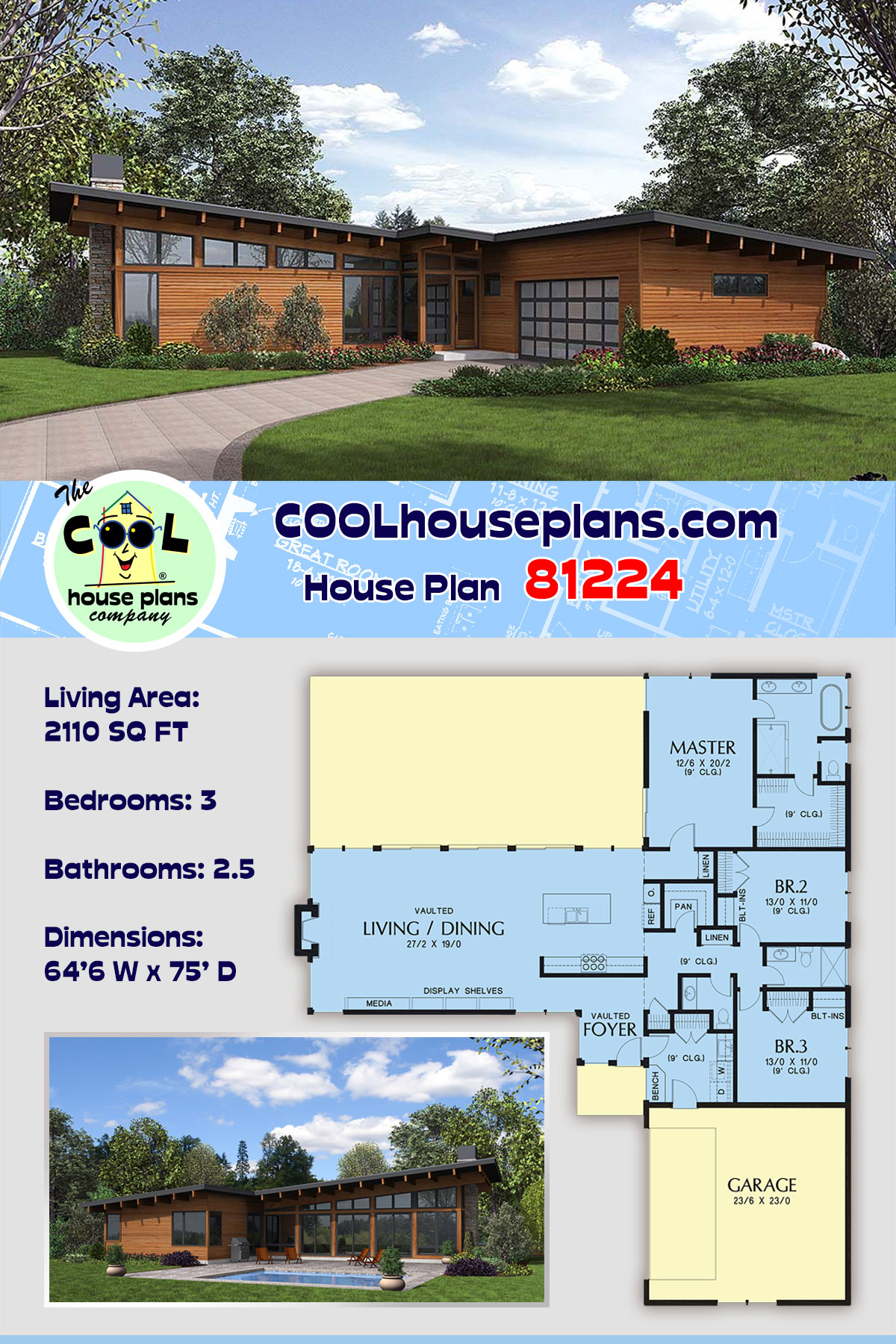

Contemporary Style House Plan 81224
2110 Sq Ft, 3 Bedrooms, 2 Full Baths, 1 Half Baths, 2 Car Garage
Quick Specs
2110 Total Living Area2110 Main Level
3 Bedrooms
2 Full Baths, 1 Half Baths
2 Car Garage
64'6 W x 75'0 D
Quick Pricing
PDF File: $1,571.005 Sets: $1,771.00
5 Sets plus PDF File: $1,821.00
CAD File: $3,142.00
Plan Specifications
Specifications
| Total Living Area: | 2110 sq ft |
| Main Living Area: | 2110 sq ft |
| Garage Area: | 576 sq ft |
| Garage Type: | Attached |
| Garage Bays: | 2 |
| Foundation Types: | Basement - * $519.00 Total Living Area may increase with Basement Foundation option. Crawlspace Slab |
| Exterior Walls: | 2x6 |
| House Width: | 64'6 |
| House Depth: | 75'0 |
| Number of Stories: | 1 |
| Bedrooms: | 3 |
| Full Baths: | 2 |
| Half Baths: | 1 |
| Max Ridge Height: | 16'0 from Front Door Floor Level |
| Primary Roof Pitch: | 1:12 |
| Roof Load: | 25 psf |
| Roof Framing: | Stick |
| Porch: | 47 sq ft |
| FirePlace: | Yes |
| Main Ceiling Height: | 9' |
Special Features:
Plan Package Pricing
Pricing
Available Foundation Types:
Available Exterior Wall Types:
Prices subject to approval prior to fulfillment.What's Included?
What is Included in this House Plan?
Exterior ElevationsIn addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.
Note: Sections and Elevations depict the default foundation, regardless of optional foundation page choices
Foundation Plan
The foundation page dimensions, concrete walls, footings, pads, posts, beams, bearing walls, and any stepped foundation information along with any retaining wall info (schematic only). A typical wall section for the home is also usually included on this page (if not, it is elsewhere in your plan set, as space allows). If your plan features a poured concrete slab rather than a basement or crawlspace, the foundation page shows footings and details for the slab, and includes plumbing locations.
Floor Plan(s)
Exterior and interior wall framing, and windows/doors are dimensioned. Room sizes are indicated and any beams, posts and structural bearing points are called out. The floorplans include an electrical legend, and electrical fittings, lights and outlets are shown. Floor Plans will also indicate cross–section details (provided on the sections page) and show any special framing details applicable to the design. Cabinet elevations are included for kitchen and bathrooms; some designs feature cabinet elevations for design–related built–ins too.
Building Sections
Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Our section pages also show how the stairs are calculated (if there are some) and depict roof and foundation members. We try and draw sections to show the most useful information — choosing locations where there are elements you or your contractor might need clarification on.
Note: Sections and Elevations depict the default foundation, regardless of optional foundation page choices
Roof Plan
Roof framing or truss directions are shown, slope directions are indicated and structural members are sized and called out if applicable. The gravity loads used to calculate the rafters, beams and posts are indicated , and we also show gutters, downspouts, and any roof venting required for your home.
Notes and Details Page(s)
Your home comes detailed to meet the requirements of the latest adopted version of the ‘International Residential Code’, and our notes and details pages outline all the elements applicable to the design of your home. Compliance with further standards may need to be incorporated into your plan set, depending on the requirements of your building department — these are usually done locally.
Plan Modifications
Want to make changes?
Receive a FREE modification estimate in one of 3 ways. Our modification team is ready to help you adjust any plan to fit your needs. The ReDesign process is simple and estimates are free!1. Complete this On-Line Request Form
2. Print, complete and fax this PDF Form to us at 1-800-675-4916.
3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.
Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.
We Work Fast!
When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!
We look forward to hearing from you!
Start today planning for tomorrow!
Cost To Build
QUICK-Cost-To-Build Estimate
View an actual, LIVE cost report. This report is for demo purposes only. Not plan specific.
$24.95 per plan
** Available for U.S. only.
QUICK Cost-To-Build estimates have the following assumptions:
QUICK Cost-To-Build estimates are available for single family, stick-built, detached, 1 story, 1.5 story and 2 story home plans with attached or detached garages, pitched roofs on flat to gently sloping sites.QUICK Cost-To-Build estimates are not available for specialty plans and construction such as garage / apartment, townhouse, multi-family, hillside, flat roof, concrete walls, log cabin, home additions, and other designs inconsistent with the assumptions outlined in Item 1 above.
User is able to select and have costs instantly calculate for slab on grade, crawlspace or full basement options.
User is able to select and have costs instantly calculate different quality levels of construction including Economy, Standard, Premium. View Quality Level Assumptions.
Estimate will dynamically adjust costs based on the home plan's finished square feet, porch, garage and bathrooms.
Estimate will dynamically adjust costs based on unique zip code for project location.
All home plans are based on the following design assumptions: 8 foot basement ceiling height, 9 foot first floor ceiling height, 8 foot second floor ceiling height (if used), gable roof; 2 dormers, average roof pitch is 12:12, 1 to 2 covered porches, porch construction on foundations.
Summarized cost report will provide approximately 70 lines of cost detail within the following home construction categories: Site Work, Foundations, Basement (if used), Exterior Shell, Special Spaces (Kitchen, Bathrooms, etc), Interior Construction, Elevators, Plumbing, Heating / AC, Electrical Systems, Appliances, Contractor Markup. View a LIVE Sample Cost Report.
QUICK Cost-To-Build generates estimates only. It is highly recommend that one employs a local builder in order to get a more accurate construction cost.
All costs are "installed costs" including material, labor and sales tax.
* Limit one $24.95 credit per complete plan package order.
** Available for U.S. only.
Previous Q & A
Previous Questions and Answers
A: Thanks for the question - we measure sqft to exterior walls, per industry standard. To help answer your question - "what am I missing?" - I notice in your estimations that you guess 30x20 for the living room wing, but the living/dining alone is 27'-2", without the kitchen. Thats actually a 10ft discrepancy, its actually 40x20 including the kitchen. For your 40x25 estimate of the second wing, the Master Bedroom (20ft) and two 11ft bedrooms already exceeds the 40ft estimate without including the bathroom or the bedroom closets that are between the bedrooms (or the walls).... I think those are what threw you off. The Foyer is 6' x 8', just for added info. If you adjusted your estimates to 40x20, 50x25, and 6x8, you'd be much closer to the calculated total. Hope that helps clarify where the calculation comes from
A: The roof pitch is 1/12 and the roof is a metal/standing seam roof.
A: All of our plans are designed for 25lbs of snow.
A: The ceiling in the great room vaults from 11' at the kitchen to 14'-5" at the left end of the great room. (5) 5-1/8"x16-1/2" 32' in length GluLam Beams spaced 8'-0" +/- run front to back and are exposed. Engineered rafters are 14" for a 25 psf snow load. The same roof/ceiling framing elements are specified throughout the house. Ducts run through the crawlspace. Hopefully, this information is helpful.
A: The plans call for horizontal lap siding, and stone veneer. The roof is "Standing seam metal roof".
A: Good Afternoon The stone on the fireplace is stone veneer. The outside siding is horizontal lap siding. The headers are just any sort of trim work that you choose. It could be hardie trim or cedar trim. Roof is a standing seam metal roof. . Hope that helps.
A: This is what our IT person said about your customer's question: https://www.chiefarchitect.com/support/article/KB-00170/using-cad-to-walls-from-an-imported-dwg-dxf.html As that page indicates, the customer would import our 2D drawings/line work for reference, and then use Chief Architect’s 3D tools to create a 3D version of them, so it is going to require a certain level of proficiency on the part of the end-user with that software. The dwg file format from AutoCAD is compatible, though. We could always send them a test drawing in advance; like maybe a single page of the CAD file, for example.
A: Hello - The kitchen is not included in the living/dining room. The kitchen is measured from the edge of the island to the back wall of the oven at 13'11". The depth is from the back wall of the stove to the edge of the oven wall 11'6". These dimensions are approximate. Thank you
A: Hello - When we do have interior photos of our plans we showcase those on our website. Unfortunately, for this plan we do not. Thank you!
A: If you would like to purchase the multi-use license, you would need to purchase the CAD file which is $2,682. That would allow you to build the home as many times as you need. We also include PDF's along with the CAD drawings.
A: We don't have any interior photos of this house. The HVAC is located in the garage. We don't typically show that on the renderings.
A: Hello - All of our plans are designed for 25# of snow. You will need to take the plan to a local engineer to have them modify the roof snow load to match what your local area requires. Thank you!
A: All of the doors are 8'.
A: Yes, they are structural. But you could box them in if you don't want them exposed.
A: Hello - The Liv/Din ceiling vaults to 14' 5". The Master bedroom vaults to 11' 1".
Common Questions:
A: Yes you can! Please click the "Modifications" tab above to get more information.
A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
