Plan 81247 Order Code: C101
Ranch Style House Plan 81247
2203 Sq Ft, 4 Bedrooms, 2 Full Baths, 1 Half Baths, 2 Car Garage
Quick Specs
2203 Total Living Area2203 Main Level
327 Bonus Area
4 Bedrooms
2 Full Baths, 1 Half Baths
2 Car Garage
50'0 W x 62'0 D
Quick Pricing
PDF File: $1,730.005 Sets plus PDF File: $2,030.00
CAD File: $3,460.00
COOL Plan Description
Craftsman Ranch House Plan with 2,203 Sq Ft, 4 Bed, 2.5 Bath, 2 Car Garage
Right on, cool cats—get ready to make the scene with this groovy Craftsman Ranch house plan, clocking in at a solid 2,203 sq ft of living space. With 4 bedrooms, 2.5 baths, and a choice 2-car attached garage, this pad is built for comfort, style, and a laidback lifestyle that's outta sight.
Dressed in brick or stone veneer, the exterior has that classic Craftsman vibe, complete with a welcoming front porch that's perfect for chillin' with your morning brew. A rear covered porch and an extra 380 sq ft of porch space set the stage for righteous outdoor hangouts or mellow evenings with friends and family.
Step inside and you'll dig the open floor plan where the kitchen is the main event—featuring a large island and plenty of cabinets for all your culinary adventures. The kitchen flows into box-beam ceilinged living and dining rooms, giving the whole space a far out, airy feel. Natural light pours in and draws your eye right out to the backyard and outdoor living zone—let's boogie!
The primary suite is on the flip side of the house for maximum privacy, and it's stellar: vaulted ceiling, garden views, and a spa-like bath with a separated tub, walk-in shower, private water closet, and double vanities. Plus, there's a massive walk-in closet with a built-in ironing station—total boss move for keeping things tidy.
Three additional bedrooms are tucked away for peace and quiet, perfect for youngbloods, guests, or even a funky home office. The flex space can morph into whatever your lifestyle calls for—playroom, media room, or that extra bedroom when you need it.
Bonus features? You bet! There's a rad bonus room upstairs, a mudroom with dropzone to stash your gear, and a roomy pantry to keep your kitchen organized. Choose your foundation—basement, crawlspace, or slab—to suit your scene.
This house plan is righteous for families, entertainers, or anyone who digs a solid, energy-efficient Craftsman Ranch with choice amenities and chill vibes. Can you dig it? Keep on truckin'—this one's a winner!
Plan Specifications
Specifications
| Total Living Area: | 2203 sq ft |
| Main Living Area: | 2203 sq ft |
| Bonus Area: | 327 sq ft |
| Garage Area: | 447 sq ft |
| Garage Type: | Attached |
| Garage Bays: | 2 |
| Foundation Types: | Basement - * $552.00 Total Living Area may increase with Basement Foundation option. Crawlspace Slab |
| Exterior Walls: | 2x6 |
| House Width: | 50'0 |
| House Depth: | 62'0 |
| Number of Stories: | 1 |
| Bedrooms: | 4 |
| Full Baths: | 2 |
| Half Baths: | 1 |
| Max Ridge Height: | 25'6 from Front Door Floor Level |
| Primary Roof Pitch: | 8:12 |
| Roof Load: | 25 psf |
| Roof Framing: | Truss |
| Porch: | 380 sq ft |
| FirePlace: | Yes |
| 1st Floor Master: | Yes |
| Main Ceiling Height: | 9'0 |
Special Features:
Plan Package Pricing
Pricing
Available Foundation Types:
Available Exterior Wall Types:
Prices subject to approval prior to fulfillment.What's Included?
What is Included in this House Plan?
Exterior ElevationsIn addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.
Note: Sections and Elevations depict the default foundation, regardless of optional foundation page choices
Foundation Plan
The foundation page dimensions, concrete walls, footings, pads, posts, beams, bearing walls, and any stepped foundation information along with any retaining wall info (schematic only). A typical wall section for the home is also usually included on this page (if not, it is elsewhere in your plan set, as space allows). If your plan features a poured concrete slab rather than a basement or crawlspace, the foundation page shows footings and details for the slab, and includes plumbing locations.

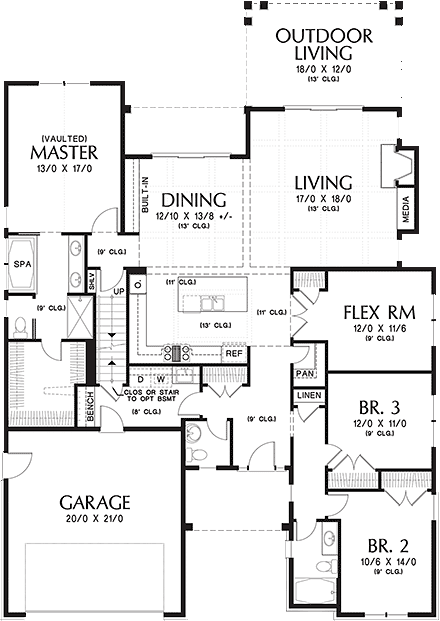

Floor Plan(s)
Exterior and interior wall framing, and windows/doors are dimensioned. Room sizes are indicated and any beams, posts and structural bearing points are called out. The floorplans include an electrical legend, and electrical fittings, lights and outlets are shown. Floor Plans will also indicate cross–section details (provided on the sections page) and show any special framing details applicable to the design. Cabinet elevations are included for kitchen and bathrooms; some designs feature cabinet elevations for design–related built–ins too.
Building Sections
Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Our section pages also show how the stairs are calculated (if there are some) and depict roof and foundation members. We try and draw sections to show the most useful information — choosing locations where there are elements you or your contractor might need clarification on.
Note: Sections and Elevations depict the default foundation, regardless of optional foundation page choices
Roof Plan
Roof framing or truss directions are shown, slope directions are indicated and structural members are sized and called out if applicable. The gravity loads used to calculate the rafters, beams and posts are indicated , and we also show gutters, downspouts, and any roof venting required for your home.
Notes and Details Page(s)
Your home comes detailed to meet the requirements of the latest adopted version of the ‘International Residential Code’, and our notes and details pages outline all the elements applicable to the design of your home. Compliance with further standards may need to be incorporated into your plan set, depending on the requirements of your building department — these are usually done locally.
Plan Modifications
Want to make changes?
Receive a FREE modification estimate in one of 3 ways. Our modification team is ready to help you adjust any plan to fit your needs. The ReDesign process is simple and estimates are free!1. Complete this On-Line Request Form
2. Print, complete and fax this PDF Form to us at 1-800-675-4916.
3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.
Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.
We Work Fast!
When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!
We look forward to hearing from you!
Start today planning for tomorrow!
Cost To Build
What will it cost to build your new home?
Let us help you find out!
Accurate. Fast. Trusted.
Construction Cost Estimates That Save You Time and Money.
$29.95 per plan
** Available for U.S. and Canada
With your 30-day online cost-to-build estimate you can start enjoying these benefits today.
- INSTANT RESULTS: Immediate turnaround—no need to wait days for a cost report.
- RELIABLE: Gain peace of mind and confidence that comes with a reliable cost estimate for your custom home.
- INTERACTIVE: Instantly see how costs change as you vary design options and quality levels of materials!
- REDUCE RISK: Minimize potential cost overruns by becoming empowered to make smart design decisions. Get estimates that save thousands in costly errors.
- PEACE OF MIND: Take the financial guesswork out of building your dream home.
- DETAILED COSTING: Detailed, data-backed estimates with +/-120 lines of costs / options for your project.
- EDITABLE COSTS: Edit the line-item labor & material price with the “Add/Deduct” field if you want to change a cost.
Home-Cost.com’s INSTANT™ Cost-To-Build Report also provides you these added features and capabilities:
Previous Q & A
Previous Questions and Answers
A: The dining & living room has a ceiling height of 13'.
Common Questions:
A: Yes you can! Please click the "Modifications" tab above to get more information.
A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
