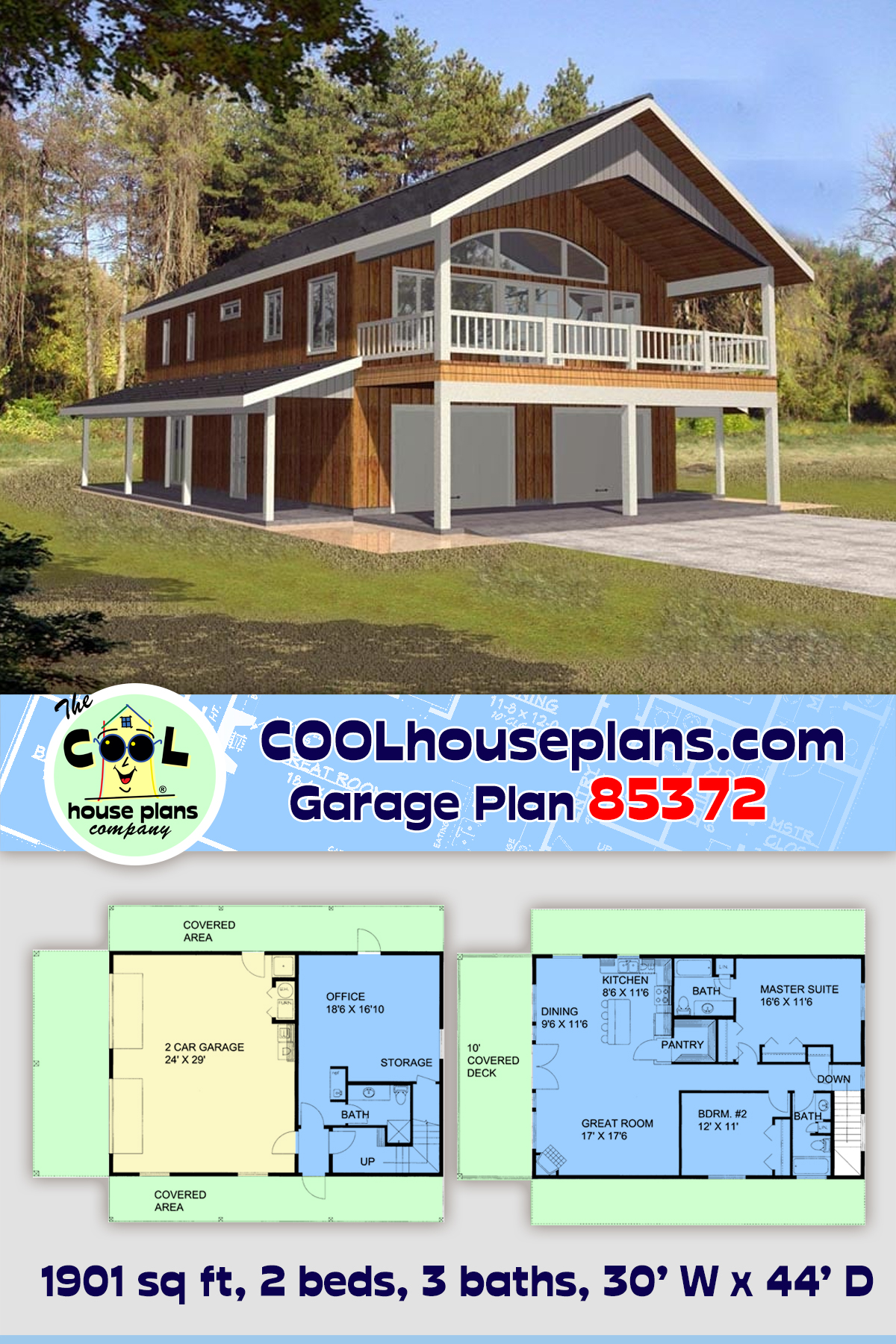

This is one of our most popular apartment over garage plans. Garage apartment plan 85372 at Family Home Plans has a two bedroom 1900 square foot living area above a spacious 24 X 29 parking area and a 300 sq ft office with 3\4 bath. The large covered deck is perfect for a lot with a view. A quick look at the floor plan and you will see why this spacious carriage house design is considered a mover and a shaker. The covered area outside the first floor will work great for a grill or stacking wood.
|Total Living Area:||1901 sq ft|
|Lower Living Area:||581 sq ft|
|Main Living Area:||1320 sq ft|
|Garage Area:||738 sq ft|
|Number of Stories:||2|
|Max Ridge Height:||30' from Front Door Floor Level|
|Primary Roof Pitch:||7:12|
|Porch:||843 sq ft|
|Main Ceiling Height:||8'6|
We are sorry, but an estimated cost build is not available for this particular plan.
A: Lower level bath: 8'-2" W X 5'-4" D (area with vanity) and 7'-8" D (area with toilet and shower) Master bath: 7'-10" W X 7'-8" D Main level hall bath: 5' W X 11' D
A: Hello, The 11'-6" dimension does not include the closets on the shared hallway wall. If those closets were to be removed, the depth of the master would be 13'-10". Thank you,
A: Pantry: 5'-6" X 5'-8" Master bath: 7'-10" X 7'-8" Yes, this design can be ordered from Canada.
A: The front half of this plan is designed with scissor trusses from the kitchen/master bath wall to the covered deck. The rear half of the plan uses flat bottom trusses. We provide cross sections that show the trusses but they will be detailed by your local truss manufacturer.
A: All of our drawings conform to the 2015 IRC (International Residential Code)
A: Any program that has the capability to open a .dwg or .dxf file can be used to view the plans. We draw in AutoCAD 2020, and save our drawings down to the 2004 version Thank you!
A: The size of the pantry is 7'-10" x 5'-8"
A: Hello, This plan calls out standing seam metal roofing or composition shingles, per owner.
A: From finished main floor to upper level plate height that is 17'-5"
A: Dimensions of both garage doors are 10'-0" wide by 7'-0" high A larger garage door is a possibility, however not readily available. Please fill out a modification request form to receive a quote for that or any additional changes you may need Thank you
A: Hello, The current height of the lower level garage area is at 8'-7" If you'd like to fill out a modification form, our designer would be more than happy to provide a quote for the changes you're needing Thank you!
A: TJI 360 (16") and TJI 210 (16"), and 2X10 DF #2 are called out on this plan.
A: Bathroom is not included in bedroom measurements of 16'-6"X11'-6". The master bathroom is 7'-10"W X 7'-8"D (depth includes bathtub and linen closet). The upstairs hall bath is 5'W X 11'D (depth includes bathtub). Downstairs bathroom is 8'-2"W X 5'-4"D in sink area and 7'-8"D in toilet/shower area.
A: Garage door height is 7', the plate height in the lower level is 8'-1" + an additional 6" step down from the living space is called out. So 8'-7" total in the garage.
A: Hello, We do not call out finishes, cabinets, or appliance specs for this plan. All of those items are per owner. Thank you, Amanda
A: There are no additional posts/poles in the garage, the back wall separating the office and garage is the bearing wall. The stair case is 3'-6" wide. We do call out for scissor trusses, or vaulted ceilings in kitchen and living area.
A: The width of the house is 30' and the depth is 44'. The covered areas on the sides of the house add 6' each. The porch area on the front of the house adds 10' to the depth.
A: This hallway is 3'-6".
A: Hello... It is to scale and when you order a set of plans we send you a scale/ruler with it :) Thank you!
A: We do not have a material list, we recommend you get it done locally due to variations in materials. The house is 2X6 construction.
A: The garage ceiling height is currently 8'-6", the plans will need modifications if a different ceiling height is desired.
A: hello... lose the upper windows and go to a 3 or 4/12 pitch... we can make it work :) 5 hours @ $75.00 + cost of the repro's or better. Thank you!
A: The garage doors are currently 7' high. Modifications can be made to raise lower level ceiling height and garage doors if needed.
A: yes it is vaulted from the deck to the back of the kitchen... all other plate heights upstairs are 8'-1"
A: 26' 9 1/2"
A: Please see plan 86568
A: not mechanical & Plumbing.... electrical & foundation included... Thank you!
A: 1901 heated
738 unheated garage area
Not on the right side but look at our plan # 86568
A: no, we always recommend that you get it done locally... due to variations of materials.
A: Yes you can! Please click the "Modifications" tab above to get more information.
A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
