Plan Number 86202

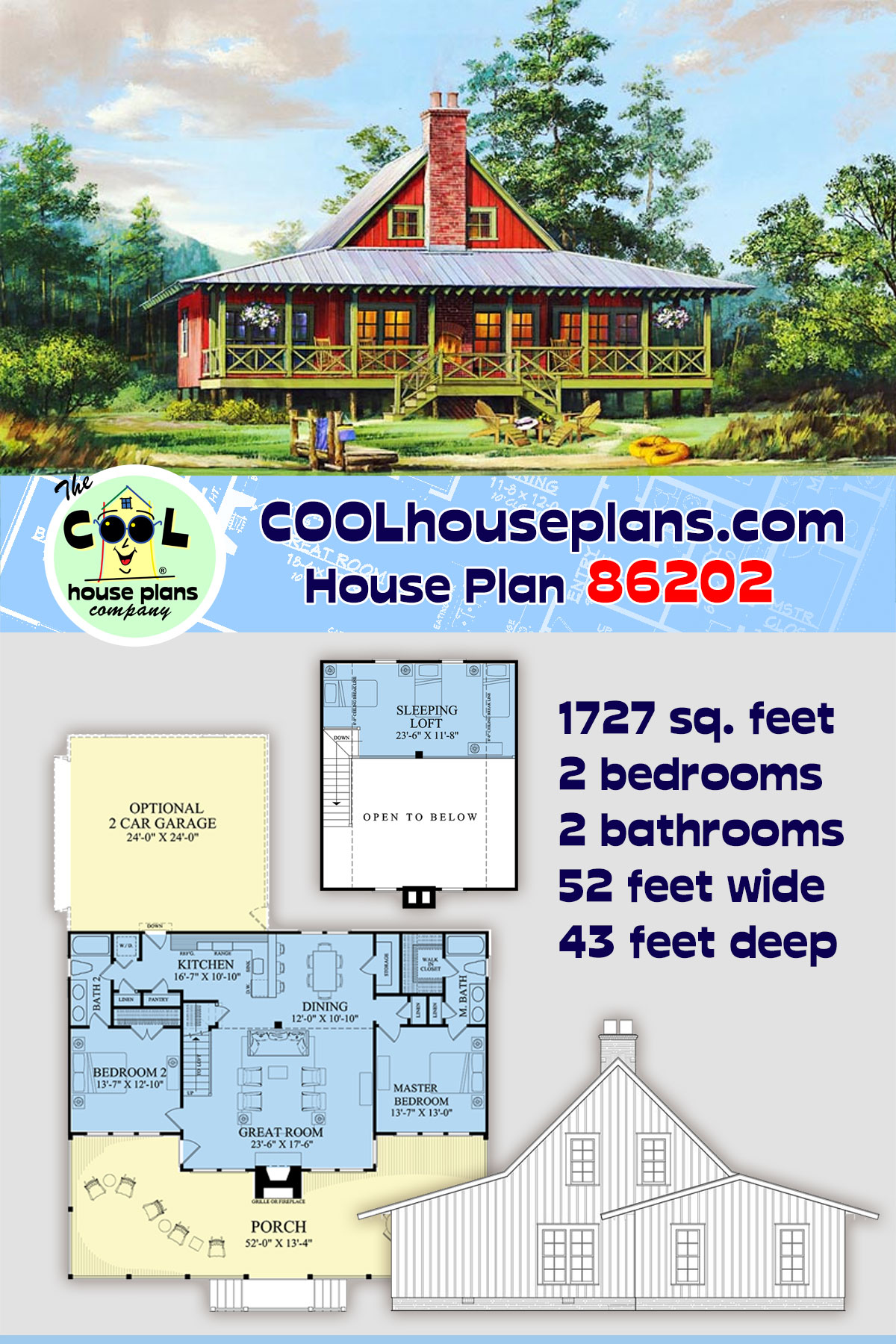

Southern Style House Plan 86202
1727 Sq Ft, 2 Bedrooms, 2 Full Baths, 2 Car Garage
Plan Description
Rustic Vacation Style House Plans
This fantastic rustic cabin design will make the perfect vacation home. Sitting riverside or on the lake, this floor plan with its deep front porch and fireplace, is where memories are made.
Quick Specs
1727 Total Living Area1437 Main Level
290 Upper Level
2 Bedrooms
2 Full Baths
2 Car Garage
52' W x 43'0 D
Quick Pricing
1 Set: $600.004 Sets: $700.00
8 Sets: $800.00
PDF File: $1,000.00
1-800-361-7526
Plan Specifications
Specifications
| Total Living Area: | 1727 sq ft |
| Main Living Area: | 1437 sq ft |
| Upper Living Area: | 290 sq ft |
| Garage Area: | 608 sq ft |
| Garage Type: | Attached |
| Garage Bays: | 2 |
| Foundation Types: | Crawlspace |
| Exterior Walls: | 2x4 |
| House Width: | 52' |
| House Depth: | 43'0 |
| Number of Stories: | 2 |
| Bedrooms: | 2 |
| Full Baths: | 2 |
| Max Ridge Height: | 29'6 from Front Door Floor Level |
| Primary Roof Pitch: | 0 |
| Roof Framing: | Stick |
| Porch: | 597 sq ft |
| FirePlace: | Yes |
| 1st Floor Master: | Yes |
| Main Ceiling Height: | 9' |
Special Features:
Plan Package Pricing
Pricing
** 1 Set order does not include a License-To-Build. For bidding purposes only. Customer can upgrade order within 90 days.Available Foundation Types:
Available Exterior Wall Types:
What's Included?
What is Included in this House Plan?
Rendering of Front ElevationFoundation Plan: Most plans include alternate basement plan.
Fully Dimensioned Floor Plan(s)
Schematic Electrical Plans
Section Through House
All Exterior Elevations
Selected Interior Elevations
Door and Window Sizes
Construction Details: Including fireplace, stair, molding and cabinet details
Roof Plan and Exterior Details
Plan Modifications
Want to make changes?
Receive a FREE modification estimate in one of 3 ways. Our modification team is ready to help you adjust any plan to fit your needs. The ReDesign process is simple and estimates are free!1. Complete this On-Line Request Form
2. Print, complete and fax this PDF Form to us at 1-800-675-4916.
3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.
Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.
We Work Fast!
When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!
We look forward to hearing from you!
Start today planning for tomorrow!
Cost To Build
QUICK-Cost-To-Build Estimate
View an actual, LIVE cost report. This report is for demo purposes only. Not plan specific.
$19.95 per plan
** Available for U.S. only.
QUICK Cost-To-Build estimates have the following assumptions:
QUICK Cost-To-Build estimates are available for single family, stick-built, detached, 1 story, 1.5 story and 2 story home plans with attached or detached garages, pitched roofs on flat to gently sloping sites.QUICK Cost-To-Build estimates are not available for specialty plans and construction such as garage / apartment, townhouse, multi-family, hillside, flat roof, concrete walls, log cabin, home additions, and other designs inconsistent with the assumptions outlined in Item 1 above.
User is able to select and have costs instantly calculate for slab on grade, crawlspace or full basement options.
User is able to select and have costs instantly calculate different quality levels of construction including Economy, Standard, Premium. View Quality Level Assumptions.
Estimate will dynamically adjust costs based on the home plan's finished square feet, porch, garage and bathrooms.
Estimate will dynamically adjust costs based on unique zip code for project location.
All home plans are based on the following design assumptions: 8 foot basement ceiling height, 9 foot first floor ceiling height, 8 foot second floor ceiling height (if used), gable roof; 2 dormers, average roof pitch is 12:12, 1 to 2 covered porches, porch construction on foundations.
Summarized cost report will provide approximately 70 lines of cost detail within the following home construction categories: Site Work, Foundations, Basement (if used), Exterior Shell, Special Spaces (Kitchen, Bathrooms, etc), Interior Construction, Elevators, Plumbing, Heating / AC, Electrical Systems, Appliances, Contractor Markup. View a LIVE Sample Cost Report.
QUICK Cost-To-Build generates estimates only. It is highly recommend that one employs a local builder in order to get a more accurate construction cost.
All costs are "installed costs" including material, labor and sales tax.
* Limit one $19.95 credit per complete plan package order.
** Available for U.S. only.
Previous Q & A
Previous Questions and Answers
A: Absolutely!
A: It is only available there with the garage option. If you purchase the plans, just ask for the version with this option. Thank you and have a wonderful day! Julie
A: It would be based on the code for the area.
A: That would cause the entire 2nd floor loft would be considerably smaller. And there is a possibility that the stairs may not even work.
A: Yes but it does slope on both sides due to the loft. And it does flatten out in the middle. It's actually 18'
A: At this time, we do not have any finished photos of the interior.
A: It's a vaulted open ceiling. They go straight up
A: They are 9 throughout the house and then 17' to the very top on the open to below area
A: 24 x 36
A: All plans and details are drawn at 1/4" scale or larger and include: designer's rendering of front elevation; foundation and dimensioned floor plans; electrical plans; section through house; all exterior elevations; selected interior elevations; door and window sizes; fireplace details; stair details; molding details; cabinet details; roof plan and exterior details. Most plans include alternate basement plans. Floor plans and elevations depicted are subject to minor changes. Floor plan dimensions on layout are approximate. Consult working drawings for actual dimensions and information. All total square footage figures represent heated square floor space only. They do not represent two-story vaulted spaces, garages, unfinished areas or basements.
A: Yes they do.
Common Questions:
A: Yes you can! Please click the "Modifications" tab above to get more information.
A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
