Plan Number 40823

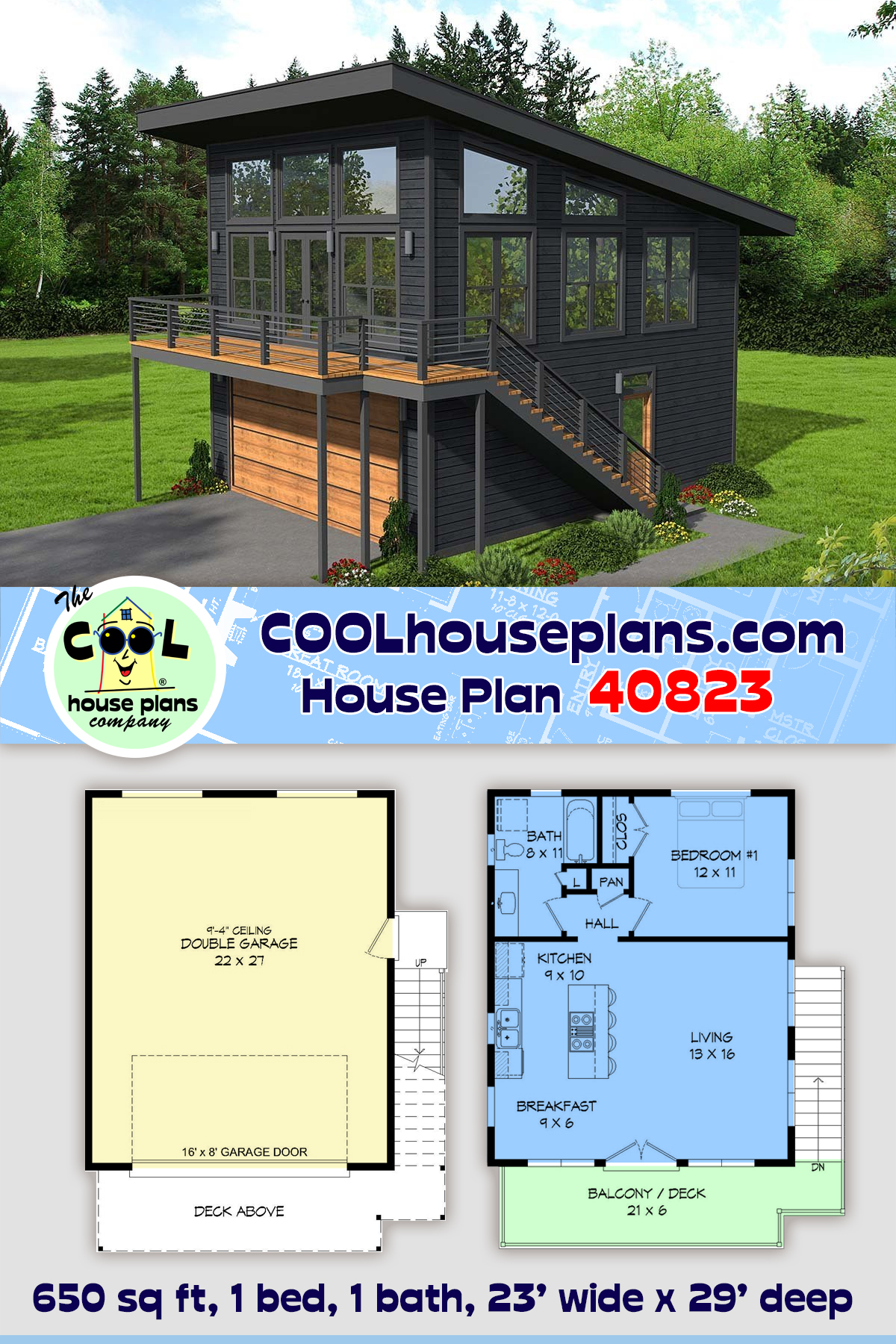

Modern Style Garage-Living Plan 40823
650 Sq Ft, 1 Bedrooms, 1 Full Baths, 2 Car Garage
Quick Specs
650 Total Living Area650 Main Level
1 Bedrooms
1 Full Baths
2 Car Garage
23'0 W x 28'3 D
Quick Pricing
PDF File: $1,113.005 Sets: $1,344.00
5 Sets plus PDF File: $1,393.00
CAD File: $1,533.00
Plan Specifications
Specifications
| Total Living Area: | 650 sq ft |
| Main Living Area: | 650 sq ft |
| Garage Area: | 650 sq ft |
| Garage Type: | Attached |
| Garage Bays: | 2 |
| Foundation Types: | Slab |
| Exterior Walls: | 2x6 |
| House Width: | 23'0 |
| House Depth: | 28'3 |
| Number of Stories: | 2 |
| Bedrooms: | 1 |
| Full Baths: | 1 |
| Max Ridge Height: | 24'10 from Front Door Floor Level |
| Primary Roof Pitch: | 2.5:12 |
| Roof Framing: | Stick |
| Porch: | 126 sq ft |
| Main Ceiling Height: | 9'4 |
| Vaulted Ceiling: | Yes |
Special Features:
Plan Package Pricing
Pricing
Materials List may take 3-5 weeks to fulfill depending on availability.Available Foundation Types:
Available Exterior Wall Types:
Prices subject to approval prior to fulfillment.What's Included?
What is Included in this House Plan?
Plans includea: Floor Plans: House plan drawings indicating dimensions for construction
b: Roof Plan: Drawings indicating roof slopes and unique conditions
c: Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish
d: Building Sections: Drawings cut through important locations in the structure
e: Construction Details: Drawings showing specific construction of building elements at a large scale
f: Kitchen and bath elevations
g: Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)
h: Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure CRAWLSPACE
Plans are sent in AutoCAD 2000 format
Plan Modifications
Want to make changes?
Receive a FREE modification estimate in one of 3 ways. Our modification team is ready to help you adjust any plan to fit your needs. The ReDesign process is simple and estimates are free!1. Complete this On-Line Request Form
2. Print, complete and fax this PDF Form to us at 1-800-675-4916.
3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.
Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.
We Work Fast!
When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!
We look forward to hearing from you!
Start today planning for tomorrow!
Cost To Build
Cost to Build Estimate
We are sorry, but an estimated cost build report is not available for this particular plan.
Previous Q & A
Previous Questions and Answers
A: Sloped from 7’-0” to 12’-6” Yes
A: 37'
A: Please tell me the max elevation height from the top of highest point of the roof to the finished grade. in front of the garage door? 24’-10” What is the interior height of the 2nd floor living space at the front and at the rear? 7’-0” vaulted to 12’-6” what is the slope of the roof? 2.5:12
A: 90lbs.
A: The plans are set up to print at scale on 18x24 paper. If you choose to use a larger paper, you need to select the option to print “Actual Size” so the at it remains at full scale on the larger paper. Be aware that the larger paper will have a lot of white space or margin.
A: Depth 28’3 + 6’ deck Width 23’0 + 3’6 stair
A: 25 pound snow load.
A: Your CAD file plans will be emailed to you in CAD and PDF format and WILL INCLUDE: a) Floor Plans: Floor plan drawings indicating dimensions for construction b) Roof Plan: Drawings indicating roof slopes and unique conditions c) Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim d) Building Sections: Drawings cut through important locations in the structure e) Construction Details: Drawings showing specific construction of building elements at a large scale f) Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets) g) Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure h) A building license: A single-use license for construction at one location only (NOTE: If design is to be used at subsequent locations, a discounted re-use license is required and available upon request.) Additional notes about engineering and building codes: Our plans are designed to meet national building codes. We do not guarantee they will meet all local building requirements or building codes influenced by local geographic or climactic factors. It is the responsibility of the owner or builder to ensure these plans comply with city, county, municipal and/or state/provincial building codes. Additionally, your plans will not be sealed or stamped by an engineer or architect. It is the owner’s (or builder’s) responsibility to hire a local professional to review and seal or stamp the plans if required by the building department. This must be handled by an engineer or architect licensed in the state/province where the plan is to be built.
A: Yes, we can change the garage level ceiling height, or reduce the roof slope a tad. Either modification would be $250 and require 2-3 wk lead time
Common Questions:
A: Yes you can! Please click the "Modifications" tab above to get more information.
A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
