1/4" scale fully dimensioned Foundation/ Basement Plan Basement plan also includes "future finish" Recreation Room, 1 or 2 Bedrooms, Bathroom and Storage area's.

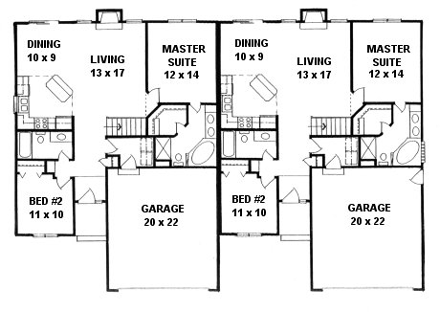

1/4" scale fully dimensioned Floor Plan In order to simplify construction, We use the most comprehensive dimensioning method in the industry.
1/4" scale Front, Side and Rear Elevations 1/4 inch scale elevations all the way around clarifies construction and can be used for Model building templates as well.
Roof plan An eighth-inch scale "Birds-eye" view of the roof helps to simplify construction by showing all the valleys, hips, ridges etc.
Electrical Shown right on the floor plan indicates locations for switches and outlets (and no we don't slack on kitchen outlets).
Kitchen Cabinet Details, Wall section, Stair and Fireplace Details All drawn 1/2" scale provide easy viewing of the specific areas.
Want to make changes?
Receive a FREE modification estimate in one of 3 ways. Our modification team is ready to help you adjust any plan to fit your needs. The ReDesign process is simple and estimates are free!
2. Print, complete and fax this PDF Form to us at 1-800-675-4916.
3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.
Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.
We Work Fast!
When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!
We look forward to hearing from you!
Start today planning for tomorrow!
Cost To Build
Cost to Build Estimate
We are sorry, but an estimated cost build report is not available for this particular plan.
Previous Q & A
Previous Questions and Answers
Q:Where would furnace/hot water heater be located if no basement?
A:Typically the contractor relocates the mechanical equipment for slab or crawlspace foundations, usually they just put them in the garage. Some plans including this one, the stairway can made into a mechanical closet with access from the utility room (a little extra space there could go into the MBR walk-in closet).
Date Posted: 28-Feb-18
Q:Because our property is in a subdivision that does not allow duplexes (10 acres) we were told that if there was no firewall between two units and the plans would say "single family" that we could build it on our property. This is for an elderly brother and sister. Is it possible to get plans with no firewall and have them state single family house plans?
A:Yes, the firewall can be removed and the plan re-dimensioned to reflect and be labeled as a single family home however, I would highly recommend that city/county officials are aware and approve of these changes before purchasing the plans.
The changes would add $50 to the cost of the plans and take 1-3 business days to complete the work from the time of order.
Date Posted: 03-Mar-17
Q:Dimensions of master closet?
How long is the wall the separates the living room and master bedroom?
A:MBR Closet is 6’-2” x 7’-8” inside
Wall between MBR/Living is about 12’ before the angle.
Date Posted: 09-Mar-15
Q:Can I make modifications to this plan?
A:Yes you can! Please click the "Modifications" tab above to get more information.
Q:What is the estimated price to build this plan?
A:The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
