Ranch Style House Plan 80523

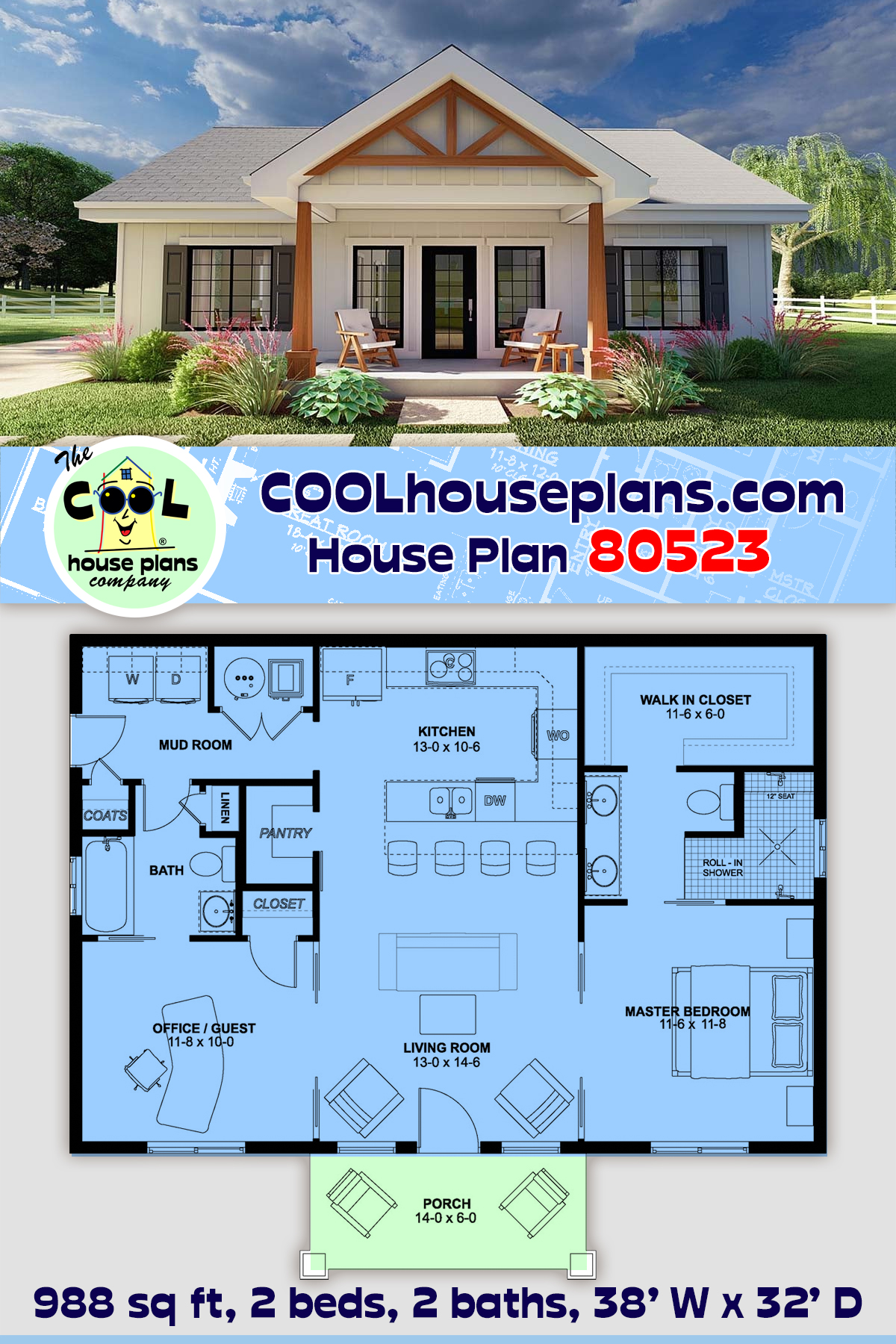

A: The height of the building from the bottom of the front door to the ridge of the roof is 18'-9" or if measuring from average grade to the ridge of the roof it is 19'-5" (20'-5" for the crawlspace version). The width of the house is 38'-0" and the depth of the house is 26'-0" not including the front porch. The overall building dimensions including the 14'x6' front porch are 38'-0" wide and 32'-0" deep.

A: "The alternate master bath layout is always included in the plans as a detail shown beside the main floor plan."

A: Good afternoon, Yes, the plan set includes header, beam and footing sizes. The plan is designed with a truss layout for the roof framing so there will be no sizing on the plan for rafters and ridge boards. Thank you!

A: Good afternoon, Please see the attached floorplan showing the staircase location for the basement version of plan no.80523. Please note that the depth of the house increases 2 feet for a total of 1,064 sq.ft.

A: Good morning, If the 2x6 exterior wall is deducted from the square footage (actual depth of 2x6 stud is 5.5 inches) then this will reduce the square footage to 930 sq.ft. Please note that this applies to either the crawlspace or slab foundation versions of the plan. We can add this note to the plans if requested on the order. Thank you!

A: Goodmorning, The position of some of the interior walls will need to be adjusted to accommodate 36" doors throughout the house. Here are the current door dimensions for plan #80523: Front Porch Entry 3'-0" Mudroom Entry 2'-6" Bedrooms 5'-0" Main Bathroom and Closet 2'-6" Guest Bathroom and Closet 2'-4" Pantry 2'-0" Coat & Linen Closet 1'-6"

A: Goodmorning, This plan has a trussed roof system and the plans show a 9 foot ceiling height. A vaulted ceiling in the living room can be created by using scissor trusses for that section of the roof and the height at the center of the vault would be 13' 1-1/2". ** If the customer would like us to update the plans to show scissor trusses then the modification fee is $75 (100% to designer) and the timeframe is 1 week.** Thank you!

A: The open concept does not leave a lot of full wall space You could suspend a TV from the wall above any window or door and the TV will be in front of the window or door OR instead of the open concept on either the MBR or Den you could put a regular door that would create a wall for a large TV This would also create a wall on the other side of either the Den or MBR

A: That is a wall oven (either microwave or regular ) at the side. The plan shows a countertop range If you want you can do a stove instead at either location instead of separating them. Or you can have both a full stove and additional wall oven at the side.

A: Goodmorning, Here are the finished dimensions for the master bedrooms and bathrooms: Master bedroom 11'-6" x 12'-0" Master bathroom 11'-6" x 6'-8" Master closet 11'-6" x 6'-0" Guest bedroom 11'-8" x 10'-0" Guest closet 3'-7" x 2'-3" Guest bathroom 7'-9" x 5'-0" not including linen closet area

A: The square footage is calculated from exterior wall to exterior wall. The house (not including the front porch) is 38 feet wide x 26 feet deep which is a total of 988 sq.ft. Also, the dimensions shown inside each room are the finished room size.

A: Please see the attached floorplan of the staircase location for the basement version of Plan Number: 80523. The depth of the house increases 1 foot for a new total of 1,026 sq.ft. The draw time for the basement option is 8-10 business days. The finished basement layout will include a rec room, two bedrooms and a full bathroom. If it is a walkout basement, the walkout doors will be at the front of the house under the living room/bedrooms and the covered porch will become a covered deck. Please let me know if you have any other questions. Have a great afternoon!

A: Yes you can! Please click the "Modifications" tab above to get more information.
