Plan 100163 Order Code: C101
Traditional Style Misc Plan 100163
587 Sq Ft
Thumbnails: ON | OFF
Quick Specs
587 Total Living Area587 Main Level
154 Bonus Area
31'0 W x 20'0 D
Quick Pricing
PDF File: $575.00
Plan Specifications
Specifications
| Total Living Area: | 587 sq ft |

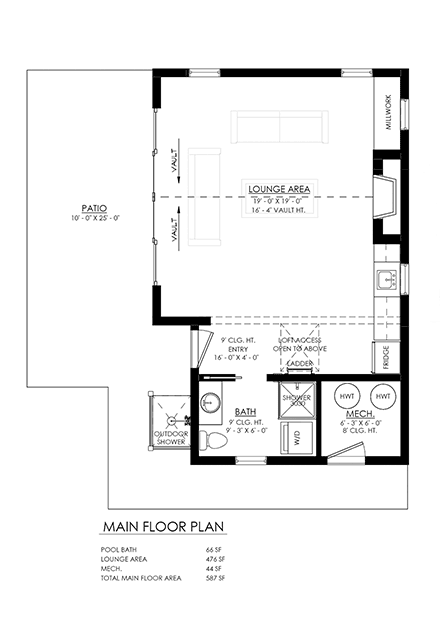

| Main Living Area: | 587 sq ft |

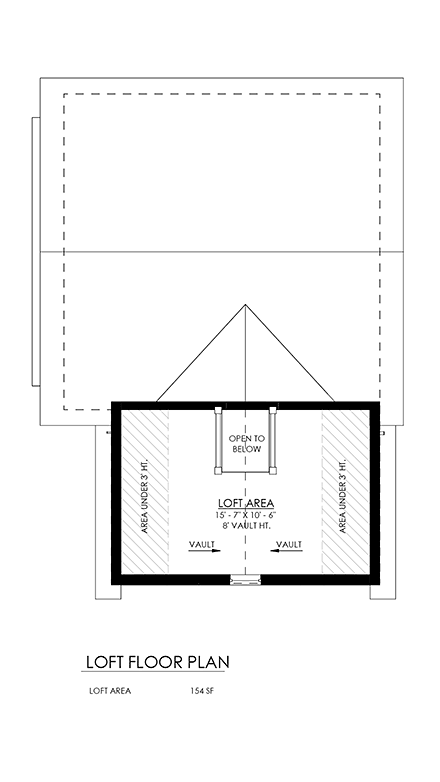

| Bonus Area: | 154 sq ft |
| Garage Type: | None |
| Foundation Types: | Slab |
| Exterior Walls: | 2x6 |
| House Width: | 31'0 |
| House Depth: | 20'0 |
| Number of Stories: | 1 |
| Full Baths: | 1 |
| Max Ridge Height: | 22'0 from Front Door Floor Level |
| Primary Roof Pitch: | 10:12 |
| Roof Framing: | Truss and/or Stick |
| FirePlace: | Yes |
| Main Ceiling Height: | 8' |
| Upper Ceiling Height: | 10' |
| Vaulted Ceiling: | Yes |
Special Features:
Plan Package Pricing
Pricing
Need Printed Sets?
It seems that this plan only offers electronic (PDF or CAD) files. If you also need Printed Sets, please call 1-800-482-0464, x403 to discuss possible options.Available Foundation Types:
Available Exterior Wall Types:
Prices subject to approval prior to fulfillment.What's Included?
What is Included in this House Plan?
What is INCLUDED in the plans:
Foundation Plan - Footing sizes, slab thickness, floor framing sizes/direction, etc.
Floor Plan(s) - Detailed dimensions, window/door details, plumbing fixture type/locations, etc. for each level of the home.
Roof Plan - Roof framing sizes/layout, roof pitch, attic venting, overhangs, roof finish materials, etc.
Exterior Elevations - Views of the front, rear, and sides of home detailing exterior finish work.
Building Sections - Overall section of the build to capture ceiling heights, drops, roof profiles, etc.
Details - Dissected drawings of foundation/footings, floor framing, door framing, window framing, roof framing, roof venting, etc.
What is NOT INCLUDED in the plans:
Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Plumbing plans
Electrical plans
Mechanical Drawings (location of heating and air equipment and duct work)
- your subcontractors handle this
Framing layouts - with beam sizes and locations
Material lists
Renderings, photography, or marketing imagery
Energy calculations - handled locally when required
Building Code
Because of the wide range of requirements throughout states and municipalities, it is possible that the plans may not have all the information required by your building department.
If this is the case, we recommend hiring a local design professional or engineer who can assist bringing the plans up to your local building code.
Engineering
Some states require that a licensed architect or engineer review and stamp the plans. If this is the case where you will be building, a local professional will be able to assist you.
Plan Modifications
Want to make changes?
Plan modification is a way of turning a stock plan into your unique custom plan. It's still just a small fraction of the price you would pay to create a home plan from scratch. You will receive a FREE, no obligation, modification estimate to get exactly the home plan you've been dreaming of. Simply contact the modification department 1 of 3 ways:Call 866-465-5866 and talk to a live person that can give you and FREE modification estimate over the phone!
Email Us - Please Include your telephone number, plan number, foundation type, state you are building in and a specific list of changes.
Fax: 651-602-5050 - Make sure to include a cover sheet with your contact info. Make attention to the COOLhouseplans.com Modification Department.
Cost To Build
What will it cost to build your new home?
Let us help you find out!
Accurate. Fast. Trusted.
Construction Cost Estimates That Save You Time and Money.
$29.95 per plan
** Available for U.S. and Canada
With your 30-day online cost-to-build estimate you can start enjoying these benefits today.
- INSTANT RESULTS: Immediate turnaround—no need to wait days for a cost report.
- RELIABLE: Gain peace of mind and confidence that comes with a reliable cost estimate for your custom home.
- INTERACTIVE: Instantly see how costs change as you vary design options and quality levels of materials!
- REDUCE RISK: Minimize potential cost overruns by becoming empowered to make smart design decisions. Get estimates that save thousands in costly errors.
- PEACE OF MIND: Take the financial guesswork out of building your dream home.
- DETAILED COSTING: Detailed, data-backed estimates with +/-120 lines of costs / options for your project.
- EDITABLE COSTS: Edit the line-item labor & material price with the “Add/Deduct” field if you want to change a cost.
Home-Cost.com’s INSTANT™ Cost-To-Build Report also provides you these added features and capabilities:
Previous Q & A
Common Questions:
Q: Can I make modifications to this plan?
A: Yes you can! Please click the "Modifications" tab above to get more information.
Q: What is the estimated price to build this plan?
A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
Our Low Price Guarantee
If you find the exact same plan featured on a competitor's web site at a lower price, advertised OR special SALE price, we will beat the competitor's price by 5% of the total, not just 5% of the difference! To take advantage of our guarantee, please call us at 800-482-0464 or email us the website and plan number when you are ready to order. Our guarantee extends up to 4 weeks after your purchase, so you know you can buy now with confidence.
