Plan 40919 Order Code: C101

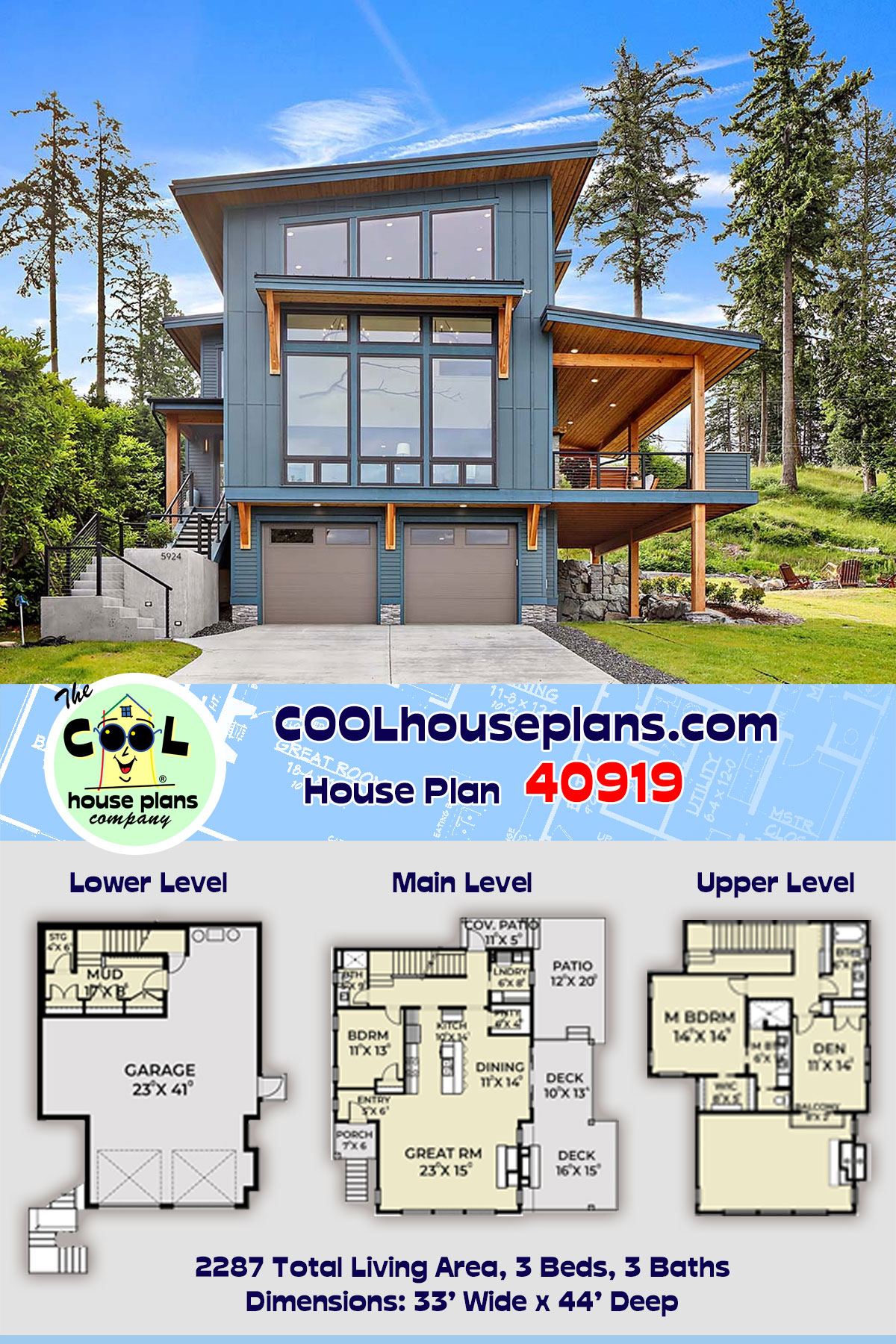

Modern Style House Plan 40919
2287 Sq Ft, 3 Bedrooms, 3 Full Baths, 2 Car Garage
Quick Specs
2287 Total Living Area225 Lower Level
1317 Main Level
745 Upper Level
3 Bedrooms
3 Full Baths
2 Car Garage
33'0 W x 44'0 D
Quick Pricing
PDF Study Set: $875.00PDF File: $1,750.00
5 Sets plus PDF File: $2,200.00
CAD File: $2,250.00
Plan Specifications
Specifications
| Total Living Area: | 2287 sq ft |
| Lower Living Area: | 225 sq ft |
| Main Living Area: | 1317 sq ft |
| Upper Living Area: | 745 sq ft |
| Garage Area: | 996 sq ft |
| Garage Type: | Attached |
| Garage Bays: | 2 |
| Foundation Types: | Basement |
| Exterior Walls: | 2x6 |
| House Width: | 33'0 |
| House Depth: | 44'0 |
| Number of Stories: | 2 |
| Bedrooms: | 3 |
| Full Baths: | 3 |
| Max Ridge Height: | 34'11 from Front Door Floor Level |
| Primary Roof Pitch: | 1.5:12 |
| Roof Load: | 25 psf |
| Roof Framing: | Stick |
| Porch: | 42 sq ft |
| FirePlace: | Yes |
| Main Ceiling Height: | 9' |
| Upper Ceiling Height: | 9' |
Special Features:
Plan Package Pricing
Pricing
Available Foundation Types:
Available Exterior Wall Types:
Prices subject to approval prior to fulfillment.What's Included?
What is Included in this House Plan?
Four Exterior Elevations Main Floor Plan Second Level Floor Plan – if applicable Basement Floor Plan – if Applicable Bonus Floor Plan – if Applicable Building Sections Typical Wall Detail Foundation Plan and Details Second Floor Framing Plan – if Applicable Roof Framing Plan Electrical PlanPlan Modifications
Want to make changes?
Receive a FREE modification estimate in one of 3 ways. Our modification team is ready to help you adjust any plan to fit your needs. The ReDesign process is simple and estimates are free!1. Complete this On-Line Request Form
2. Print, complete and fax this PDF Form to us at 1-800-675-4916.
3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.
Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.
We Work Fast!
When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!
We look forward to hearing from you!
Start today planning for tomorrow!
Cost To Build
QUICK-Cost-To-Build Estimate
View an actual, LIVE cost report. This report is for demo purposes only. Not plan specific.
$24.95 per plan
** Available for U.S. only.
QUICK Cost-To-Build estimates have the following assumptions:
QUICK Cost-To-Build estimates are available for single family, stick-built, detached, 1 story, 1.5 story and 2 story home plans with attached or detached garages, pitched roofs on flat to gently sloping sites.QUICK Cost-To-Build estimates are not available for specialty plans and construction such as garage / apartment, townhouse, multi-family, hillside, flat roof, concrete walls, log cabin, home additions, and other designs inconsistent with the assumptions outlined in Item 1 above.
User is able to select and have costs instantly calculate for slab on grade, crawlspace or full basement options.
User is able to select and have costs instantly calculate different quality levels of construction including Economy, Standard, Premium. View Quality Level Assumptions.
Estimate will dynamically adjust costs based on the home plan's finished square feet, porch, garage and bathrooms.
Estimate will dynamically adjust costs based on unique zip code for project location.
All home plans are based on the following design assumptions: 8 foot basement ceiling height, 9 foot first floor ceiling height, 8 foot second floor ceiling height (if used), gable roof; 2 dormers, average roof pitch is 12:12, 1 to 2 covered porches, porch construction on foundations.
Summarized cost report will provide approximately 70 lines of cost detail within the following home construction categories: Site Work, Foundations, Basement (if used), Exterior Shell, Special Spaces (Kitchen, Bathrooms, etc), Interior Construction, Elevators, Plumbing, Heating / AC, Electrical Systems, Appliances, Contractor Markup. View a LIVE Sample Cost Report.
QUICK Cost-To-Build generates estimates only. It is highly recommend that one employs a local builder in order to get a more accurate construction cost.
All costs are "installed costs" including material, labor and sales tax.
* Limit one $24.95 credit per complete plan package order.
** Available for U.S. only.
Previous Q & A
Previous Questions and Answers
A: They are included in the CAD purchase.
A: The height measurement for this home is 34’ 11 5/8”. The garage doors each have a height of 8’ and width of 9’.
A: Hello, The siding material is Hardieplank and the soffit is a stained cedar.
A: Hello, This plan comes with all those things! Thanks,
A: Hello, The size of the garage doors is 9’x8’ and there is 2’ of wall between both door openings.
A: Hello, This plan can work with some adjustments to a few of the details. It will be tough for me to say exactly what will need to be modified without getting some additional details, such as a typographical map of the site. It almost seems like the best thing to do would be to find a local structural engineer that could help them get all the details dialed in. Thanks,
A: Garage floor to highest point: 35’-0”
A: Hello, The ceiling height is 9’. Thanks!
A: There is an electrical plan provided that lays out lighting.
A: That information isn’t provided and we actually aren’t involved in the selection of those finishes. Please let me know if they have any other questions.
A: Hello, Here’s what’s included: Four Exterior Elevations Main Floor Plan Second Level Floor Plan – if applicable Basement Floor Plan – if Applicable Bonus Floor Plan – if Applicable Building Sections Typical Wall Detail Foundation Plan and Details Second Floor Framing Plan – if Applicable Roof Framing Plan Electrical Plan The PDF file is included with the purchase of the CAD file!
A: Hello, We have 11 7/8” 210 TJI Rafters @ 24” O.C. called out. The footing depths are called out as 8”. Thanks!
A: Yes, 24x36 @ ¼” scale!
A: Hello, They are very detailed. We include electrical, foundation and a wall cut but just not a plumbing plan. Thank you, Emily
A: The top is hardy plank board and batten siding and the other portion is hardy plank horizontal at about a 6 inch exposure.
Common Questions:
A: Yes you can! Please click the "Modifications" tab above to get more information.
A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
