Plan 45131 Order Code: C101

3 Car Garage Plan 45131

Name: 3 Car Garage Plan Number 45131
Brand: COOL house plans
SKU: 45131
Price: 490.0000 USD
Availability: InStock

Thumbnails: ON | OFF

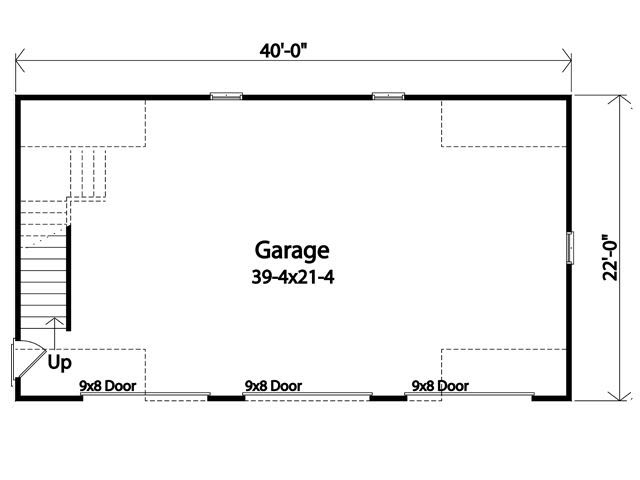

3 Car Garage Plan 45131 First Level Plan

3 Car Garage Plan 45131 Second Level Plan

Quick Specs

3 Car Garage
40' W x 22' D

Quick Pricing

PDF File: $490.00
CAD File: $590.00

Add to cart Save Plan Tell A Friend Ask A Question

Plan Specifications

Specifications

Garage Type:	Detached
Garage Bays:	3
Foundation Types:	Stem Wall Slab
Exterior Walls:	2x4 2x6 - * $75.00
House Width:	40'
House Depth:	22'
Number of Stories:	2
Max Ridge Height:	25'3 from Front Door Floor Level
Primary Roof Pitch:	12:12
Roof Framing:	Truss
Main Ceiling Height:	9'
Upper Ceiling Height:	8'

* May require additional drawing time.

Plan Package Pricing

Pricing

PDF File: $490.00
CAD File: $590.00
Single Build License issued on CAD File orders.
Materials List: $70.00
Right Reading (True) Reverse: $75.00
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.

Need Printed Sets?

It seems that this plan only offers electronic (PDF or CAD) files. If you also need Printed Sets, please call 1-800-482-0464, x403 to discuss possible options.

The PDF file will also be included with the purchase of the CAD file.

Available Foundation Types:

Stem Wall Slab : No Additional Fee

Available Exterior Wall Types:

2x4: No Additional Fee
2x6: $75.00
(Please call for drawing time.)

Prices subject to approval prior to fulfillment.

Shipping Policy

Add to cart

What's Included?

What is Included in this House Plan?

These blueprints will include building specifications, foundation plan, floor plans, exterior elevations, electrical plans, interior cabinet elevations, wall sections and stair details. Some of the larger plans will have additional details.

All plans have been drawn to meet the requirements of the national building codes. Your builder will be able to determine if minor modifications may need to be made to the plans to meet the local building code requirements including any subdivision requirements.

Plan Modifications

Want to make changes?

Receive a FREE modification estimate in one of 3 ways. Our modification team is ready to help you adjust any plan to fit your needs. The ReDesign process is simple and estimates are free!

1. Complete this On-Line Request Form

2. Print, complete and fax this PDF Form to us at 1-800-675-4916.

3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.

Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.

We Work Fast!

When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!

We look forward to hearing from you!

Start today planning for tomorrow!

Cost To Build

What will it cost to build your new home?
Let us help you find out!

COOLhouseplans.com has partnered with Home-Cost.com to provide you the most accurate, interactive online estimator available. Home-Cost.com is a proven leader in residential cost estimating software for over 20 years.
No Risk Offer: Order your Home-Cost Estimate now for just $29.95! We will provide you with a discount code in your receipt for when you decide to order any plan on our website than will more than pay you back for ordering an estimate.

Accurate. Fast. Trusted.
Construction Cost Estimates That Save You Time and Money.

$29.95 per plan

** Available for U.S. and Canada

With your 30-day online cost-to-build estimate you can start enjoying these benefits today.

INSTANT RESULTS: Immediate turnaround—no need to wait days for a cost report.
RELIABLE: Gain peace of mind and confidence that comes with a reliable cost estimate for your custom home.
INTERACTIVE: Instantly see how costs change as you vary design options and quality levels of materials!
REDUCE RISK: Minimize potential cost overruns by becoming empowered to make smart design decisions. Get estimates that save thousands in costly errors.
PEACE OF MIND: Take the financial guesswork out of building your dream home.
DETAILED COSTING: Detailed, data-backed estimates with +/-120 lines of costs / options for your project.
EDITABLE COSTS: Edit the line-item labor & material price with the “Add/Deduct” field if you want to change a cost.

View Sample Report

View Feature List

Home-Cost.com’s INSTANT™ Cost-To-Build Report also provides you these added features and capabilities:

Accurate cost database of 43,000 zip codes (US & Canada)
Print cost reports or export to Excel®
General Contractor or Owner-Builder contracting
Estimate 1, 1½, 2 and 3-story home designs
Slab, crawlspace, basement or walkout basement
Foundation depth / excavation costs based on zip code
Cost impact of bonus rooms and open-to-below space
Pitched roof or flat roof homes
Drive-under and attached garages
Garage living – accessory dwelling unit (ADU) homes
Duplex multi-family homes
Barndominium / Farmdominium homes
RV grages and Barndos with oversized overhead doors
Costs adjust based on ceiling height of home or garage
Exterior wall options: wood, metal stud, block
Roofing options: asphalt, metal, wood, tile, slate
Siding options: vinyl, cement fiber, stucco, brick, metal
Appliances range from economy to commercial grade
Multiple kitchen & bath counter / cabinet selections
Countertop options range from laminate to stone
HVAC, fireplace, plumbing and electrical systems
Fire suppression / sprinkler system
Elevators

Previous Q & A

Previous Questions and Answers

Q: I am interested in purchasing garage plan 45131. I just had a question about the second floor and on the layout it has “sloped ceiling” in the 4 corners. Are you able to tell me the height of that slope? Specifically where the slope is at the top of the stairs. Concerned about the height there of hitting your head on the ceiling going/up down the stairs.

A: Good afternoon, The short walls on the second floor are 6’-8” tall (the same height as a typical door) and the ceiling slopes up to eight feet. There is not a head room issue above the stairs.

Date Posted: 26-Oct-23

Q: Good day Due to small modifications I need to make to the plan 45131 I would like to order CAD file of this plan and would like to know if I can get AutoCAD dwg format in version that is compatible with my AutoCAD 2009. I would also like to know if your material list is in the form of the Excel spreadsheet and if is linked with the drawings by using the Data Extraction wizard. Thank you for our assistance.

A: The CAD file will be a .DWG file and you should be able to open it. The material list is not in a spread sheet tied to the program.

Date Posted: 24-Jul-15

Common Questions:

Q: Can I make modifications to this plan?

A: Yes you can! Please click the "Modifications" tab above to get more information.

Q: What is the estimated price to build this plan?

A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
