Traditional Ranch House Plan #74845 has 3 Beds, 2 Baths, 2 Car Garage and a Small Workshop

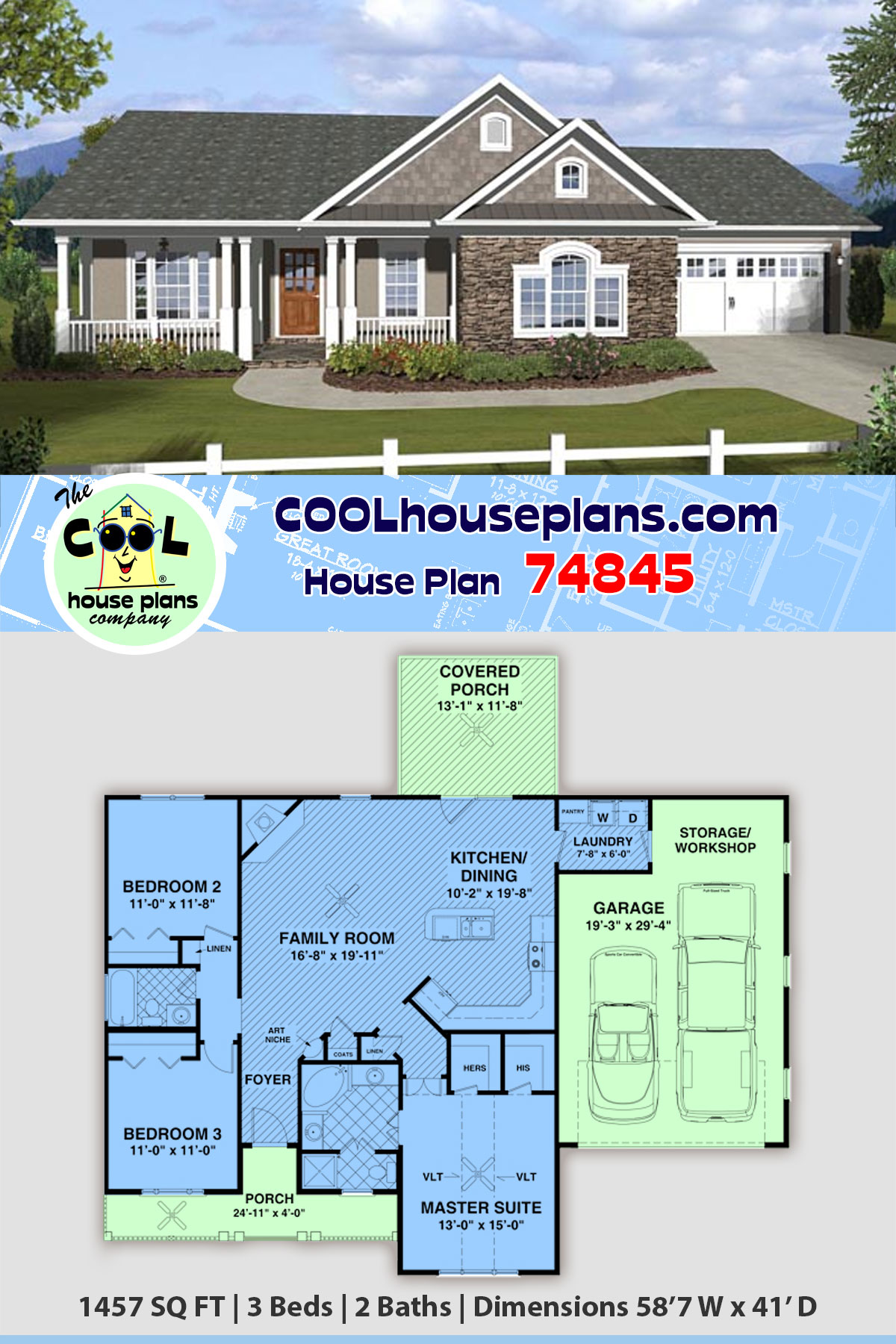

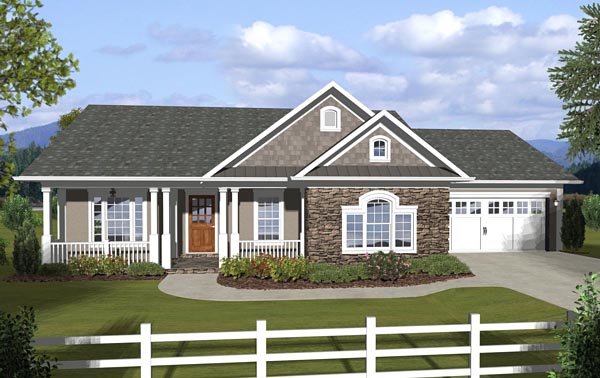

This charming 1,457 sq. ft. three-bedroom ranch home plan features a 2-car garage with storage/work area. The kitchen is entered through the laundry room with features a pantry for storage. The open floor plan of this home is perfect for entertaining. The family room is accented by a corner fireplace and a vaulted ceiling. An art niche blends the welcoming foyer into the living area. A 150 sq ft covered porch in the back is perfect for grilling
1457 Total Living Area 1457 Main Level 3 Bedrooms 2 Full Baths 2 Car Garage 58'7 W x 41'0 D
Foundation Plans: include drawings for a standard, daylight or partial basement, crawlspace, pier, or slab foundation. All necessary notations and dimensions are included. (Foundation options will vary for each plan. If the home you want does not have the type of foundation you desire, contact us to discuss having that plan created.)
Detailed Floor Plans: show the placement of interior walls and the dimensions for rooms, doors, windows, stairways, etc., of each level of the house. In some cases, the door and window dimensions and/or stair details may be on a separate page.
Exterior Elevations: show the front, rear and sides of the house, including exterior materials, details and measurements.
Wall Sections and/or Cross Sections: show details of the house as though it were cut in slices from the roof to the foundation. The cross sections specify the home's construction, insulation, flooring and roofing details.
Roof Details: show slope, pitch and location of dormers, gables and other roof elements, including clerestory windows and skylights. These details may be shown on the elevation sheet or on a s eparate diagram. Note: If trusses are used, we suggest using a local truss manufacturer to design your trusses to comply with your local codes and regulations.
Standard Construction Details: various details related to beam support, floor construction, connections, and roofing options.
The following may also be included:
Interior Elevations: show the specific details of cabinets (kitchen, bathroom, and utility room), fireplaces, built-in units, and other special interior features, depending on the nature and complexity of the item. Note: To save money and to accommodate your own style and taste, we suggest contacting local cabinet and fireplace distributors for sizes and styles.
Schematic Electrical Layouts: show the suggested locations for switches, fixtures and outlets. These details may be shown on the floor plan or on a separate diagram.
Want to make changes?
Receive a FREE modification estimate in one of 3 ways. Our modification team is ready to help you adjust any plan to fit your needs. The ReDesign process is simple and estimates are free!
QUICK Cost-To-Build estimates have the following assumptions:
QUICK Cost-To-Build estimates are available for single family, stick-built, detached, 1 story, 1.5 story and 2 story home plans with attached or detached garages, pitched roofs on flat to gently sloping sites.
QUICK Cost-To-Build estimates are not available for specialty plans and construction such as garage / apartment, townhouse, multi-family, hillside, flat roof, concrete walls, log cabin, home additions, and other designs inconsistent with the assumptions outlined in Item 1 above.
User is able to select and have costs instantly calculate for slab on grade, crawlspace or full basement options.
User is able to select and have costs instantly calculate different quality levels of construction including Economy, Standard, Premium. View Quality Level Assumptions.
Estimate will dynamically adjust costs based on the home plan's finished square feet, porch, garage and bathrooms.
Estimate will dynamically adjust costs based on unique zip code for project location.
All home plans are based on the following design assumptions: 8 foot basement ceiling height, 9 foot first floor ceiling height, 8 foot second floor ceiling height (if used), gable roof; 2 dormers, average roof pitch is 12:12, 1 to 2 covered porches, porch construction on foundations.
Summarized cost report will provide approximately 70 lines of cost detail within the following home construction categories: Site Work, Foundations, Basement (if used), Exterior Shell, Special Spaces (Kitchen, Bathrooms, etc), Interior Construction, Elevators, Plumbing, Heating / AC, Electrical Systems, Appliances, Contractor Markup. View a LIVE Sample Cost Report.
QUICK Cost-To-Build generates estimates only. It is highly recommend that one employs a local builder in order to get a more accurate construction cost.
All costs are "installed costs" including material, labor and sales tax.
* Limit one $29.95 credit per complete plan package order.
** Available for U.S. only.
Previous Q & A
Previous Questions and Answers
Q:how tall are the windows in front
A:5’-2” nominal size
Date Posted: 11-Sep-20
Q:1. So there is no kitchen pantry?
2. Is there vaults in the kitchen/ dining area and the great room?
3. Why is this plan so expensive?
4. Are plans included for a full basement with a walkout?
A:No pantry. Yes, great room and kitchen/dining are vaulted. A basement option is available.
Date Posted: 16-Jun-20
Q:The 4" brick ledge on foundation plan, can it be removed from print? Or is that just something I tell the foundation guy to ignore. For i am finishing with vinyl siding throughout. Thanks!
A:The stone ledge can easily be ignored in the field if they are not applying the stone.
Date Posted: 27-Nov-19
Q:How large is the shower stall in the master bathroom?
A:Mstr. shower stall is 36x36
Date Posted: 30-Jul-19
Q:what the total square footage of house under the roof
A:Total under roof is 2,284 sq.ft.
Date Posted: 28-Feb-19
Q:How was wondering how the joists would be arranged with a full basement?
A:Design has I-joists for the floor system and they run front to back.
Date Posted: 21-Jan-19
Q:What is the ceiling height in the living room?
A:Standard plate height/clg is 8ft. The family room and kitchen however have a cathedral vault that peaks at 11’-4”+/-
Date Posted: 21-Jan-19
Q:Where do the furnace and water heater go?
A:Either out in the garage or in the attic for the crawl or slab options.
Date Posted: 24-Jul-17
Q:The picture shows a siding and stone exterior. I want a stone façade body for the entire exterior of the home with siding only on peaks, does this require a modification? Thank you.
A:The stone doesn’t require support if stone will be a cultured stone vs. stacked stone. If full stacked stone is used, a support ledge is needed at the foundation – similar to brick. This could also be done in the field if need be. But it does change the foundations dimensions, causing a greater opportunity for errors.
Date Posted: 20-Jul-17
Q:Can I make modifications to this plan?
A:Yes you can! Please click the "Modifications" tab above to get more information.
Q:What is the estimated price to build this plan?
A:The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
