Plan 100502 Order Code: C101
Traditional Style Misc Plan 100502
Thumbnails: ON | OFF
Quick Specs
17'0" W x 16'0" DQuick Pricing
PDF File: $395.00
Plan Specifications
Specifications
| Garage Area: | 272 sq ft |
| Garage Type: | N/A or Unknown |
| Foundation Types: | Slab |
| Exterior Walls: | 2x6 |
| House Width: | 17'0" |
| House Depth: | 16'0" |
| Number of Stories: | 1 |
| Max Ridge Height: | 14'2" from Front Door Floor Level |
| Primary Roof Pitch: | 8:12 |
| Roof Framing: | Stick |
| Main Ceiling Height: | 8' |
Plan Package Pricing
Pricing
Need Printed Sets?
It seems that this plan only offers electronic (PDF or CAD) files. If you also need Printed Sets, please call 1-800-482-0464, x403 to discuss possible options.Available Foundation Types:
Available Exterior Wall Types:
Prices subject to approval prior to fulfillment.What's Included?
What is Included in this House Plan?
What is INCLUDED in the plans:
Foundation Plan - Footing sizes, slab thickness, floor framing sizes/direction, etc.

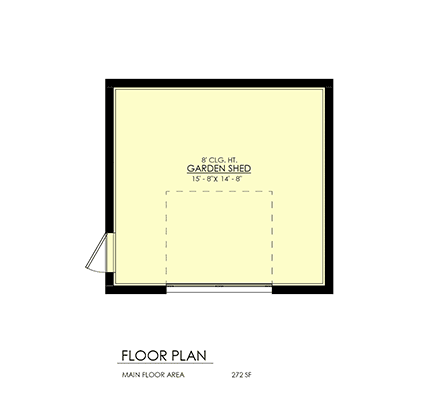

Floor Plan(s) - Detailed dimensions, window/door details, plumbing fixture type/locations, etc. for each level of the home.
Roof Plan - Roof framing sizes/layout, roof pitch, attic venting, overhangs, roof finish materials, etc.
Exterior Elevations - Views of the front, rear, and sides of home detailing exterior finish work.
Building Sections - Overall section of the build to capture ceiling heights, drops, roof profiles, etc.
Details - Dissected drawings of foundation/footings, floor framing, door framing, window framing, roof framing, roof venting, etc.
What is NOT INCLUDED in the plans:
Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Plumbing plans
Electrical plans
Mechanical Drawings (location of heating and air equipment and duct work)
- your subcontractors handle this
Framing layouts - with beam sizes and locations
Material lists
Renderings, photography, or marketing imagery
Energy calculations - handled locally when required
Building Code
Because of the wide range of requirements throughout states and municipalities, it is possible that the plans may not have all the information required by your building department.
If this is the case, we recommend hiring a local design professional or engineer who can assist bringing the plans up to your local building code.
Engineering
Some states require that a licensed architect or engineer review and stamp the plans. If this is the case where you will be building, a local professional will be able to assist you.
Plan Modifications
Want to make changes?
Plan modification is a way of turning a stock plan into your unique custom plan. It's still just a small fraction of the price you would pay to create a home plan from scratch. You will receive a FREE, no obligation, modification estimate to get exactly the home plan you've been dreaming of. Simply contact the modification department 1 of 3 ways:Call 866-465-5866 and talk to a live person that can give you and FREE modification estimate over the phone!
Email Us - Please Include your telephone number, plan number, foundation type, state you are building in and a specific list of changes.
Fax: 651-602-5050 - Make sure to include a cover sheet with your contact info. Make attention to the COOLhouseplans.com Modification Department.
Previous Q & A
Common Questions:
Q: Can I make modifications to this plan?
A: Yes you can! Please click the "Modifications" tab above to get more information.
Q: What is the estimated price to build this plan?
A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
